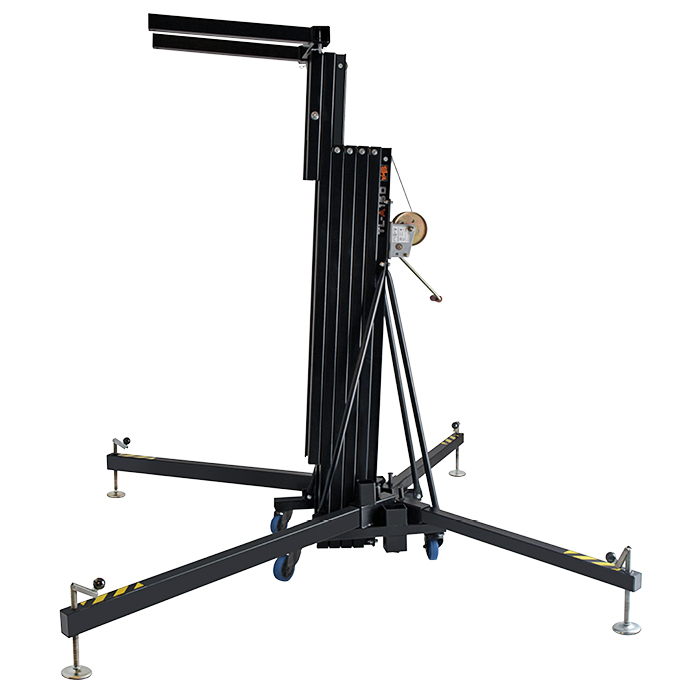

5.3m/150kg Line Array Towerlift – Black
Description
Lifter made with structural steel for the base and 6082-T6 aluminum alloy for the sections. Designed to lift loads from the ground, and keep them at high altitudes. This lifting tower is very compact and easy to handle, it has 4 swivel wheels at the base. It has powerful stabilizers in the legs, to level the lifter in difficult terrains, with slight slope. Black finish, with epoxy powder paint to the oven, which offers great resistance (The towerlift can be painted in the desired color, under prior request).
It has two adjustable steel load forks that support the load, either supported on top of it, or hung underneath.
The TL-A150 features the inertial pendulum ILS safety system. It also has the special SRS Retentor system, patented by VMB, which guarantees that the towerlift will raise the aluminum sections orderly, and most important: automatically.
It has two adjustable steel load forks that support the load, either supported on top of it, or hung underneath.
The TL-A150 features the inertial pendulum ILS safety system. It also has the special SRS Retentor system, patented by VMB, which guarantees that the towerlift will raise the aluminum sections orderly, and most important: automatically.
Description
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Maximum Height | 5.3m (17.4’) |
| Maximum Load | 150kg (331lb) |
| Safety | ILS (Inertia-Lock) |
| Working Surface | 1.7 x 1.85m (5.6 x 6.1’) |

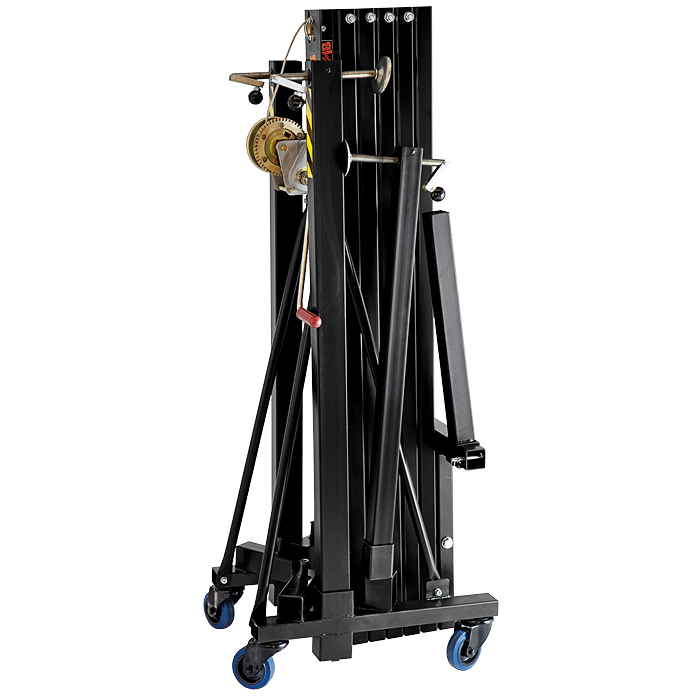

| Folded Height | 1.54m (5’) |
| Winch | 450kg |
| Adaptor | 500mm Forks included |
| Weight | 107kg (236lb) |
| Title | Type | Size | |
|---|---|---|---|
|
TL-A150 5.3m/150kg Line Array Towerlift BGV-C1 Certificate | application/pdf | 108 KB |
|
|
TL-A150 5.3m/150kg Line Array Towerlift Operating Instructions User Manual | application/pdf | 5 MB |
