8.2m/400kg Line Array Towerlift – Black

Description

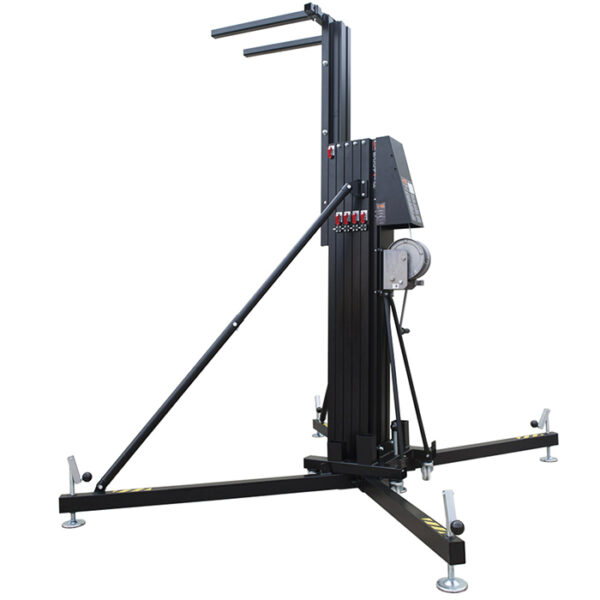

The TL-A400/8 towerlift has been designed for lifting line array audio systems from the ground and keep them fix at high altitude. It has 2 special aluminum straps fixed from the legs to the aluminum base section to reinforced the body of the lifter. This lifting tower is very compact and easy to handle, equipped with 4 swivel wheels at the base. It has powerful stabilizers in the legs, to level the lifter in difficult terrains, with slight slope. Black finish, with epoxy powder paint to the oven, which offers great resistance. It has two adjustable steel load forks that support the load, either supported on top of it, or hung underneath.

The TL-A400/8 features the ALS Red locks of VMB, which automatically blocks each section while lifting. And the inertial pendulum ILS safety system for the aluminum lifting carriage. It also has the special SRS Retentor system, patented by VMB, which guarantees that the towerlift will raise the aluminum sections orderly and automatically.
Weight of the packed product (kg)

Description

TECHNICAL SPECIFICATIONS
Maximum Height8.2m (26.9’)
Maximum Load400kg (881.9lb)
SafetyALS (Auto Lock Security)
Work Surface2.57 x 2.1m (8.4 x 7’)
Folded Height1.98m (6.5’)
Winch1,200kg winch plus
Adaptor Forks750mm Line Array reinforced Forks included
Weight230kg (507lb)
Title Type Size
TL-A400/8 8.2m/400kg Line Array Towerlift BGV-C1 Certificate application/pdf 113 KB
TL-A400/8 8.2m/400kg Line Array Towerlift Operating Instructions User Manual application/pdf 5 MB
