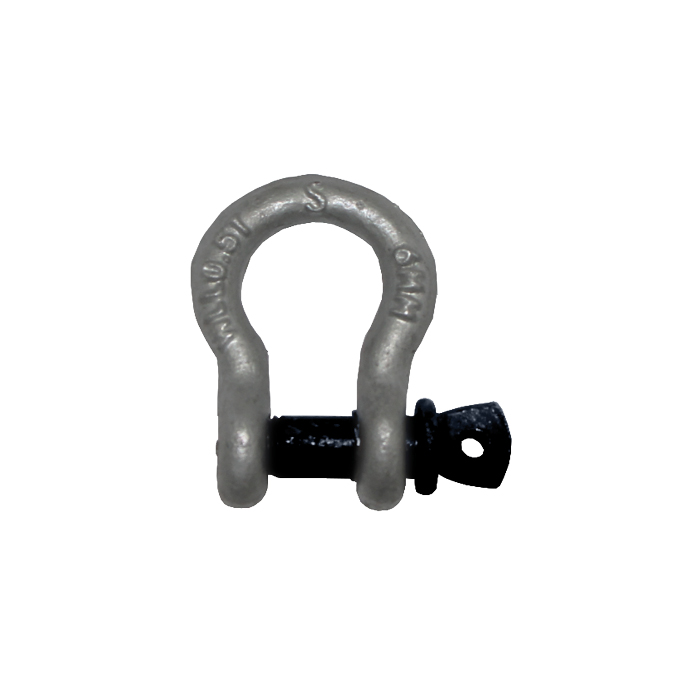

0.5T Screw Pin Bow Shackle, BTS Alloy Grade ‘S/6’
SKU: GB-RIG-0.5TBS0.5T Screw Pin Bow Shackle, BTS Alloy Grade ‘S/6’
Features:
• Heavy-duty shackle
• Galvanised steel
• Includes mounting bracket
• Dimensions: 29mmL x 8mmD x 12mmW x 20mmB
• Weight: 0.6 tonnes
Product: GB-RIG-0.5TBS
Categories: Shackles, Rigging Hardware
Tags: Truss Circle, globaltruss, GB RIG-0.5TBS, Truss Tube, Truss Hinge, Cosmic Truss, 0-5S T, Lighting Tube, rigging, Prolyte, Circus Truss, Alloy Truss, Custom Truss Box Truss, rigging hardware, Aluminium Truss, Tri Truss, lighting truss, rig, Steel Truss, Triangular Truss, truss, shackle, Concert Truss, Flat Truss, global truss, spanset, AV Truss, Ladder Truss, stage truss, stage shackles, Truss Grid, Theatre Truss, alutruss, shackles, Lighting Grid, Touring Truss, square truss, stage slings, Lighting Bar
Description
TECHNICAL SPECIFICATIONS | ||||||
---|---|---|---|---|---|---|
Nominal Size d (mm) | D (mm) | w (mm) | B (mm) | L (mm) | e (mm) | WLL (tonnes) |
6 | 8 | 12 | 20 | 29 | 16 | 0.5 |
