Sentinel

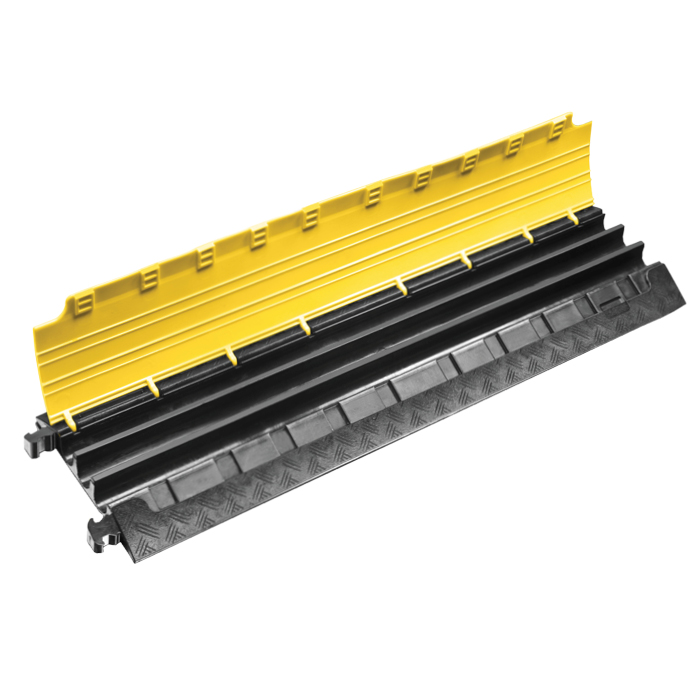

Defender Mini 3 Channel Cable Crossover

SKU: SD-M85200

3 small cable channels – light and robust
The Defender® MINI cable crossovers are also available with either a black or yellow lid and are suitable for indoor and outdoor use. The flat, compact, 3-channel cable crossover with integrated connector plugs and non-slip base provides optimum support on a wide variety of floors. Separately available end ramps (male/female) ensure safe and orderly insertion and removal of cables. Defender MINI cable crossovers withstand a load of 2 tonnes on an area of 20 x 20 cm, so they are suitable for light vehicles, trolleys and pedestrians. Defender MINI cable crossovers can be used at carnival events, trade shows, exhibitions, shopping centres and storage facilities as well as in theatres, studios and TV stations. Not suitable for road traffic.

• Compact, non-slip cable protector made of black, recyclable polyurethane
• Yellow polyethylene lid with high warning effect and secure closure
• Patented, self-cleaning lid hinge

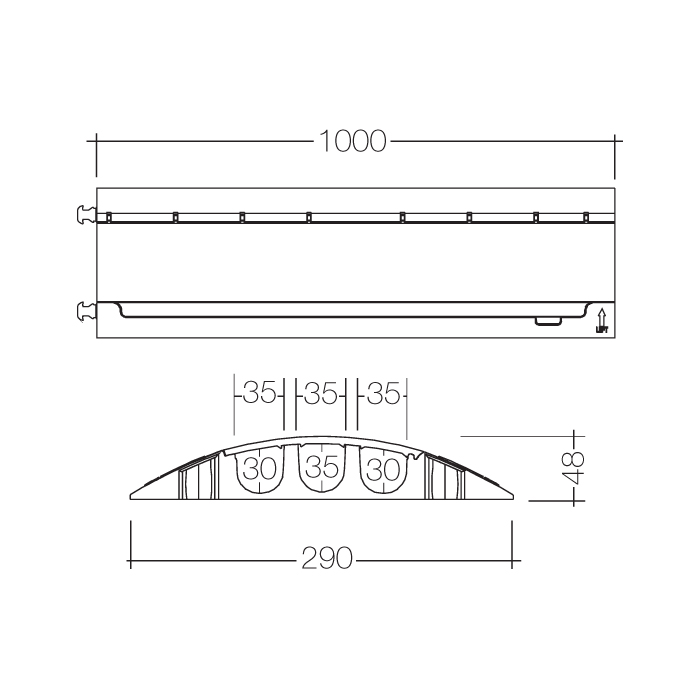

3 channels: 1 channel 35 x 35 mm, 2 channels 35 x 30 mm
• Load bearing capacity approx. 2t / 20 x 20 cm
• Fire resistance class B2 (DIN 4102)
• Resistant to oil, acids, solvents, and petrol
• Dimensions 100 x 29 x 4.8 cm; Weight 5 kg
• Reliable protection for cables and personnel for indoor and outdoor use
• Not suitable for vehicular traffic
• End ramps for secure cable inlet and exit as accessories

✔ HIGH TECH RAW MATERIAL
All Sentinel cable crossovers are made of extremely sturdy, unbreakable TPU (thermoplastic polyurethane), produced from recycled and new plastic materials. They feature a B2 fire resistance rating and are resistant to oil, acids and petrol. The operating temperature range is approximately -30°C to +60°C. The Shore A hardness range is 88 ± 4.

✔ PATENTED SELF CLEANING HINGE

✔ EASY LOCK SYSTEM
Sentinel cable protectors feature a very easy and efficient opening and locking system, allowing you to open and close the lid without tooling or special efforts. This exclusive feature also guarantees that the lid remains closed at all times, even when cars or trucks cross over it.

✔ EASY HANDLING
The heaviest Sentinel cable protection systems are equipped with transport handles (Defender XXL, Defender III and Defender Midi). The Defender Box provides safe and practical storage but also a logistically efficient solution for the transport of many protectors at once (euro-pallet dimensions).

✔ MODULAR SYSTEM
The Sentinel cable protection systems also offer high quality accessories to adapt your configuration to each new location, such as end ramps, 90° and 45° bends. Each cable protector has connectors and corresponding sockets that enable you to connect cable protectors in the same series endlessly with one another with maximum stability.
