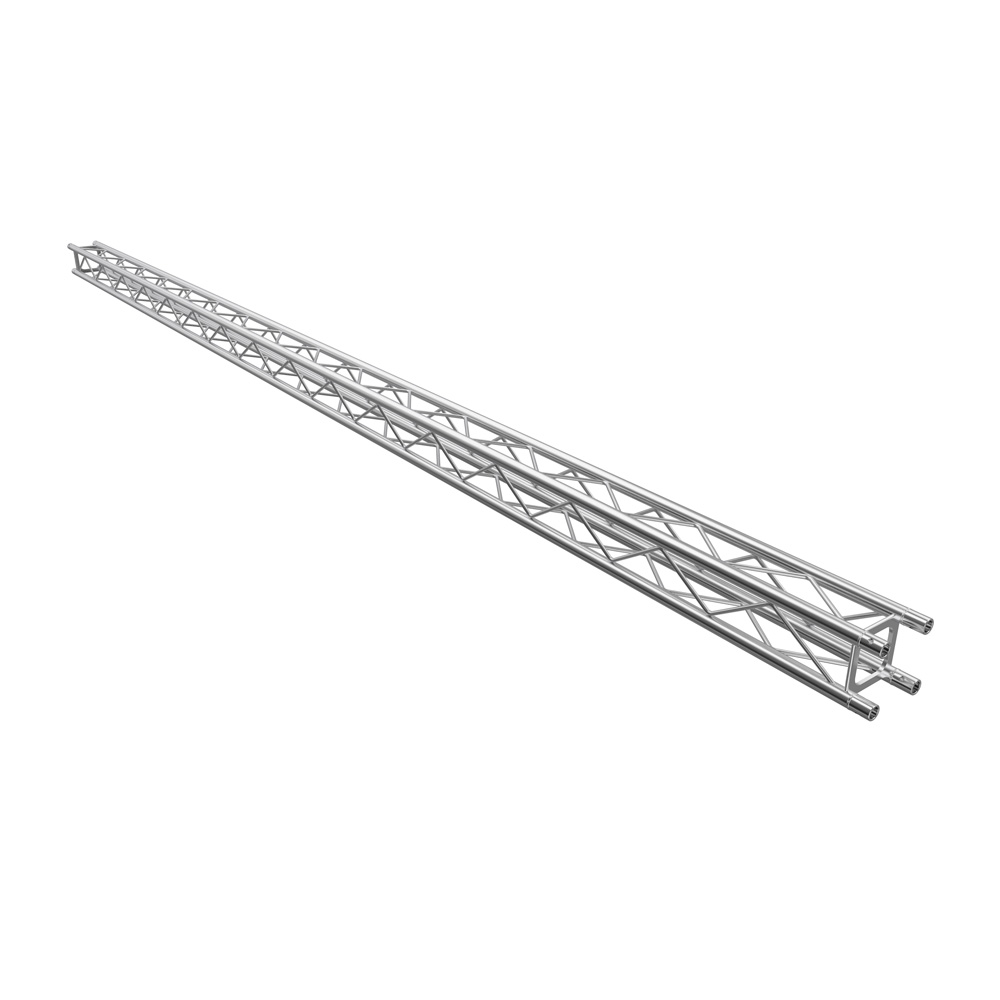

F14 Square 3.0m Linear Truss with Spigots, Pins & R-Clips
SKU: GT-F14L300F14 Tiny Truss is the smallest of the Global Truss family at only 100mm x 100mm with 20mmø chords.
Predominantly used for decorative purposes such as retail displays, museum exhibits, and wedding decoration displays, the “scaled-down” F14 Truss is dainty in appearance whilst still fulfilling a very light duty structural purpose. The square truss is available in straight lengths, circular components and a cube junction, enabling the construction of straight runs, rectangles, circles and arches.
In addition, tiny 20mmø couplers are available to attach items to the chords. Custom components can be designed by the DQ team and made to order.
Product: GT-F14L300
Categories: F14 Tiny Truss, F14 Tiny Truss Straight Lengths, Global Truss
Tags: Concert Truss, entertainment production, stage lighting trusses, Min Square Truss, Flat Truss, global truss for sale, truss plate, Couplers, phantos, AV Truss, entertainment rigging, stage truss design, 100 Truss, Ladder Truss, global truss pinnex, truss structures, globaltruss, DNA truss, pre-rig truss, Truss Grid, entertainment rigging australia, stage truss manufacturers, Box Truss 100 Mini, lighting truss, Theatre Truss, light truss, when is a rigger required, Cosmic Truss, Stage clamps, production, Lighting Grid, entertainment rigging companies, stage truss systems, truss, Space Frame, lighting clamps, Prolyte, Truss Australia, rigger course, Lighting Bar, event rigging, stage trusses, F14-0m, global truss, Touring Truss, lighting trigger clamps, Bolt Truss, audio brisbane, rigging, Truss Tube, global truss accessories, store dj, stage truss, PRT, lighting truss australia, 300mm Truss, box truss design, stage design, Lighting Tube, global truss australia, theatre rigging, alutruss, Truss Circle, lighting truss dj, Plus Truss, design quintessence, stage light trusses, Circus Truss, global truss catalog, titanav, GT F14L300, stage lighting truss, Truss Hinge, lighting truss parts, Alloy Truss, dj city, stage lighting mounting bars, Custom Truss Box Truss, global truss distributor, titanav truss, square truss, Tent Truss, lighting truss system price list, box global truss, Aluminium Truss, dq, stage lighting rig, Tiny Truss, Tri Truss, global truss f34 load data, truss coupler clamp, global truss clamps, 50mm truss clamp, lighting truss with lights, box global, Steel Truss, entertainment lighting, stage lighting truss design, Mini Box Truss, Triangular Truss, global truss f44, truss lighting systems, stage lighting truss systems, Clamps, lighting trusses
Global Truss Manual
DownloadF14 Tiny Square Truss Information Sheet
DownloadF14 Square Truss Load Table & TÜV Engineering Certificate
DownloadDescription
SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|
2.0 | 172 | 104 |
3.0 | 113 | 69 |
4.0 | 84 | 42 |
5.0 | 65 | 26 |
6.0 | 53 | 18 |
7.0 | 43 | 12 |
Title | Type | Size | |
---|---|---|---|
F14-TINY-TRUSS_1 | application/pdf | 997 KB |
Additional information
Chord Material | |
---|---|
Endsocketmaterial | |
Bracing Material | |
Conical Spigot Material | |
Steelpinmaterial | |
Chord Dimension | |
Bracing Dimensions | |
Connectors Included | |
External Length (mm) | |
External Depth (mm) | |
External Height (mm) | |
Pack Length | |
Pack Depth | |
Pack Height | |
Net weight of the product (kg) | |
Pack Weight | |
Cubic volume (m³) | |
Product Type | Linear |
