F23 Tri 0.5m Linear Truss with Spigots, Pins & R-Clips

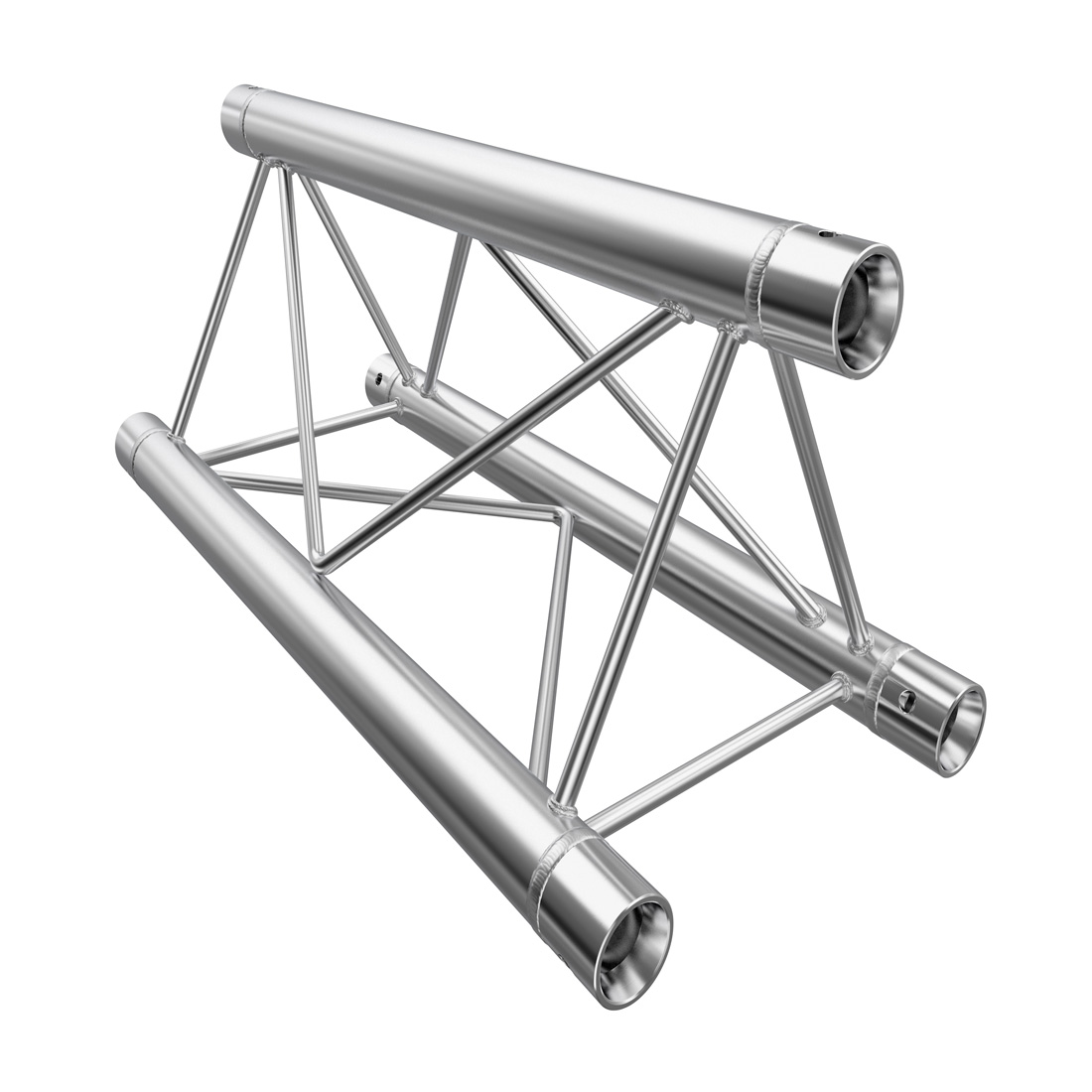

SKU: GT-F23L050F23 Triangular Mini Truss is a light-duty truss with an outside dimension of 220mm and 35mmø chords. This Truss is appropriate where light-duty structural capacity is necessary, but space is limited.
F23 Tri Truss has a more subtle aesthetic than larger Trusses. It is ideal for retail displays, museum exhibits, trade fairs and exhibitions, signage and banners, pubs, clubs and restaurants. The availability of a wide range of straight lengths, radials and junctions gives you the ability to build an enormous range of shapes and forms using F23 Tri Truss.
A range of 35mmø clamping accessories complements the Truss components. Custom components can be designed by the DQ team and made to order.
Product: GT-F23L050
Categories: F23 Mini Tri Truss, F23 Mini Tri Truss Straight Lengths, Global Truss
Tags: design quintessence, stage light trusses, 220 Triangular Truss, Steel Truss, global truss catalog, titanav, Triangular Truss, lighting truss parts, stage lighting truss systems, dj city, stage lighting mounting bars, FD23, Concert Truss, global truss distributor, titanav truss, Flat Truss, lighting truss system price list, dq, stage lighting rig, E20D, AV Truss, global truss f34 load data, truss coupler clamp, Ladder Truss, 50mm truss clamp, lighting truss with lights, globaltruss, entertainment lighting, stage lighting truss design, Tri Truss 220, Truss Grid, global truss f44, truss lighting systems, lighting truss, Theatre Truss, Clamps, lighting trusses, Cosmic Truss, entertainment production, stage lighting trusses, Lighting Grid, global truss for sale, truss plate, truss, Space Frame, Couplers, phantos, Prolyte, entertainment rigging, stage truss design, Lighting Bar, global truss pinnex, truss structures, global truss, Touring Truss, DNA truss, pre-rig truss, Bolt Truss, entertainment rigging australia, stage truss manufacturers, GT F23L050, Truss Tube, light truss, when is a rigger required, stage truss, PRT, Stage clamps, production, 300mm Truss, entertainment rigging companies, stage truss systems, F23-5m, Lighting Tube, lighting clamps, alutruss, Truss Circle, Truss Australia, rigger course, Plus Truss, event rigging, stage trusses, Circus Truss, lighting trigger clamps, stage lighting truss, Truss Hinge, audio brisbane, rigging, Alloy Truss, global truss accessories, store dj, Custom Truss Box Truss, lighting truss australia, square truss, Tent Truss, box truss design, stage design, 220 Tri Truss, Aluminium Truss, global truss australia, theatre rigging, Tri Truss, lighting truss dj, global truss clamps
Global Truss Manual
DownloadF23 Mini Tri Truss Information Sheet
DownloadF23 Tri Truss Load Tables & TÜV Engineering Certificate
DownloadDescription
SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|
2.0 | 129 | 65 |
3.0 | 127 | 42 |
4.0 | 124 | 31 |
5.0 | 121 | 24 |
6.0 | 118 | 20 |
7.0 | 100 | 17 |
8.0 | 86 | 14 |
9.0 | 74 | 12 |
10.0 | 65 | 11 |
Title | Type | Size | |
---|---|---|---|
F23-MINI-TRI-TRUSS_1 | application/pdf | 1,005 KB |
Additional information
Chord Material | |
---|---|
Endsocketmaterial | |
Bracing Material | |
Conical Spigot Material | |
Steelpinmaterial | |
Chord Dimension | |
Bracing Dimensions | |
Connectors Included | |
External Length (mm) | |
External Depth (mm) | |
External Height (mm) | |
Pack Length | |
Pack Depth | |
Pack Height | |
Net weight of the product (kg) | |
Pack Weight | |
Cubic volume (m³) | |
Product Type | Linear |
