F35 0.5m 5-Chord Square Linear Truss with Spigots, Pins & R-Clips

F35 0.5m 5-Chord Square Linear Truss with Spigots, Pins & R-Clips

Name: F35 0.5m 5-Chord Square Linear Truss with Spigots, Pins &amp; R-Clips
SKU: GT-F35L050
Availability: InStock

SKU: GT-F35L050

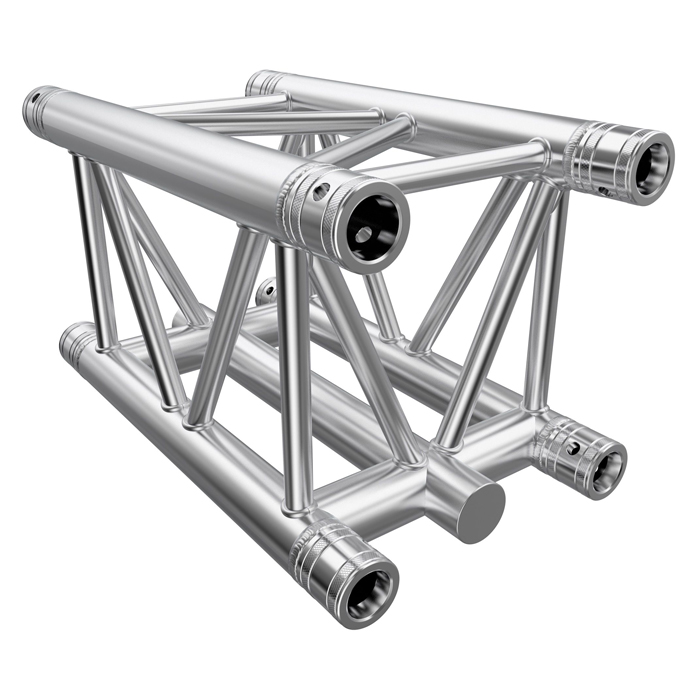

F35 Truss is the smallest of the 5-Chord Truss family at 290mm x 290mm with 50mmø chords. The fifth chord addition was specially designed to assist in the centring of the suspended load, always a challenge on Square Truss with two bottom chords.

It is particularly focused on the suspension of smaller LED screens where a long, continuous load must be centred with very little or no deflection. F35 Truss uses a thicker wall at 4mm to provide a stronger solution with lower deflection. The fifth chord is also ideal for suspension of drapes or set pieces. Of course, F35 5-Chord Truss can also be used for more general truss applications where you can make use of all three bottom chords.

Two engineering load tables are provided with all Global Truss 5-Chord Trusses. One table has a standard deflection limitation of 1:100, and the second a 1:300 deflection limitation, which is more applicable for the suspension of LED screens.

Product: GT-F35L050 Categories: F35 5-Chord Truss, Global Truss Tags: stage lighting truss, global truss pinnex, truss structures, sound proof fencing, scaffolding wheels, size 0 acrow props, 6 meter scaffold tower, cost to scaffold a house, DNA truss, pre-rig truss, aluminium scaffolding for sale, scaffold hire perth, scaffolding for sale sydney, aluminium folding scaffold, entertainment rigging australia, stage truss manufacturers, scaffolding companies, aluminium mobile scaffold, mr scaffold wetherill park, how much does a scaffold cost, cost of scaffolding per metre, global truss clamps, light truss, when is a rigger required, noise barrier, acrow prop sizes, how much scaffolding cost, acrow size 0, Stage clamps, production, painters scaffold, scaffolding parts, scaffold castor wheels, buy aluminium scaffold, entertainment rigging companies, stage truss systems, portable scaffolding, instant access scaffold, mr scaffold wetherill park nsw, portable scaffolding for sale, how much does scaffolding cost to buy, stage lighting truss systems, lighting clamps, scaffolding platform, scaffold hire sydney, how much scaffolding hire cost, aluminum scaffolding for sale, Truss Australia, rigger course, modular scaffold, scaffolding erection, scaffold beam clamp, how much does scaffolding cost per week, event rigging, stage trusses, scaffolding types, temporary enclosures, scaffold hire prices, scaffolding cost per day, mobile scaffold hire rates, lighting trigger clamps, roof scaffolding, mobile scaffold hire, how much does scaffolding cost to hire, mobile aluminum scaffolding, Screen Structure, audio brisbane, rigging, acoustic fence panels, scaffold hire adelaide, how to price scaffolding, mobile scaffold hire sydney, global truss accessories, store dj, acoustic fencing, construction scaffolding, scaffolding hire cost, house scaffolding hire, scaffolding cost calculator, Cosmic Truss, lighting truss australia, scaffolding supplies, scaffolding melbourne, mobile scaffold wheels, average cost of scaffolding, LED Structure, box truss design, stage design, building scaffold, scaffolding components, mobile scaffold platform, brace scaffolding, global truss australia, theatre rigging, scaffolding ladder, active noise control, how much does scaffolding cost, scaffold castors, estimating scaffolding costs, Aluminium Truss, lighting truss dj, box global truss, quick stage scaffold, scaffold hire melbourne, aluminium scaffold melbourne, mobile scaffold wheels for sale, Ground Support, design quintessence, stage light trusses, acrow scaffolding, scaffolding for sale perth, price for scaffolding rental, light duty scaffold, global truss catalog, titanav, scaffolding ticket, sound barrier fence, scaffolding rental cost, adjustable scaffold wheels, double coupler, lighting truss parts, box global, cantilever scaffolding, scaffold hire brisbane, scaffolding for sale brisbane, how much does scaffolding cost per day, GT F35L050, dj city, stage lighting mounting bars, scaffolding, gorilla scaffold, scaffolding rental, mobile aluminium scaffolding for sale, buy mobile scaffold, led screen, global truss distributor, titanav truss, kwikstage scaffolding, scaffolding hire, scaffolding hire rates, mobile scaffold sydney, aluminium scaffold hire sydney, Screen Truss, lighting truss system price list, Truss Structure, trestle scaffolding, buy scaffolding, scaffolding wheels for sale, cost for scaffolding rental, LED Truss, dq, stage lighting rig, scaffolding for sale, gumtree scaffolding, buy scaffolding sydney, scaffold hire cost per week, aluminium scaffold components, lighting truss, global truss f34 load data, truss coupler clamp, scaffold tower, mr scaffold, how much to hire scaffolding, how much does it cost for scaffolding, mobile scaffold hire price, 50mm truss clamp, lighting truss with lights, 5 Chord Truss, stair scaffold, scaffolding sydney, aluminum mobile scaffolding, folding scaffolding, Universal Truss, entertainment lighting, stage lighting truss design, mobile scaffold, db scaffolding, mr scaffold sydney, scaffolding installation cost, mobile scaffolding safety, global truss, global truss f44, truss lighting systems, mobile scaffold for sale, aluminium scaffold hire, how much to rent scaffolding, scaffolding caster wheel, hire painting scaffolding, Clamps, lighting trusses, 5 Chord, mini scaffold, scaffolding companies melbourne, how much is it to hire scaffolding, average price for scaffolding, F35-50 F, entertainment production, stage lighting trusses, noise control, linc scaffolding, aluminium scaffold for sale sydney, scaffolding hire price list, aluminium scaffolding parts, stage truss, global truss for sale, truss plate, access scaffolding, scaffolding for sale melbourne, how much does it cost to hire scaffolding, cost to buy scaffolding, aluminium scaffolding brisbane, Couplers, phantos, a frame scaffold, scaffolding clamp, cheap scaffolding hire, cost of scaffolding house, entertainment rigging, stage truss design, aluminum scaffolding, bayside scaffolding, mr scaffold melbourne, cost of scaffolding, mobile scaffolding parts

Description

LOAD TABLE (Bottom Centre Chord 1:100 Deflection*)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4.0	511	800	800	681	511
5.0	407	800	800	678	508
6.0	337	800	800	653	506
7.0	288	800	737	562	446
8.0	250	800	656	493	393
9.0	202	800	589	437	350
10.0	162	745	533	391	314
11.0	126	674	485	353	284
12.0	94	614	416	298	234
13.0	72	561	343	246	193
14.0	55	484	284	204	160
15.0	43	402	236	169	133
16.0	33	334	196	141	110
17.0	26	276	162	116	91
18.0	20	227	133	95	75
19.0	15	184	108	77	61
20.0	12	146	86	61	48
*Bottom Centre Chord Loading Only with Acceptable Deflection ≤ 1 : 100 (i.e. standard acceptable truss deflection for general use applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

LOAD TABLE (Bottom Centre Chord 1:300 Deflection**)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4.0	511	800	800	681	511
5.0	407	800	800	625	491
6.0	270	800	595	427	335
7.0	166	726	426	306	240
8.0	108	538	316	226	178
9.0	72	406	239	171	134
10.0	50	310	182	131	103
11.0	35	237	139	100	79
12.0	24	180	106	76	60
13.0	17	134	79	57	44
14.0	11	97	57	41	32
15.0	7	65	38	27	21
16.0	4	37	22	16	12
**Bottom Centre Chord Loading Only with Acceptable Deflection ≤ 1 : 300 (i.e. very low deflection if critical for suspension of LED screen applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

LOAD TABLE (Bottom Outer Chords 1:100 Deflection*)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4	511	1,694	1,021	681	511
5	407	1,416	960	678	508
6	337	1,210	836	653	506
7	288	1,053	737	562	446
8	250	929	656	493	393
9	202	828	589	437	350
10	162	745	533	391	314
11	126	674	485	353	284
12	94	614	416	298	234
13	72	561	343	246	193
14	55	484	284	204	160
15	43	402	236	169	133
16	33	334	196	141	110
17	26	276	162	116	91
18	20	227	133	95	75
19	15	184	108	77	61
20	12	146	86	61	48
***Bottom Outer Chords Loading with Acceptable Deflection ≤ 1 : 100 (i.e. standard acceptable truss deflection for general use applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

Additional information

Chord Material	EN AW 6082 T6
Endsocketmaterial	EN AW 6082 T6
Bracing Material	EN AW 6082 T6
Conical Spigot Material	EN AW 2011
Steelpinmaterial	8.8 Grade
Chord Dimension	50mmØ x 4mm
Bracing Dimensions	20mmØ x 2mm
Connectors Included	4 x Conical Spigots, Pins & R-Clips
External Length (mm)	500
External Depth (mm)	290
External Height (mm)	290
Cubic volume (m³)	0.0459
