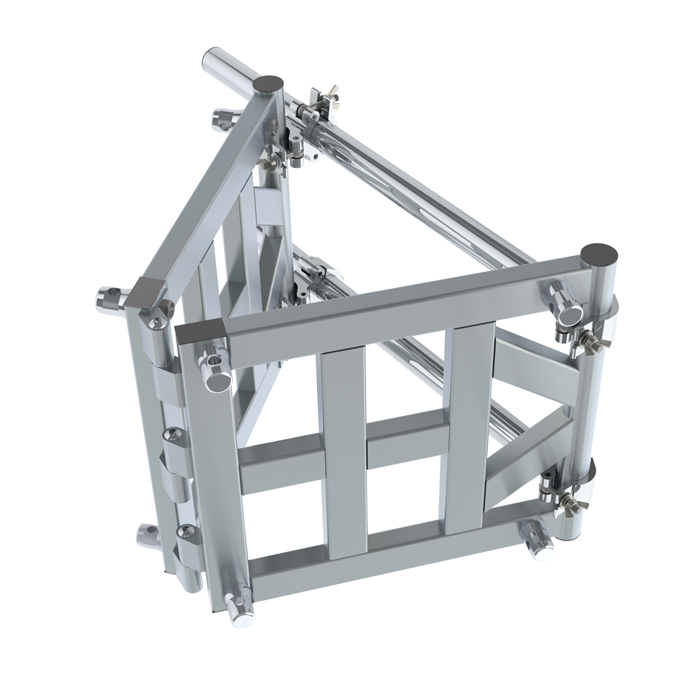

F54 Square Truss Variable Hinged Junction with Half-Spgots, Pins & R-Clips
Product Code: GT F54JV0-180F54 Square Truss Variable Hinged Junction with Half-Spgots, Pins & R-Clips
Product Code: GT F54JV0-180
Categories: RIGit, Truss, Global Truss, F54 Square Truss
Tags: lighting truss, truss, global truss, stage truss, alutruss, stage lighting truss, square truss, global truss clamps, stage lighting truss systems, globaltruss, Cosmic Truss, Prolyte, Trusst, Bolt Truss, Tourtruss, 300mm Truss, Tyler Truss, Plus Truss, Alloy Truss, Aluminium Truss, Steel Truss, Concert Truss, AV Truss, Truss Grid, Lighting Grid, Lighting Bar, Truss Tube, Lighting Tube, Circus Truss, Custom Truss Box Truss, Tri Truss, Triangular Truss, Flat Truss, Ladder Truss, Theatre Truss, Space Frame, Touring Truss, PRT, Truss Circle, Truss Hinge, Tent Truss, 50mm truss clamp, Clamps, Couplers, DNA truss, Duratruss, Stage clamps, Truss Australia, Tyler Pre-Rig, Tyler Truss Systems, audio brisbane, box truss design, design quintessence, dj city, dq, entertainment lighting, entertainment production, entertainment rigging, entertainment rigging australia, entertainment rigging companies, event rigging, global truss accessories, global truss australia, global truss catalog, global truss distributor, global truss f34 load data, global truss f44, global truss for sale, global truss pinnex, light truss, lighting clamps, lighting trigger clamps, lighting truss australia, lighting truss dj, lighting truss parts, lighting truss system price list, lighting truss with lights, lighting trusses, phantos, pre-rig truss, production, rigger course, rigging, stage design, stage light trusses, stage lighting mounting bars, stage lighting rig, stage lighting truss design, stage lighting trusses, stage truss design, stage truss manufacturers, stage truss systems, stage trusses, store dj, theatre rigging, titanav, titanav truss, truss coupler clamp, truss lighting systems, truss plate, truss structures, when is a rigger required, xsf truss, 500 Box Truss, ST Square Truss, H52V, 54 500ml truss, GT F54JV0-180, F54-54 Variable
F54 Square Truss Load Tables & TÜV Engineering Certificate
DownloadTechnical Data
SPAN (m) | UDL (kg/m) | CPL (kg) | THIRD POINT | FOURTH POINT | FIFTH POINT |
---|---|---|---|---|---|
4.0 | 1,255 | 2,630 | 1,652 | 1,214 | 996 |
5.0 | 1,001 | 2,278 | 1,463 | 1,109 | 917 |
6.0 | 742 | 2,003 | 1,313 | 1,020 | 852 |
7.0 | 541 | 1,783 | 1,188 | 941 | 789 |
8.0 | 411 | 1,602 | 1,083 | 838 | 699 |
9.0 | 322 | 1,448 | 993 | 738 | 615 |
10.0 | 258 | 1,290 | 916 | 658 | 548 |
11.0 | 211 | 1,159 | 846 | 590 | 493 |
12.0 | 175 | 1,048 | 786 | 534 | 446 |
13.0 | 147 | 954 | 729 | 486 | 405 |
14.0 | 125 | 872 | 667 | 445 | 370 |
15.0 | 107 | 800 | 612 | 408 | 340 |
16.0 | 92 | 736 | 563 | 375 | 313 |
17.0 | 80 | 679 | 519 | 346 | 289 |
18.0 | 70 | 627 | 479 | 319 | 266 |
19.0 | 61 | 580 | 444 | 296 | 247 |
20.0 | 54 | 537 | 411 | 273 | 228 |
21.0 | 47 | 497 | 380 | 254 | 211 |
22.0 | 42 | 461 | 352 | 235 | 196 |
23.0 | 37 | 427 | 326 | 217 | 182 |
24.0 | 33 | 395 | 302 | 201 | 167 |
Title | Type | Size | |
---|---|---|---|
![]() |
F54-SQUARE-LADDER-TRUSS_1 | application/pdf | 75 KB |
Specifications
Chord Material | |
---|---|
Endsocketmaterial | |
Bracing Material | |
Conical Spigot Material | |
Steelpinmaterial | |
Chord Dimension | |
Bracing Dimensions | |
Endsocket | |
Connectors Included | |
External Length (mm) | |
External Depth (mm) | |
External Height (mm) | |
Pack Length | |
Pack Depth | |
Pack Height | |
Net weight of the product (kg) | |
Pack Weight | |
Cubic volume (m³) | |
Product Type | Junctions |
