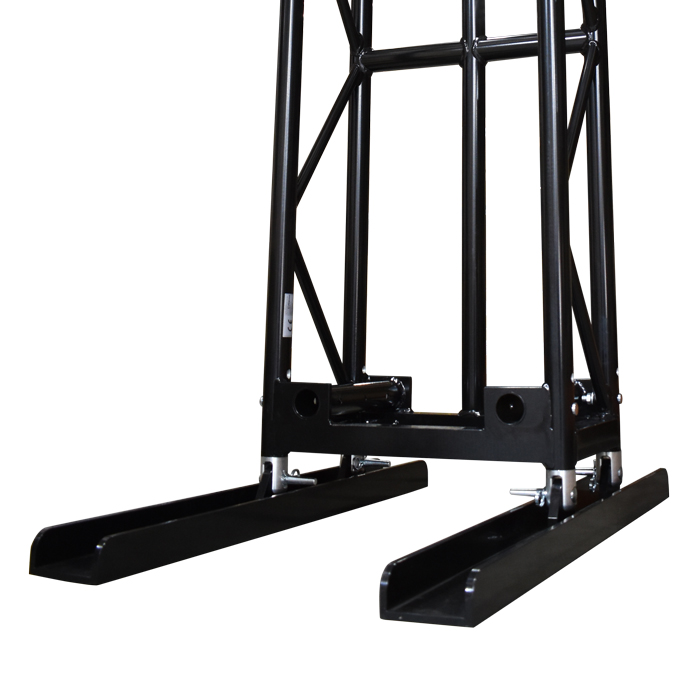

1100mm x 120mm Base Plate Channel for Pre-Rig Truss including Pins & Clips – Black (Pair)

SKU: GT-BP-PR64-BASE

Global Truss

• 1100mm x 120mm Dimensions: Tailored to suit PR64 truss specifications.
• Pair Supplied: Two base plates for complete ground support.
• Pins & Clips Included: Fast connection without additional tools.
• Available in Black: Low-visibility finish suited for live production environments.
• PR64 System Compatible: Designed for alignment with truss dollies and truck pack formats.

External Length (mm)

External Depth/Width (mm)

External Height (mm)

120

Finish

Black

Load Capacity (kg)
Truss Style (mm)

590mm

Chord Style (mm)

Pre-Rig

Diameter (mm)
Pack Length (m)

1120

Pack Depth (m)

140

Pack Height (m)

140

Pack Weight (kg)



Net Weight (kg)
Product Type

Ground Support

Bracing Dimensions (mm)

50mmØ x 4mm

Chord Dimensions

50mmØ x 4mm & 25mmØ x 3mm

SKU: GT-BP-PR64-BASE Categories: , Brand:

Description

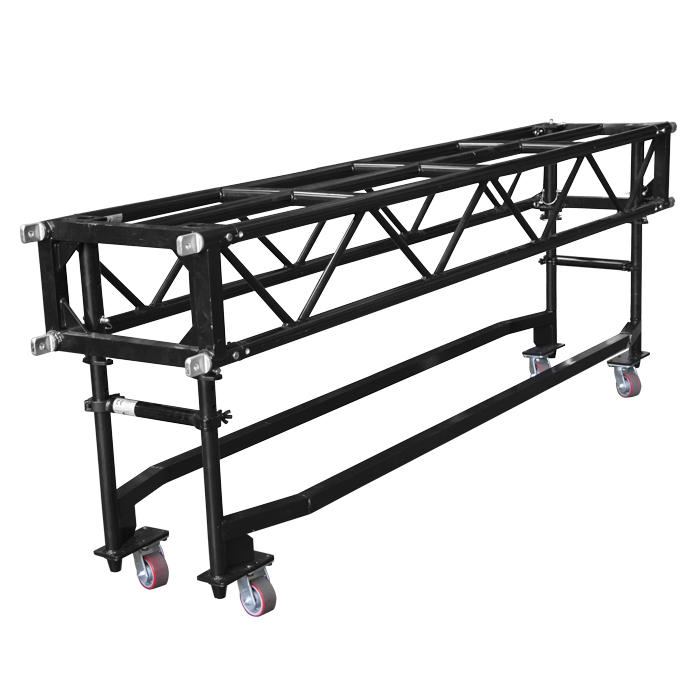

Attaching lights to a centre chord allows light fittings to be pre-rigged, cabled and assigned in the factory before loading into a truck. This process will always be faster in a production factory than on-site.

Truck packing and unpacking time is reduced substantially. So, too, is site load-in and load-out time i.e. truck space requirements are minimised, resulting in decreased fuel costs. (Of course, Global’s Pre-Rig Truss has been expressly designed with dimensions to suit Australian truck pack widths.)

The final advantage of using this Pre-Rig Truss as a touring solution is that it negates the need for road case storage space otherwise required for the show’s duration.

Pre-Rig Truss usage is not limited to touring production companies. It also offers a practical solution for venues and stadiums, particularly for fast and safe deployment from dedicated storage spaces.

TECHNICAL SPECIFICATIONS
Truss Chord MaterialEN AW 6082 T6
Truss Bracing MaterialEN AW 6082 T6
Truss Tongue and Clevis MaterialEN AW 6082 T6
Truss Connector Pin Material8.8 Grade
Dolly MaterialEN AW 6061 T6
Dolly Height Locking Pin Material8.8 Grade
Dolly Stacking Spigot MaterialEN AW 6082 T6
Truss Chord Dimension50mmØ x 4mm
Dolly Post Dimension46mmØ x 3mm
Dolly Frame Dimension590mm
Connectors Included4 Steel Pins & Clips
SPAN (m)UDL (kg/m)
Top Centre Chord Loading
4.0400
5.0400
6.0400
7.0362
8.0276
9.0215
10.0171
11.0139
12.0115
13.095
14.080
15.068
16.058
17.050
18.043
19.037
20.032
21.028
22.024
23.021
24.018
