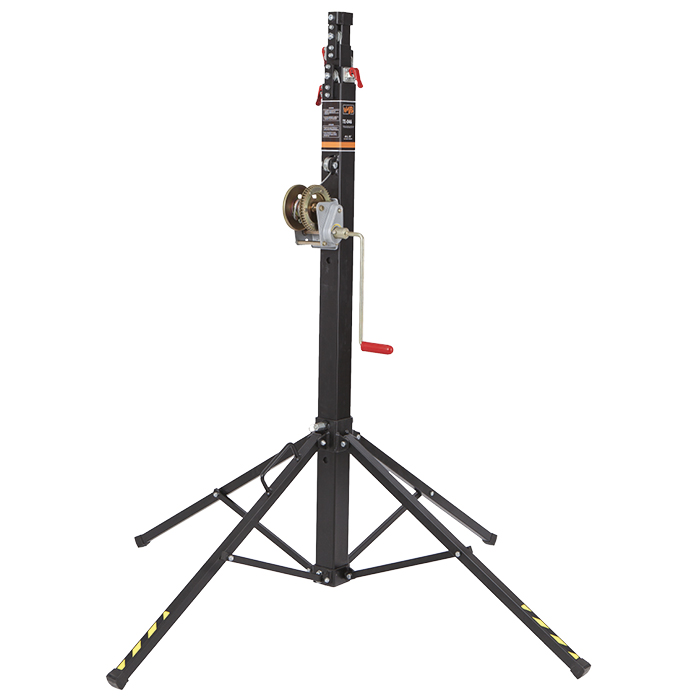

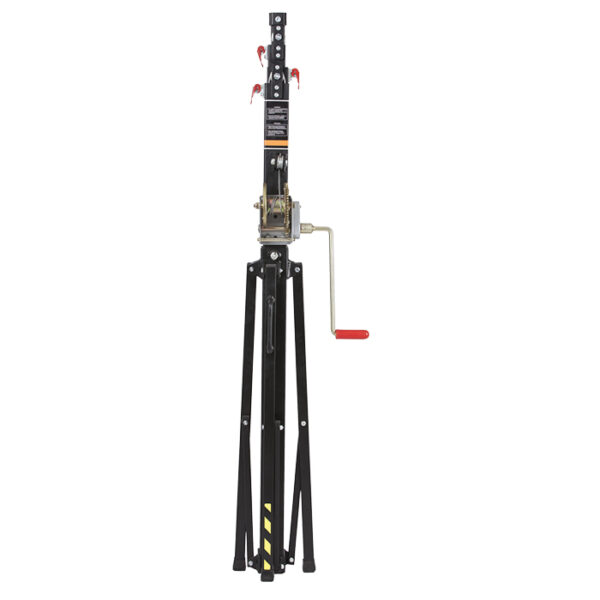

4.6m/150kg Top Load Towerlift – Black
Description
One of the most versatile lifters, normally recommended for flat floors, or indoor areas. Designed as the XL version of the best-selling VMB TE-034 lifting tower, it weighs only 31kg, and is capable of lifting 150kg to a height of 4.6m.
It is composed of four (4) steel profiles with high resistant, anti-torsion steel cable and guided through reinforced pulleys. A wide range of accessories are available for this compact telescopic lifter. As will all our lifting towers safety is guaranteed with our ALS automatic locks, patented and exclusive to VMB Tower lifts.
It is composed of four (4) steel profiles with high resistant, anti-torsion steel cable and guided through reinforced pulleys. A wide range of accessories are available for this compact telescopic lifter. As will all our lifting towers safety is guaranteed with our ALS automatic locks, patented and exclusive to VMB Tower lifts.
Description
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Maximum Height | 4.6m (15.1’) |
| Maximum Load | 150 kg (330.7lb) |
| Safety | ALS (Auto Lock Security) |
| Working Surface | 1.75 x 1.75m (5.74 x 5.74’) |
| Folded Height | 1.63m (5.35’) |
| Winch | 450kg (990lb) |
| Adaptor | 35mm (VMB PSU-034 / VMB PSU-06 / VMB PSA-01) |
| Weight | 31.0kg (68.34lb) |
| Title | Type | Size | |
|---|---|---|---|
|
TE-046 4.6m/150kg Top Load Towerlift Operating Instructions User Manual | application/pdf | 1 MB |
|
|
TE-046 4.6m/150kg Top Load Towerlift BGV-C1 Certificate | application/pdf | 164 KB |
