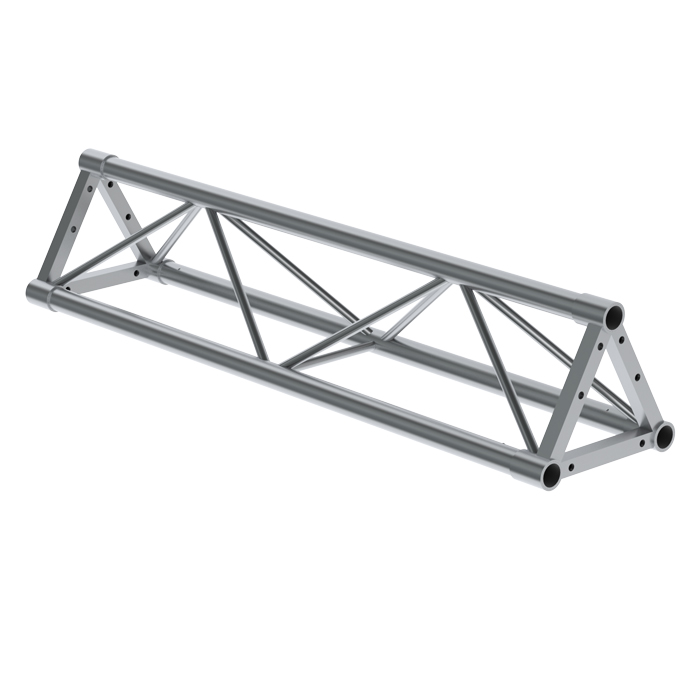

Name: A33 Tri 1.5m Linear Truss (including bolts &amp; spigots sets)
SKU: GT-A33L150
Availability: InStock

SKU: GT-A33L150

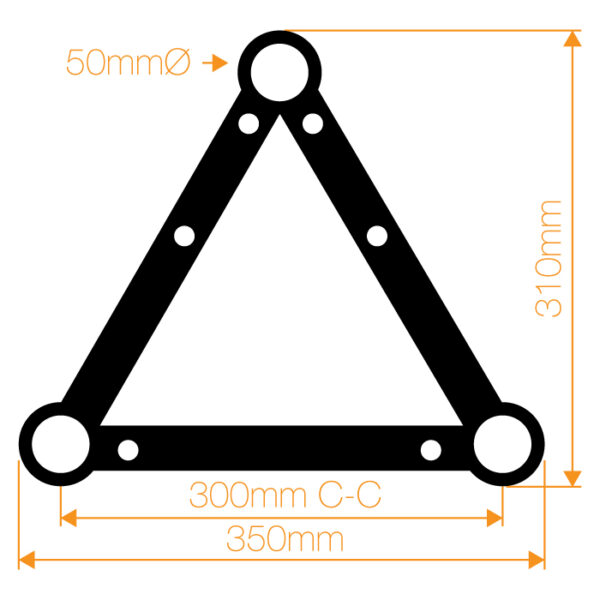

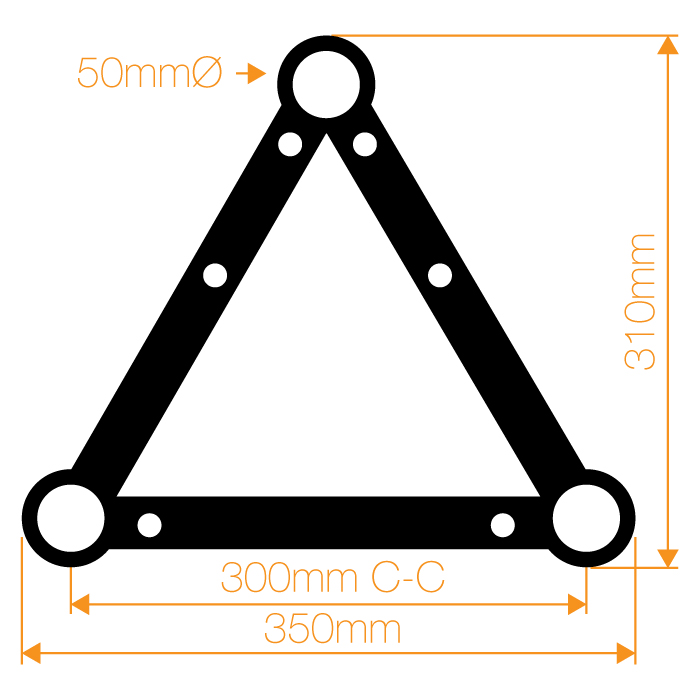

A33 Tri Truss is a bolt-together truss where each face measures 350mm OD. This truss is a great “all-rounder” that can be used in many applications such as schools, theatres, touring, exhibitions, corporate AV etc. With diagonal braces on two faces and horizontal braces on the third, A33 Tri Truss has very good hanging space to size ratio, allowing plenty of unobstructed space to attach a fixture. It is a very popular truss design in Australia.

Product: GT-A33L150 Categories: A33 300mm Truss Straight Lengths, Global Truss, A33 300mm Truss Tags: phantos, Couplers, entertainment rigging, stage truss design, truss roof system, AV Truss, global truss pinnex, truss structures, stage roof truss, global truss, Ladder Truss, pre-rig truss, globaltruss, DNA truss, entertainment rigging australia, stage truss manufacturers, truss suppliers, Truss Grid, light truss, when is a rigger required, slick truss, stage truss, Theatre Truss, production, A33-5m, Cosmic Truss, Stage clamps, entertainment rigging companies, stage truss systems, truss fd34, Lighting Grid, lighting clamps, Scaffold Truss, layher beams, alutruss, Space Frame, rigger course, Prolyte, Truss Australia, event rigging, stage trusses, fd34 truss, Lighting Bar, lighting trigger clamps, scaffolding for stage, triangle truss, Touring Truss, rigging, Bolt Truss, audio brisbane, global truss accessories, store dj, pre rig, Truss Tube, lighting truss australia, rectangular truss, truss tower, PRT, stage design, GT A33L150, 300mm Truss, box truss design, global truss australia, theatre rigging, ground support truss system, Lighting Tube, lighting truss dj, stage roof systems, stage lighting truss, Truss Circle, stage light trusses, 300 Tri Truss, Plus Truss, design quintessence, global truss catalog, titanav, stage roof, Circus Truss, lighting truss parts, ground support truss, square truss, Truss Hinge, stage lighting mounting bars, 300 Triangular Truss, Alloy Truss, dj city, global truss distributor, titanav truss, fd34, Custom Truss Box Truss, lighting truss system price list, pre rig moving light truss, global truss clamps, Tent Truss, stage lighting rig, Pub Truss, Aluminium Truss, dq, global truss f34 load data, truss coupler clamp, stage with roof, Tri Truss, lighting truss with lights, ground support stage, truss rigging, 50mm truss clamp, stage lighting truss design, ground support systems, Steel Truss, entertainment lighting, global truss f44, truss lighting systems, truss stage roof, lighting truss, Triangular Truss, lighting trusses, mini beam truss, stage lighting truss systems, Clamps, stage lighting trusses, stage scaffolding, Concert Truss, entertainment production, global truss for sale, truss plate, prt truss, truss, Flat Truss

A33 Triangular Truss Load Table & Engineering Certificate

Download

Description

A33 LOAD TABLE

SPAN (m)	CPL (kg)	UDL (kg/m)
0.5	763	765
1.0	762	765
1.5	761	754
2.0	760	754
2.5	758	754
3.0	757	596
3.5	756	437
4.0	667	333
5.0	529	212
6.0	436	146
7.0	370	106
8.0	319	80
9.0	279	62
10.0	246	49
11.0	219	40
12.0	197	33

Full engineering report available upon request.

	Title	Type	Size
	A33 Truss Load Table & Engineering Certificate Click here to download PDF	application/pdf	97 KB

Additional information

Chord Material	EN AW 6082 T6
Endbracingmaterial	EN AW 6082 T6
Diagonalbracingmaterial	EN AW 6082 T6
Boltmaterial	8.8 Grade
Spigottubematerial	EN AW 6082 T6
Endbracingrhs	32mmØ x 32mmØ x 6mm
Bolt	4" x ½" Hexagonal
Bolt, nut & washer sets included	4 x ½ x 4 Bolts, Nuts & Washers
Spigots Included	3 x 42mmØ
External Length (mm)	1500
External Depth (mm)	350
External Height (mm)	310
Pack Length	1520
Pack Depth	390
Pack Height	330
Net weight of the product (kg)	10.6
Pack Weight	11.9
Cubic volume (m³)	0.1956
