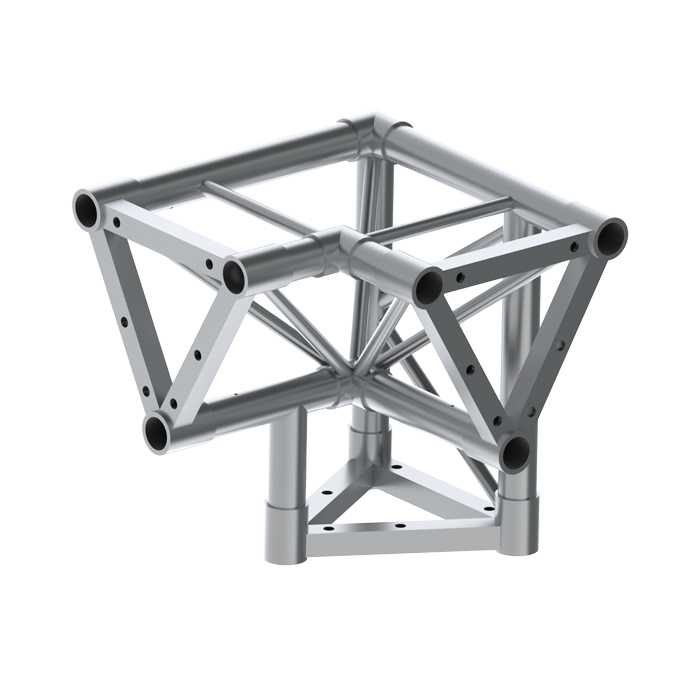

Name: A33 Tri-Truss 3 Way 90° Horizontal Corner to Vertical Junction (Right) (including bolts &amp; spigots sets)
SKU: GT-A33J33
Availability: InStock

SKU: GT-A33J33

A33 Tri Truss is a bolt-together truss where each face measures 350mm OD. This truss is a great “all-rounder” that can be used in many applications such as schools, theatres, touring, exhibitions, corporate AV etc. With diagonal braces on two faces and horizontal braces on the third, A33 Tri Truss has very good hanging space to size ratio, allowing plenty of unobstructed space to attach a fixture. It is a very popular truss design in Australia.

Product: GT-A33J33 Categories: A33 300mm Truss Junctions, Global Truss, A33 300mm Truss Tags: Clamps, lighting trusses, ground support truss, AV Truss, entertainment production, stage lighting trusses, 300 Triangular Truss, global truss, Ladder Truss, global truss for sale, truss plate, fd34, globaltruss, Couplers, phantos, pre rig moving light truss, Truss Grid, entertainment rigging, stage truss design, Pub Truss, stage truss, Theatre Truss, global truss pinnex, truss structures, stage with roof, Cosmic Truss, DNA truss, pre-rig truss, ground support stage, Lighting Grid, entertainment rigging australia, stage truss manufacturers, ground support systems, alutruss, Space Frame, light truss, when is a rigger required, truss stage roof, Prolyte, Stage clamps, production, mini beam truss, Lighting Bar, entertainment rigging companies, stage truss systems, stage scaffolding, triangle truss, Touring Truss, lighting clamps, Scaffold Truss, prt truss, Bolt Truss, Truss Australia, rigger course, Truss Tube, event rigging, stage trusses, truss roof system, truss tower, PRT, lighting trigger clamps, stage roof truss, 300mm Truss, audio brisbane, rigging, Lighting Tube, global truss accessories, store dj, truss suppliers, stage lighting truss, Truss Circle, lighting truss australia, slick truss, Plus Truss, box truss design, stage design, GT A33J33, Circus Truss, global truss australia, theatre rigging, truss fd34, square truss, Truss Hinge, lighting truss dj, layher beams, Alloy Truss, design quintessence, stage light trusses, A33-90° Horiz Corner to Vert, Custom Truss Box Truss, global truss catalog, titanav, fd34 truss, global truss clamps, Tent Truss, lighting truss parts, scaffolding for stage, Aluminium Truss, dj city, stage lighting mounting bars, Tri Truss, global truss distributor, titanav truss, pre rig, truss rigging, lighting truss system price list, rectangular truss, Steel Truss, dq, stage lighting rig, lighting truss, Triangular Truss, global truss f34 load data, truss coupler clamp, ground support truss system, stage lighting truss systems, 50mm truss clamp, lighting truss with lights, stage roof systems, Concert Truss, entertainment lighting, stage lighting truss design, 300 Tri Truss, truss, Flat Truss, global truss f44, truss lighting systems, stage roof

Description

A33 LOAD TABLE

SPAN (m)	CPL (kg)	UDL (kg/m)
0.5	763	765
1.0	762	765
1.5	761	754
2.0	760	754
2.5	758	754
3.0	757	596
3.5	756	437
4.0	667	333
5.0	529	212
6.0	436	146
7.0	370	106
8.0	319	80
9.0	279	62
10.0	246	49
11.0	219	40
12.0	197	33

Full engineering report available upon request.

	Title	Type	Size
	A33 Truss Load Table & Engineering Certificate Click here to download PDF	application/pdf	97 KB

Additional information

Chord Material	EN AW 6082 T6
Endbracingmaterial	EN AW 6082 T6
Diagonalbracingmaterial	EN AW 6082 T6
Boltmaterial	8.8 Grade
Spigottubematerial	EN AW 6082 T6
Endbracingrhs	32mmØ x 32mmØ x 6mm
Bolt	4" x ½" Hexagonal
Bolt, nut & washer sets included	4 x ½ x 4 Bolts, Nuts & Washers
Spigots Included	3 x 42mmØ
External Length (mm)	505
External Depth (mm)	505
External Height (mm)	505
Pack Length	515
Pack Depth	515
Pack Height	525
Net weight of the product (kg)	11.9
Pack Weight	15
Cubic volume (m³)	0.1392
