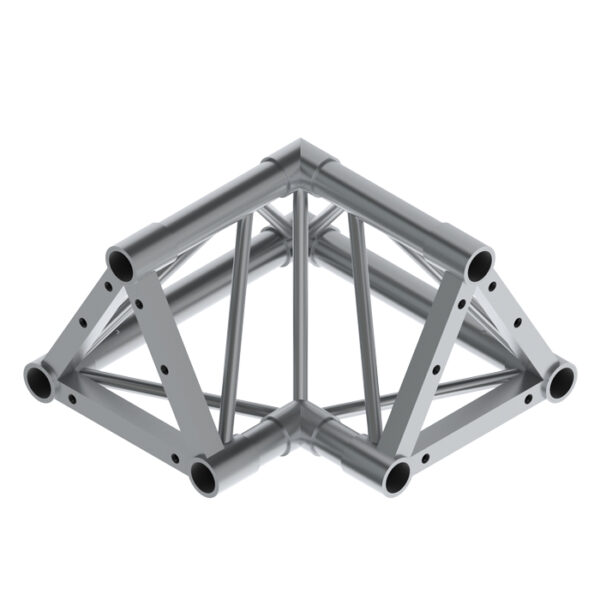

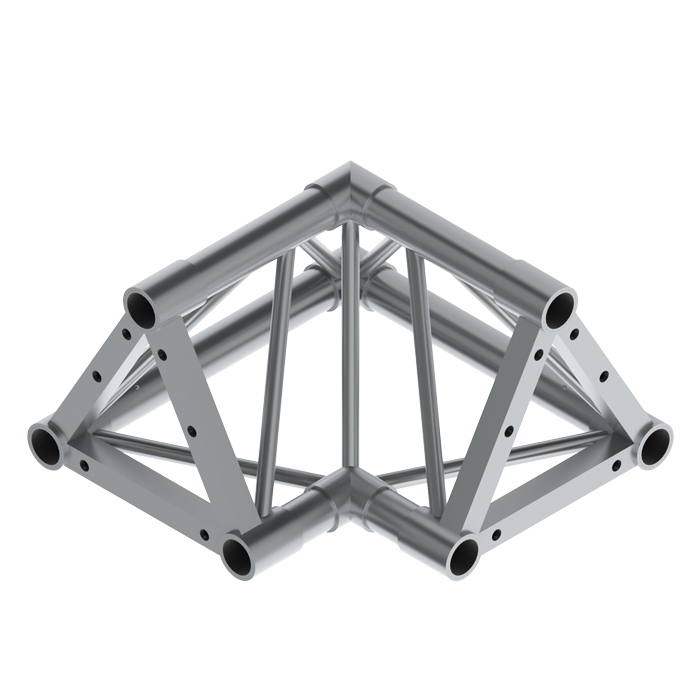

A33 Tri-Truss 90° Horizontal Corner (including bolts & spigots sets)
SKU: GT-A33J21A33 Tri Truss is a bolt-together truss where each face measures 350mm OD. This truss is a great “all-rounder” that can be used in many applications such as schools, theatres, touring, exhibitions, corporate AV etc. With diagonal braces on two faces and horizontal braces on the third, A33 Tri Truss has very good hanging space to size ratio, allowing plenty of unobstructed space to attach a fixture. It is a very popular truss design in Australia.
Product: GT-A33J21
Categories: A33 300mm Truss Junctions, Global Truss, A33 300mm Truss
Tags: slick truss, truss rigging, 50mm truss clamp, lighting truss with lights, Steel Truss, entertainment lighting, stage lighting truss design, truss lighting systems, truss fd34, lighting truss, Triangular Truss, global truss f44, layher beams, stage lighting truss systems, Clamps, lighting trusses, Concert Truss, entertainment production, stage lighting trusses, truss plate, fd34 truss, truss, Flat Truss, global truss for sale, scaffolding for stage, Couplers, phantos, AV Truss, entertainment rigging, stage truss design, truss structures, pre rig, global truss, Ladder Truss, global truss pinnex, rectangular truss, globaltruss, DNA truss, pre-rig truss, 300 Tri Truss, Truss Grid, entertainment rigging australia, stage truss manufacturers, when is a rigger required, ground support truss system, stage truss, Theatre Truss, light truss, stage roof systems, Cosmic Truss, Stage clamps, production, 300 Triangular Truss, Lighting Grid, entertainment rigging companies, stage truss systems, Scaffold Truss, stage roof, alutruss, Space Frame, lighting clamps, ground support truss, Prolyte, Truss Australia, rigger course, Pub Truss, Lighting Bar, event rigging, stage trusses, fd34, triangle truss, Touring Truss, lighting trigger clamps, pre rig moving light truss, Bolt Truss, audio brisbane, rigging, GT A33J21, Truss Tube, global truss accessories, store dj, stage with roof, truss tower, PRT, lighting truss australia, ground support stage, 300mm Truss, box truss design, stage design, ground support systems, Lighting Tube, global truss australia, theatre rigging, truss stage roof, stage lighting truss, Truss Circle, lighting truss dj, mini beam truss, Plus Truss, design quintessence, stage light trusses, stage scaffolding, Circus Truss, global truss catalog, titanav, prt truss, square truss, Truss Hinge, lighting truss parts, A33-90, Alloy Truss, dj city, stage lighting mounting bars, truss roof system, Custom Truss Box Truss, global truss distributor, titanav truss, stage roof truss, global truss clamps, Tent Truss, lighting truss system price list, Aluminium Truss, dq, stage lighting rig, truss suppliers, Tri Truss, global truss f34 load data, truss coupler clamp
Description
A33 LOAD TABLE
SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|
0.5 | 763 | 765 |
1.0 | 762 | 765 |
1.5 | 761 | 754 |
2.0 | 760 | 754 |
2.5 | 758 | 754 |
3.0 | 757 | 596 |
3.5 | 756 | 437 |
4.0 | 667 | 333 |
5.0 | 529 | 212 |
6.0 | 436 | 146 |
7.0 | 370 | 106 |
8.0 | 319 | 80 |
9.0 | 279 | 62 |
10.0 | 246 | 49 |
11.0 | 219 | 40 |
12.0 | 197 | 33 |
Title | Type | Size | |
---|---|---|---|
![]() |
A33 Truss Load Table & Engineering Certificate
Click here to download PDF |
application/pdf | 97 KB |
Additional information
Chord Material | |
---|---|
Endbracingmaterial | |
Diagonalbracingmaterial | |
Boltmaterial | |
Spigottubematerial | |
Endbracingrhs | |
Bolt | |
Bolt, nut & washer sets included | |
Spigots Included | |
External Length (mm) | |
External Depth (mm) | |
External Height (mm) | |
Pack Length | |
Pack Depth | |
Pack Height | |
Net weight of the product (kg) | |
Pack Weight | |
Cubic volume (m³) |
