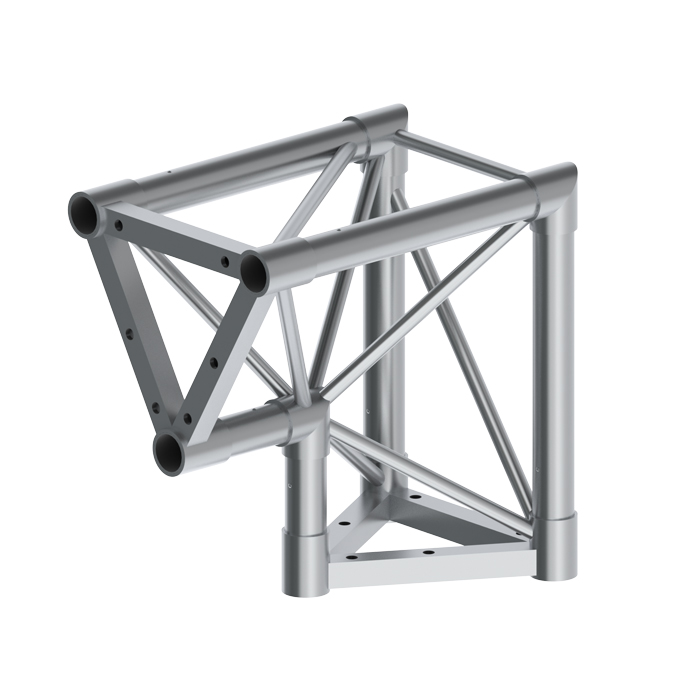

Name: A33 Tri-Truss 90° Vertical Corner (Apex Inside) (including bolts &amp; spigots sets)
SKU: GT-A33J25
Availability: InStock

SKU: GT-A33J25

A33 Tri Truss is a bolt-together truss where each face measures 350mm OD. This truss is a great “all-rounder” that can be used in many applications such as schools, theatres, touring, exhibitions, corporate AV etc. With diagonal braces on two faces and horizontal braces on the third, A33 Tri Truss has very good hanging space to size ratio, allowing plenty of unobstructed space to attach a fixture. It is a very popular truss design in Australia.

Product: GT-A33J25 Categories: A33 300mm Truss Junctions, A33 300mm Truss, Global Truss Tags: Truss Grid, entertainment rigging australia, stage truss manufacturers, stage scaffolding, stage truss, Theatre Truss, light truss, when is a rigger required, prt truss, Cosmic Truss, Stage clamps, production, Lighting Grid, entertainment rigging companies, stage truss systems, truss roof system, alutruss, Space Frame, lighting clamps, Scaffold Truss, stage roof truss, Prolyte, Truss Australia, rigger course, Lighting Bar, event rigging, stage trusses, truss suppliers, triangle truss, Touring Truss, lighting trigger clamps, slick truss, Bolt Truss, audio brisbane, rigging, Truss Tube, global truss accessories, store dj, truss fd34, truss tower, PRT, lighting truss australia, layher beams, 300mm Truss, box truss design, stage design, Lighting Tube, global truss australia, theatre rigging, fd34 truss, stage lighting truss, Truss Circle, lighting truss dj, scaffolding for stage, Plus Truss, design quintessence, stage light trusses, Circus Truss, global truss catalog, titanav, pre rig, square truss, Truss Hinge, lighting truss parts, rectangular truss, Alloy Truss, dj city, stage lighting mounting bars, GT A33J25, Custom Truss Box Truss, global truss distributor, titanav truss, ground support truss system, global truss clamps, Tent Truss, lighting truss system price list, stage roof systems, Aluminium Truss, dq, stage lighting rig, 300 Tri Truss, A33-90° Vertical Corner, Tri Truss, global truss f34 load data, truss coupler clamp, stage roof, truss rigging, 50mm truss clamp, lighting truss with lights, ground support truss, Steel Truss, entertainment lighting, stage lighting truss design, 300 Triangular Truss, lighting truss, Triangular Truss, global truss f44, truss lighting systems, fd34, stage lighting truss systems, Clamps, lighting trusses, pre rig moving light truss, Concert Truss, entertainment production, stage lighting trusses, Pub Truss, truss, Flat Truss, global truss for sale, truss plate, stage with roof, Couplers, phantos, ground support stage, AV Truss, entertainment rigging, stage truss design, ground support systems, global truss, Ladder Truss, global truss pinnex, truss structures, truss stage roof, globaltruss, DNA truss, pre-rig truss, mini beam truss

Description

A33 LOAD TABLE

SPAN (m)	CPL (kg)	UDL (kg/m)
0.5	763	765
1.0	762	765
1.5	761	754
2.0	760	754
2.5	758	754
3.0	757	596
3.5	756	437
4.0	667	333
5.0	529	212
6.0	436	146
7.0	370	106
8.0	319	80
9.0	279	62
10.0	246	49
11.0	219	40
12.0	197	33

Full engineering report available upon request.

	Title	Type	Size
	A33 Truss Load Table & Engineering Certificate Click here to download PDF	application/pdf	97 KB

Additional information

Chord Material	EN AW 6082 T6
Endbracingmaterial	EN AW 6082 T6
Diagonalbracingmaterial	EN AW 6082 T6
Boltmaterial	8.8 Grade
Spigottubematerial	EN AW 6082 T6
Endbracingrhs	32mmØ x 32mmØ x 6mm
Bolt	4" x ½" Hexagonal
Bolt, nut & washer sets included	4 x ½ x 4 Bolts, Nuts & Washers
Conical Spigot Material	PROTOS Force Measure System
Spigots Included	3 x 42mmØ
External Length (mm)	505
External Depth (mm)	505
External Height (mm)	355
Pack Length	515
Pack Depth	515
Pack Height	365
Net weight of the product (kg)	8.6
Pack Weight	8.9
Cubic volume (m³)	0.0968
