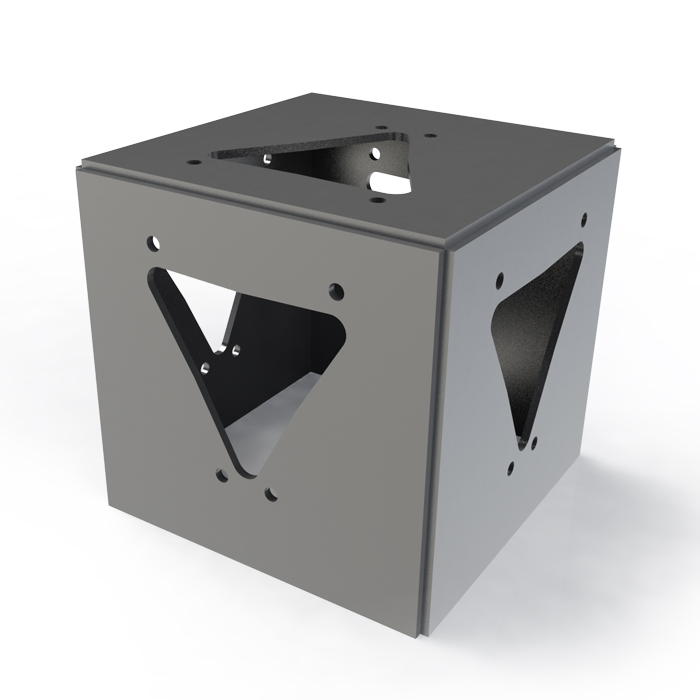

A33 Tri-Truss Cube Junction (including bolts sets for 2 faces)

Name: A33 Tri-Truss Cube Junction (including bolts sets for 2 faces)
SKU: GT-A33JBOX
Availability: InStock

SKU: GT-A33JBOX

A33 Tri Truss is a bolt-together truss where each face measures 350mm OD. This truss is a great “all-rounder” that can be used in many applications such as schools, theatres, touring, exhibitions, corporate AV etc. With diagonal braces on two faces and horizontal braces on the third, A33 Tri Truss has very good hanging space to size ratio, allowing plenty of unobstructed space to attach a fixture. It is a very popular truss design in Australia.

Product: GT-A33JBOX Categories: A33 300mm Truss Junctions, Global Truss, A33 300mm Truss Tags: Aluminium Truss, design quintessence, stage lighting mounting bars, stage roof, Tri Truss, global truss catalog, titanav truss, ground support truss, truss rigging, lighting truss parts, 300 Triangular Truss, A33-6 Way, Steel Truss, dj city, stage lighting rig, fd34, lighting truss, Triangular Truss, global truss distributor, truss coupler clamp, pre rig moving light truss, stage lighting truss systems, lighting truss system price list, Pub Truss, Concert Truss, dq, stage lighting truss design, stage with roof, truss, Flat Truss, global truss f34 load data, truss lighting systems, ground support stage, 50mm truss clamp, lighting truss with lights, ground support systems, AV Truss, entertainment lighting, stage lighting trusses, truss stage roof, global truss, Ladder Truss, global truss f44, truss plate, mini beam truss, globaltruss, Clamps, lighting trusses, stage scaffolding, Truss Grid, entertainment production, stage truss design, prt truss, stage truss, Theatre Truss, global truss for sale, truss structures, Cosmic Truss, Couplers, phantos, truss roof system, Lighting Grid, entertainment rigging, stage truss manufacturers, stage roof truss, alutruss, Space Frame, global truss pinnex, when is a rigger required, Prolyte, DNA truss, production, truss suppliers, Lighting Bar, entertainment rigging australia, stage truss systems, slick truss, triangle truss, Touring Truss, light truss, Scaffold Truss, Bolt Truss, Stage clamps, rigger course, truss fd34, Truss Tube, entertainment rigging companies, stage trusses, layher beams, truss tower, PRT, lighting clamps, 300mm Truss, Truss Australia, rigging, fd34 truss, Lighting Tube, event rigging, store dj, scaffolding for stage, stage lighting truss, Truss Circle, lighting trigger clamps, Plus Truss, audio brisbane, stage design, pre rig, Circus Truss, global truss accessories, theatre rigging, rectangular truss, square truss, Truss Hinge, lighting truss australia, GT A33JBOX, Alloy Truss, box truss design, stage light trusses, ground support truss system, Custom Truss Box Truss, global truss australia, titanav, stage roof systems, global truss clamps, Tent Truss, lighting truss dj, 300 Tri Truss, Cube

Description

A33 LOAD TABLE

SPAN (m)	CPL (kg)	UDL (kg/m)
0.5	763	765
1.0	762	765
1.5	761	754
2.0	760	754
2.5	758	754
3.0	757	596
3.5	756	437
4.0	667	333
5.0	529	212
6.0	436	146
7.0	370	106
8.0	319	80
9.0	279	62
10.0	246	49
11.0	219	40
12.0	197	33

Full engineering report available upon request.

	Title	Type	Size
	A33 Truss Load Table & Engineering Certificate Click here to download PDF	application/pdf	97 KB

Additional information

External Length (mm)	375
External Depth (mm)	375
External Height (mm)	375
Pack Length	390
Pack Depth	390
Pack Height	400
Net weight of the product (kg)	14.4
Pack Weight	15
Cubic volume (m³)	0.0608
