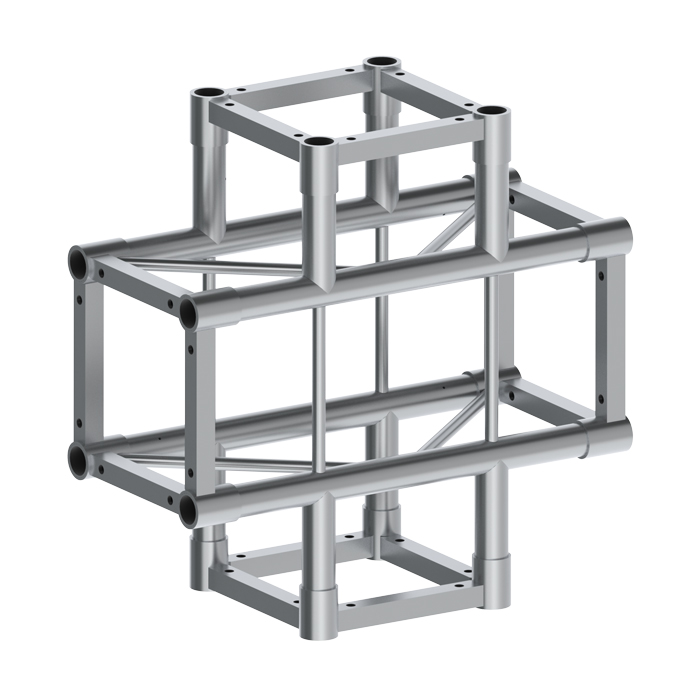

Name: A34 Square Truss 4 Way X-Junction (including bolts &amp; spigots sets)
SKU: GT-A34J41
Availability: InStock

SKU: GT-A34J41

A34 Square Truss is a bolt-together truss measuring 350mmx 350mm OD. This truss is a great “all-rounder” that can be used in many applications such as schools, theatres, touring, exhibitions, corporate AV etc. With diagonal braces on two faces and horizontal braces on the other two, A34 Square Truss has very good hanging space to size ratio, allowing plenty of unobstructed space to attach a fixture. It is a very popular truss design in Australia.

Product: GT-A34J41 Categories: A34 300mm Truss Junctions, Global Truss, A34 300mm Truss Tags: 300 Triangular Truss, GT A34J41, Cosmic Truss, DNA truss, pre-rig truss, stage truss manufacturers, fd34, Lighting Grid, entertainment rigging australia, when is a rigger required, pre rig moving light truss, truss tower, Space Frame, light truss, Pub Truss, A34 Truss 4 Way X-4 Way, Prolyte, Stage clamps, production, stage truss systems, stage with roof, Lighting Bar, entertainment rigging companies, Scaffold Truss, ground support stage, stage lighting truss, Touring Truss, lighting clamps, ground support systems, Bolt Truss, Truss Australia, rigger course, stage trusses, truss stage roof, Truss Tube, event rigging, mini beam truss, square truss, PRT, lighting trigger clamps, stage scaffolding, 300mm Truss, audio brisbane, rigging, store dj, prt truss, Lighting Tube, global truss accessories, global truss clamps, Truss Circle, lighting truss australia, truss roof system, Plus Truss, box truss design, stage design, theatre rigging, stage roof truss, Circus Truss, global truss australia, truss rigging, Truss Hinge, lighting truss dj, truss suppliers, Alloy Truss, design quintessence, stage light trusses, titanav, slick truss, lighting truss, Custom Truss Box Truss, global truss catalog, stage lighting truss systems, Tent Truss, lighting truss parts, truss fd34, Aluminium Truss, dj city, stage lighting mounting bars, titanav truss, layher beams, truss, Tri Truss, global truss distributor, 300 Box truss, lighting truss system price list, fd34 truss, Steel Truss, dq, stage lighting rig, truss coupler clamp, scaffolding for stage, global truss, Triangular Truss, global truss f34 load data, 50mm truss clamp, lighting truss with lights, pre rig, Concert Truss, entertainment lighting, stage lighting truss design, truss lighting systems, rectangular truss, stage truss, Flat Truss, global truss f44, Clamps, lighting trusses, ground support truss system, AV Truss, entertainment production, stage lighting trusses, truss plate, stage roof systems, alutruss, Ladder Truss, global truss for sale, globaltruss, Couplers, phantos, stage roof, Truss Grid, entertainment rigging, stage truss design, truss structures, ground support truss, triangle truss, Theatre Truss, global truss pinnex

A34 Square Truss Load Table

Download

Description

SPAN (m)	CPL (kg)	UDL (kg/m)
3.0	1,045	1,223
4.0	1,045	776
5.0	1,045	491
6.0	1,010	337
7.0	852	244
8.0	732	183
9.0	637	142
10.0	560	112
11.0	495	90
12.0	440	73
13.0	393	60
14.0	351	50
15.0	313	42

	Title	Type	Size
	A34-SQUARE-TRUSS_1	application/pdf	115 KB

Additional information

Chord Material	EN AW 6082 T6
Endbracingmaterial	EN AW 6082 T6
Diagonalbracingmaterial	EN AW 6082 T6
Boltmaterial	8.8 Grade
Spigottubematerial	EN AW 6082 T6
Endbracingrhs	32mmØ x 32mmØ x 6mm
Bolt	4" x ½" Hexagonal
Bolt, nut & washer sets included	4 x ½ x 4 Bolts, Nuts & Washers
Spigots Included	4 x 42mmØ
External Length (mm)	500
External Depth (mm)	500
External Height (mm)	500
Pack Length	510
Pack Depth	510
Pack Height	520
Net weight of the product (kg)	17.6
Pack Weight	18.9
Cubic volume (m³)	0.1353
