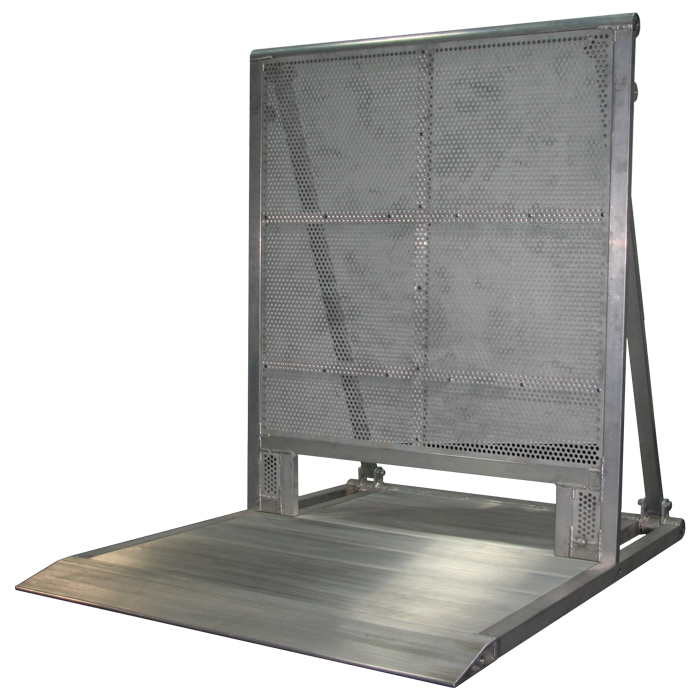

Access Void Barrier
SKU: GT-CB-S100-V

• Enables safe cable and conduit access beneath the barrier line
• Maintains crowd safety and continuous barrier coverage
• Compatible with Global Truss crowd barrier panels
• Bolts directly into barrier runs for structural continuity
• Ideal for staging, audio, and event production environments
External Length (mm) | |
---|---|
External Depth/Width (mm) | |
External Height (mm) | |
Finish | Raw |
Load Capacity (kg) | |
Truss Style (mm) |
|
Chord Style (mm) |
|
Diameter (mm) | |
Pack Length (m) | 1370 |
Pack Depth (m) | 120 |
Pack Height (m) | 1115 |
Pack Weight (kg) | 45 |
Net Weight (kg) | |
Product Type | Barrier |
Bracing Dimensions (mm) |
|
Chord Dimensions |
|
Description
The Access Void Barrier is designed to allow safe and controlled cable or conduit routing beneath the front-of-stage barrier line—essential for delivering power, audio, and data connections to the stage or FOH area. Often used at concerts, festivals, and major public events, it ensures uninterrupted crowd control while providing technical teams the access they need.
Built to match the footprint and profile of standard Global Truss crowd barrier panels, this unit bolts directly into the system, maintaining structural strength and layout consistency. Also known as a crowd barrier, punter barrier, security barrier, stage barrier, or front-of-house (FOH) barrier, it’s a trusted part of any safe, professional event setup.
TECHNICAL SPECIFICATIONS | |
---|---|
Material | EN AW 6082 T6 Alloy Plate and Tube |
Barrier Connector | M12 x 120 Zinc Plated 8.8 Grade Bolt, Nut & Washer |
Locating Pin | 11.5mmØ 118mmL C45 Steel |
Finish | Milled |
Weight | 38.0kg |
