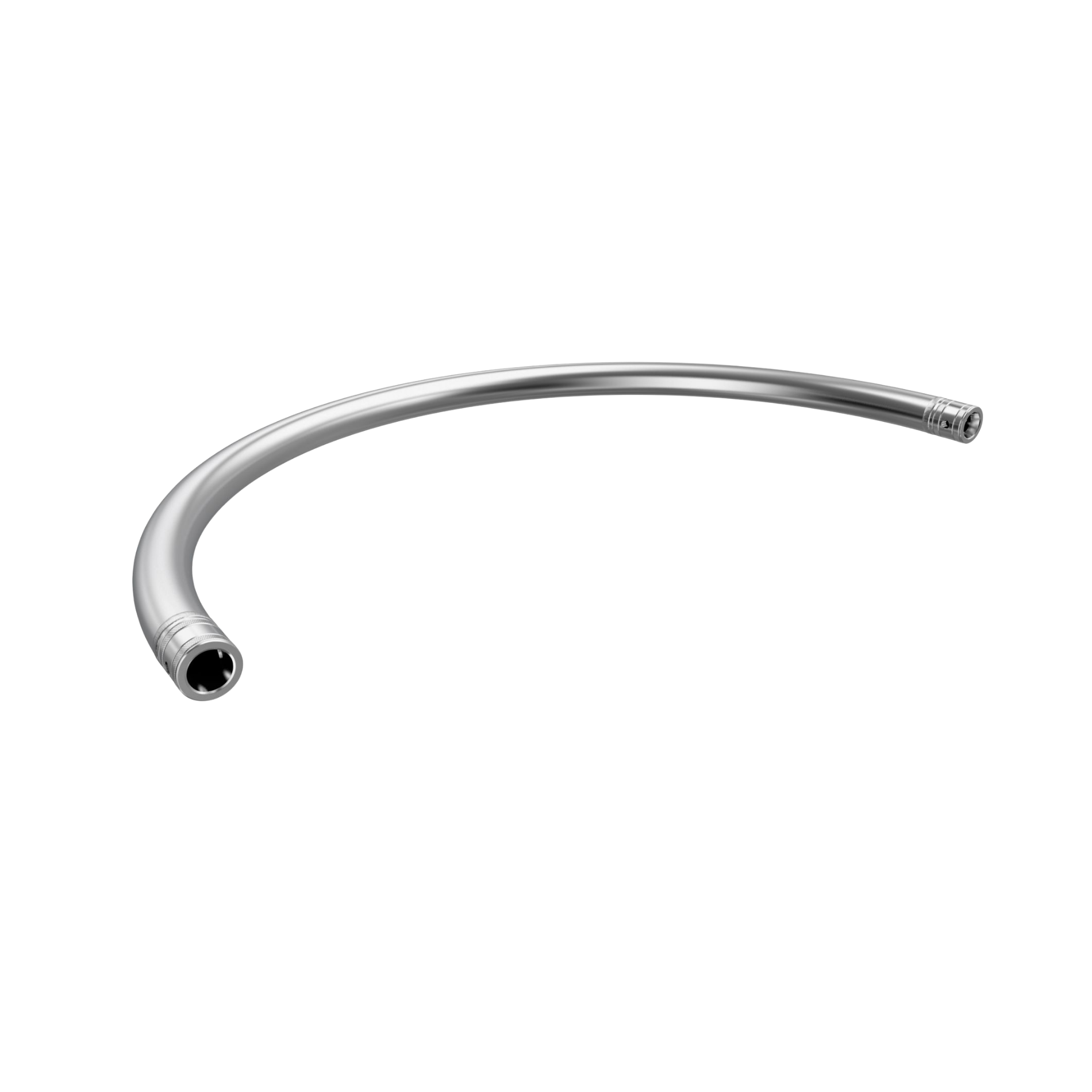

F01 50mmØ 0.5mR (1.0mØ) 180° Radial Tube with Spigots, Pins & R-Clips (2 parts to a Circle)

SKU: GT-F01R050-180

F01 50mmØ 0.5mR (1.0mØ) 180° Radial Tube with Spigots, Pins & R-Clips (2 parts to a Circle)

Not truly Truss as such, F01 50mmø Tubes are suitable for building frames and 3D forms where modularity is required and can take advantage of the myriad of 50mmø accessories.

The F01 Tubes are available in straight lengths, curves, angles and the all-important 6 Way cube (“dice”) junction. Types of applications include sign frames, lighting suspension bars, bracing, suspension grids, lightweight 3D forms in retail display, theatres, schools, set-building, pubs and clubs, and building construction.

Custom components can be designed by the DQ team and made to order.

Product: GT-F01R050-180 Categories: , , Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Global Truss Manual

Download

F01 Single Tube Truss Information

Download

F01 Truss Load Table & Engineering Report

Download
