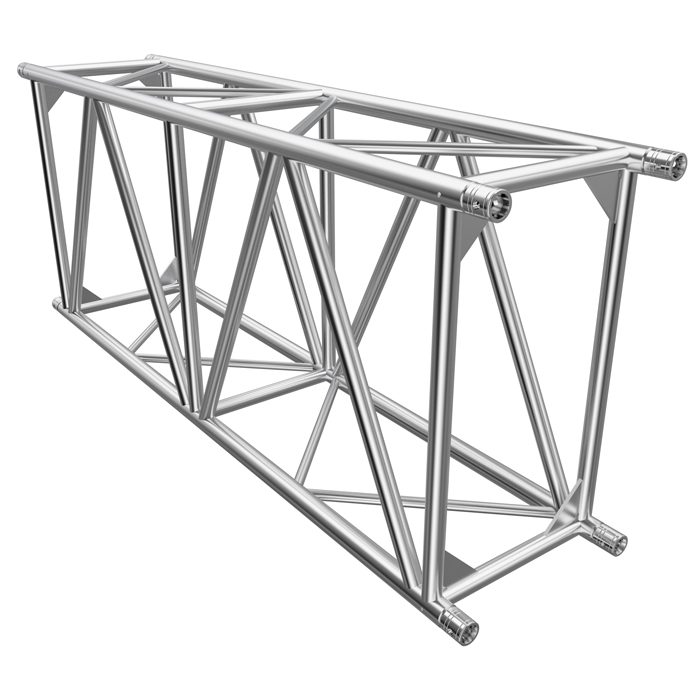

F104 Rectangular 3.0m Linear Truss with Spigots, Pins & R-Clips
SKU: GT-F104L300

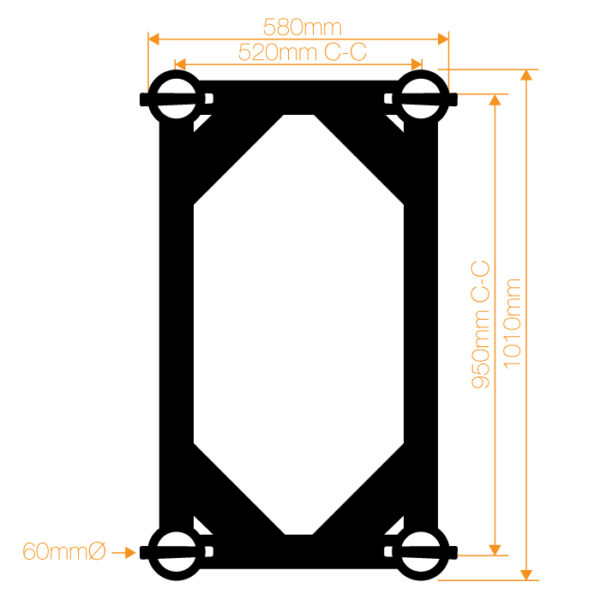

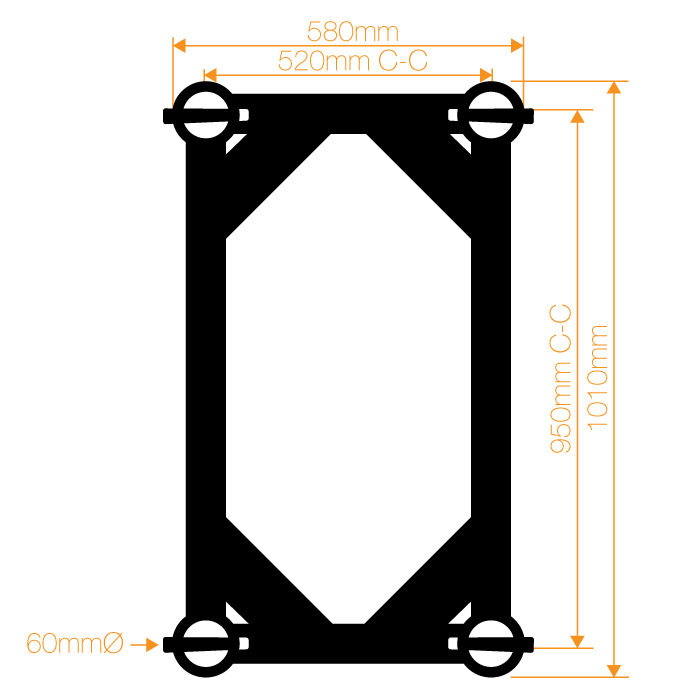

• Largest truss in the Global Truss range at 580mmW x 1010mmH
• Supports spans up to 40m with centre point loads exceeding 800kg
• Equipped with robust 60mmø x 4mm chords for maximum strength
• Suited for high-safety applications including aerial performances and heavy set pieces
• Commonly used in large concert stages, sporting venues, mother grids, and industrial setups
Description
F104 Rectangular Truss at 580mmW x 10100mmH is the largest in Global Truss’ range. You will find it being used anywhere as giant spans are necessary for events such as large concert stages, large sporting venues, as ‘mother grids’, industrial applications and more. It is used where high safety factors are required (e.g. high impact circus and aerial performances, very heavy set pieces in outdoor operatic settings, stunt performer applications). F104 Truss can span 40m whilst maintaining a maximum centre point load of 800kg+.
F104 Truss is the only type in the Global Truss range that uses a 60mmø (x 4mm) chord. This is one factor helping the truss achieve such high load capacities and such long spans.
| SPAN (m) | UDL (kg/m) | CPL (kg) | THIRD POINT | FOURTH POINT | FIFTH POINT |
|---|---|---|---|---|---|
| 6.0 | 1,144 | 4,605 | 2,641 | 1,487 | 1,486 |
| 7.0 | 977 | 4,294 | 2,508 | 1,436 | 1,436 |
| 8.0 | 852 | 4,016 | 2,382 | 1,388 | 1,387 |
| 9.0 | 770 | 3,766 | 2,265 | 1,341 | 1,340 |
| 10.0 | 715 | 3,541 | 2,155 | 1,295 | 1,295 |
| 11.0 | 649 | 3,337 | 2,053 | 1,252 | 1,251 |
| 12.0 | 584 | 3,152 | 1,959 | 1,210 | 1,209 |
| 13.0 | 524 | 2,982 | 1,870 | 1,170 | 1,169 |
| 14.0 | 469 | 2,827 | 1,787 | 1,131 | 1,130 |
| 15.0 | 420 | 2,685 | 1,709 | 1,094 | 1,094 |
| 16.0 | 375 | 2,553 | 1,637 | 1,059 | 1,058 |
| 17.0 | 330 | 2,431 | 1,568 | 1,025 | 1,024 |
| 18.0 | 292 | 2,318 | 1,504 | 992 | 992 |
| 19.0 | 259 | 2,212 | 1,443 | 961 | 956 |
| 20.0 | 232 | 2,114 | 1,385 | 931 | 912 |
| 21.0 | 208 | 2,021 | 1,331 | 902 | 871 |
| 22.0 | 188 | 1,935 | 1,279 | 874 | 832 |
| 23.0 | 170 | 1,853 | 1,230 | 847 | 796 |
| 24.0 | 154 | 1,776 | 1,183 | 821 | 761 |
| 25.0 | 140 | 1,703 | 1,139 | 796 | 729 |
| 26.0 | 128 | 1,633 | 1,096 | 772 | 694 |
| 27.0 | 117 | 1,568 | 1,055 | 748 | 659 |
| 28.0 | 107 | 1,502 | 1,016 | 726 | 626 |
| 29.0 | 98 | 1,428 | 979 | 704 | 595 |
| 30.0 | 91 | 1,358 | 943 | 679 | 566 |
| 31.0 | 83 | 1,293 | 908 | 646 | 539 |
| 32.0 | 77 | 1,230 | 875 | 615 | 512 |
| 33.0 | 71 | 1,171 | 843 | 585 | 488 |
| 34.0 | 66 | 1,114 | 812 | 557 | 464 |
| 35.0 | 61 | 1,060 | 782 | 530 | 442 |
| 36.0 | 56 | 1,008 | 753 | 504 | 420 |
| 37.0 | 52 | 959 | 719 | 479 | 400 |
| 38.0 | 48 | 911 | 684 | 456 | 380 |
| 39.0 | 44 | 866 | 649 | 433 | 361 |
| 40.0 | 41 | 822 | 616 | 411 | 342 |
