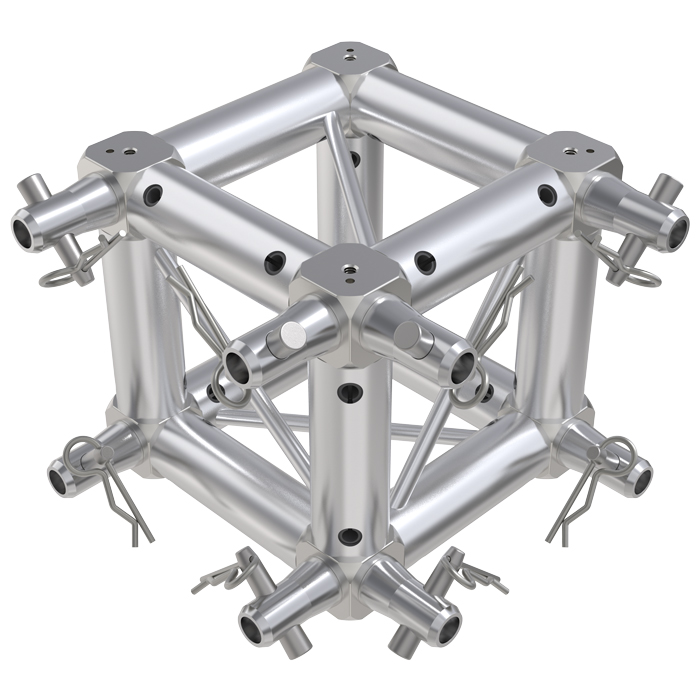

F14 Square Truss 6 Way Cube Junction with Half-Spigot Connectors for 2 Faces

SKU: GT-F14JBOX

F14 Tiny Truss is the smallest of the Global Truss family at only 100mm x 100mm with 20mmø chords.

Predominantly used for decorative purposes such as retail displays, museum exhibits, and wedding decoration displays, the “scaled-down” F14 Truss is dainty in appearance whilst still fulfilling a very light duty structural purpose. The square truss is available in straight lengths, circular components and a cube junction, enabling the construction of straight runs, rectangles, circles and arches.

In addition, tiny 20mmø couplers are available to attach items to the chords. Custom components can be designed by the DQ team and made to order.

Product: GT-F14JBOX Categories: F14 Tiny Truss, F14 Tiny Truss Junctions, Global Truss Tags: Alloy Truss, design quintessence, stage light trusses, Custom Truss Box Truss, global truss catalog, titanav, GT F14JBOX, square truss, Tent Truss, lighting truss parts, Aluminium Truss, dj city, stage lighting mounting bars, Tri Truss, global truss distributor, titanav truss, F14-14 Truss, global truss clamps, lighting truss system price list, box global truss, Steel Truss, dq, stage lighting rig, Triangular Truss, global truss f34 load data, truss coupler clamp, stage lighting truss systems, 50mm truss clamp, lighting truss with lights, box global, Concert Truss, entertainment lighting, stage lighting truss design, Flat Truss, global truss f44, truss lighting systems, Clamps, lighting trusses, AV Truss, entertainment production, stage lighting trusses, Ladder Truss, global truss for sale, truss plate, globaltruss, Couplers, phantos, Truss Grid, entertainment rigging, stage truss design, lighting truss, Theatre Truss, global truss pinnex, truss structures, Cosmic Truss, DNA truss, pre-rig truss, Lighting Grid, entertainment rigging australia, stage truss manufacturers, Tiny Truss, truss, Space Frame, light truss, when is a rigger required, Prolyte, Stage clamps, production, Lighting Bar, entertainment rigging companies, stage truss systems, Mini Box Truss, global truss, Touring Truss, lighting clamps, Bolt Truss, Truss Australia, rigger course, Truss Tube, event rigging, stage trusses, Min Square Truss, stage truss, PRT, lighting trigger clamps, 300mm Truss, audio brisbane, rigging, Lighting Tube, global truss accessories, store dj, 100 Truss, alutruss, Truss Circle, lighting truss australia, Plus Truss, box truss design, stage design, Circus Truss, global truss australia, theatre rigging, Box Truss 100 Mini, stage lighting truss, Truss Hinge, lighting truss dj, Cube

Global Truss Manual

F14 Tiny Square Truss Information Sheet

F14 Square Truss Load Table & TÜV Engineering Certificate

	Title	Type	Size
	F14-TINY-TRUSS_1	application/pdf	997 KB

Additional information

Chord Material	EN AW 6082 T6
Endsocketmaterial	EN AW 6061 T6
Bracing Material	EN AW 6061 T4
Conical Spigot Material	EN AW 2011
Steelpinmaterial	8.8 Grade
Chord Dimension	20mmØ x 2mm
Bracing Dimensions	6mmØ Bar
Connectors Included	4 x Conical Spigots, Pins & R-Clips
External Length (mm)	100
External Depth (mm)	100
External Height (mm)	100
Pack Length	140
Pack Depth	140
Pack Height	150
Net weight of the product (kg)	0.8
Pack Weight	1
Cubic volume (m³)	0.0029
Product Type	Junctions
