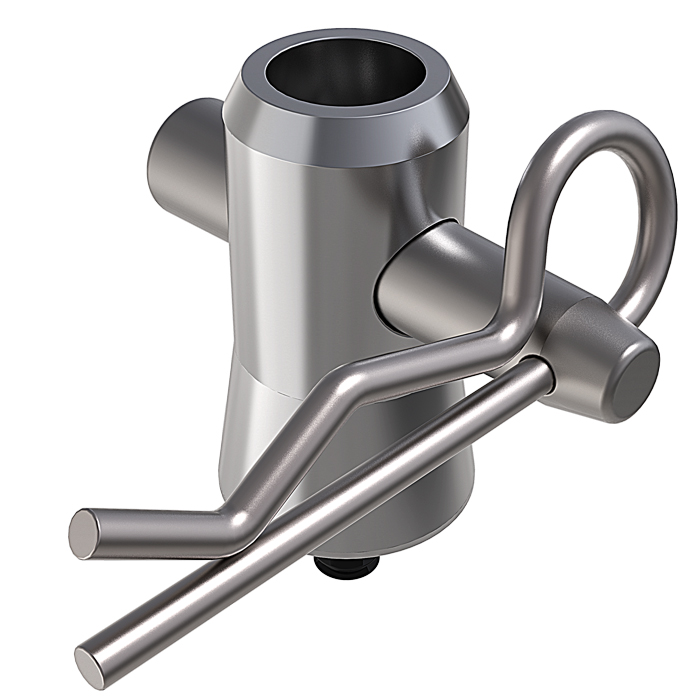

F14 Truss Cube Junction Half-Spigot Connector with M4x13 Bolt, Pin & R-Clip

SKU: GT-A-CON-BXSP0

Global Truss

• Specifically designed for the compact 100mm x 100mm F14 truss system with 20mm chords
• Supplied with M4x13 bolt, pin, and R-clip for secure and efficient assembly
• Enables construction of diverse shapes: straight runs, rectangles, circles, and arches
• Compatible with 20mm couplers to attach accessories and customize setups
• Ideal for lightweight decorative and light structural use in retail, museum, and event displays

External Length (mm)
External Depth/Width (mm)
External Height (mm)
Finish

Various

Load Capacity (kg)
Truss Style (mm)



Chord Style (mm)



Diameter (mm)
Pack Length (m)
Pack Depth (m)



Pack Height (m)



Pack Weight (kg)



Net Weight (kg)
Product Type

Connector & Fastener Parts

Bracing Dimensions (mm)



Chord Dimensions



SKU: GT-A-CON-BXSP0 Categories: , Brand:

Description

The F14 Truss Cube Junction Half-Spigot Connector is a precision-engineered component designed for use within the compact F14 truss system, featuring 100mm x 100mm dimensions with 20mm diameter chords. This connector enables secure and stable connections in lightweight, decorative, and light-duty structural assemblies such as retail displays, museum exhibits, and wedding decorations.

Supplied complete with an M4x13 bolt, pin, and R-clip, it facilitates quick and reliable fastening to the F14 cube junction. The F14 truss system supports construction of various shapes, including straight runs, rectangles, circles, and arches, offering versatile design possibilities.

Compatible with 20mm diameter couplers, this connector forms part of a comprehensive modular system tailored for aesthetic and functional applications.
