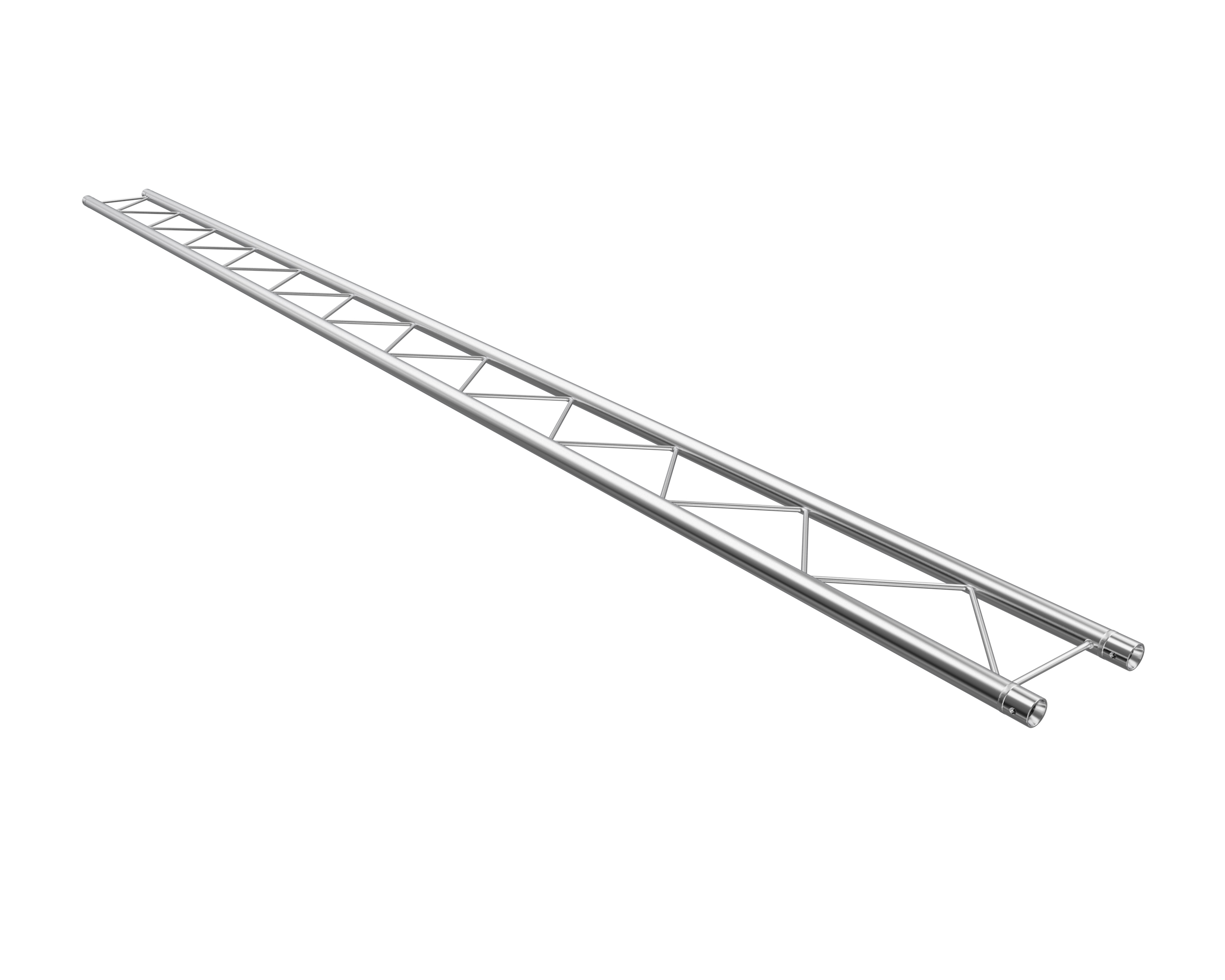

F22 Flat 3.5m Linear Truss with Spigots, Pins & R-Clips

SKU: GT-F22L350

Global Truss

• F22 is a TÜV-certified 2-point truss system
• External dimension: 22 cm
• Ideal for smaller, low-load structures – grid ceilings, exhibition stands, fixed installs
• Supports spans up to 7 metres in grid configurations
• Made from 35×1.6 mm aluminium chords with 8 mm diagonal bracing
• Conical connectors included for quick and secure assembly

External Length (mm)

External Depth/Width (mm)

External Height (mm)

220

Finish

Raw

Load Capacity (kg)
Truss Style (mm)

220

Chord Style (mm)

Flat

Diameter (mm)
Pack Length (m)

3520

Pack Depth (m)

50

Pack Height (m)

230

Pack Weight (kg)

7.8

Net Weight (kg)
Product Type

Linear

Bracing Dimensions (mm)

35mmØ x 1.6mm

Chord Dimensions

8mmØ Bar

SKU: GT-F22L350 Categories: , , Brand:

Description

The F22 truss system from Global Truss is a TÜV-certified 2-point system with an external dimension of 22 cm. This system is ideal for smaller, low-load structures used as grid ceilings for exhibition stands and fixed installations. Spans of up to 7 meters are possible when used in a grid configuration.

The F22 truss is constructed from 35×1.6 mm aluminum chords and 8 mm diagonal bracing. The trusses are connected with conical connectors, which are included in the delivery.
