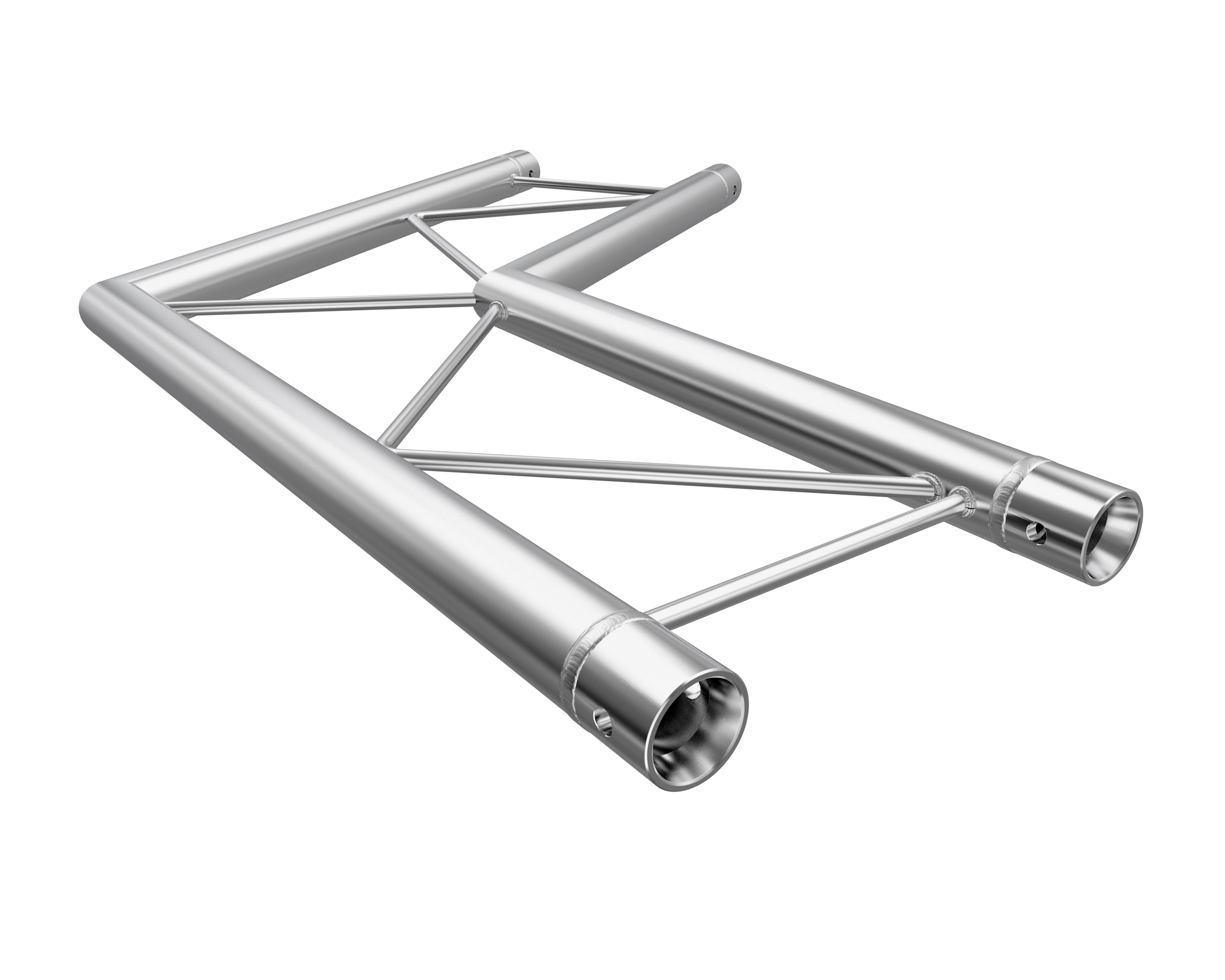

F22 Flat Truss 2 Way 120° Corner with Spigots, Pins & R-Clips - Horizontal

F22 Flat Truss 2 Way 120° Corner with Spigots, Pins & R-Clips – Horizontal

SKU: GT-F22J22-H

Global Truss

• TÜV-approved 2-point truss system
• Compact 22 cm external dimension
• Ideal for small, low-load constructions – exhibition stands and fixed installs
• Supports spans up to 7 metres
• Made with 35 x 1.6 mm aluminium chords and 8 mm bracing
• Includes conical connectors for quick assembly

Add to Quote Request
External Length (mm)

External Depth/Width (mm)

External Height (mm)

220
Finish

Raw
Load Capacity (kg)
Truss Style (mm)

220
Chord Style (mm)

Flat
Diameter (mm)
Pack Length (m)

770
Pack Depth (m)

563
Pack Height (m)

45
Pack Weight (kg)


Net Weight (kg)
Product Type

Junction
Bracing Dimensions (mm)

35mmØ x 1.6mm
Chord Dimensions

8mmØ Bar
SKU: GT-F22J22-H Categories: , , Brand:

Description

The F22 truss series by Global Truss is a TÜV approved 2-point system with an external dimension of 22cm. The series is perfect for small constructions with a low load for exhibition stands and permanent installations. A maximum span of up to 7 meters can be used.

The F22 truss is built with 35 x 1.6mm main tubes and 8mm diagonal braces of aluminium. The truss lengths are connected with the included conical connectors.
