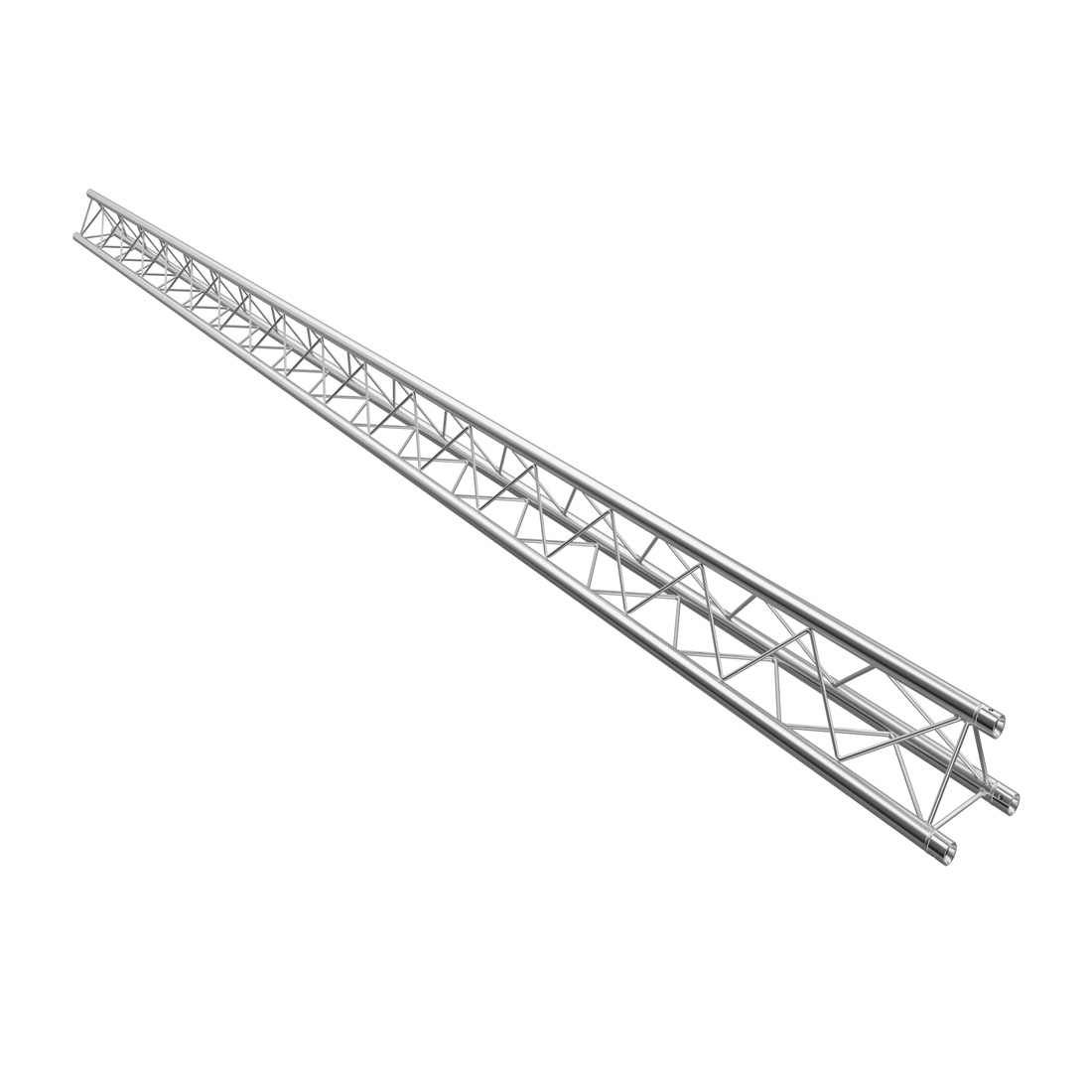

F23 Tri 5.0m Linear Truss with Spigots, Pins & R-Clips
SKU: GT-F23L500F23 Triangular Mini Truss is a light-duty truss with an outside dimension of 220mm and 35mmø chords. This Truss is appropriate where light-duty structural capacity is necessary, but space is limited.
F23 Tri Truss has a more subtle aesthetic than larger Trusses. It is ideal for retail displays, museum exhibits, trade fairs and exhibitions, signage and banners, pubs, clubs and restaurants. The availability of a wide range of straight lengths, radials and junctions gives you the ability to build an enormous range of shapes and forms using F23 Tri Truss.
A range of 35mmø clamping accessories complements the Truss components. Custom components can be designed by the DQ team and made to order.
Product: GT-F23L500
Categories: F23 Mini Tri Truss, F23 Mini Tri Truss Straight Lengths, Global Truss
Tags: global truss distributor, titanav truss, Custom Truss Box Truss, lighting truss system price list, square truss, Tent Truss, dq, stage lighting rig, FD23, Aluminium Truss, global truss f34 load data, truss coupler clamp, Tri Truss, lighting truss with lights, global truss clamps, 50mm truss clamp, entertainment lighting, stage lighting truss design, E20D, Steel Truss, global truss f44, truss lighting systems, Triangular Truss, lighting trusses, stage lighting truss systems, Clamps, entertainment production, stage lighting trusses, Tri Truss 220, Concert Truss, global truss for sale, truss plate, Flat Truss, phantos, Couplers, entertainment rigging, stage truss design, F23-0m, AV Truss, global truss pinnex, truss structures, Ladder Truss, pre-rig truss, globaltruss, DNA truss, entertainment rigging australia, stage truss manufacturers, Truss Grid, light truss, when is a rigger required, lighting truss, Theatre Truss, production, Cosmic Truss, Stage clamps, entertainment rigging companies, stage truss systems, Lighting Grid, lighting clamps, truss, Space Frame, rigger course, Prolyte, Truss Australia, event rigging, stage trusses, GT F23L500, Lighting Bar, lighting trigger clamps, global truss, Touring Truss, rigging, Bolt Truss, audio brisbane, global truss accessories, store dj, Truss Tube, lighting truss australia, stage truss, PRT, stage design, 300mm Truss, box truss design, global truss australia, theatre rigging, Lighting Tube, lighting truss dj, alutruss, Truss Circle, stage light trusses, 220 Tri Truss, Plus Truss, design quintessence, global truss catalog, titanav, Circus Truss, lighting truss parts, stage lighting truss, Truss Hinge, stage lighting mounting bars, 220 Triangular Truss, Alloy Truss, dj city
Global Truss Manual
DownloadF23 Mini Tri Truss Information Sheet
DownloadF23 Tri Truss Load Tables & TÜV Engineering Certificate
DownloadDescription
SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|
2.0 | 129 | 65 |
3.0 | 127 | 42 |
4.0 | 124 | 31 |
5.0 | 121 | 24 |
6.0 | 118 | 20 |
7.0 | 100 | 17 |
8.0 | 86 | 14 |
9.0 | 74 | 12 |
10.0 | 65 | 11 |
Title | Type | Size | |
---|---|---|---|
![]() |
F23-MINI-TRI-TRUSS_1 | application/pdf | 1,005 KB |
Additional information
Chord Material | |
---|---|
Endsocketmaterial | |
Bracing Material | |
Conical Spigot Material | |
Steelpinmaterial | |
Chord Dimension | |
Bracing Dimensions | |
Connectors Included | |
External Length (mm) | |
External Depth (mm) | |
External Height (mm) | |
Pack Length | |
Pack Depth | |
Pack Height | |
Pack Weight | |
Cubic volume (m³) | |
Product Type | Linear |
