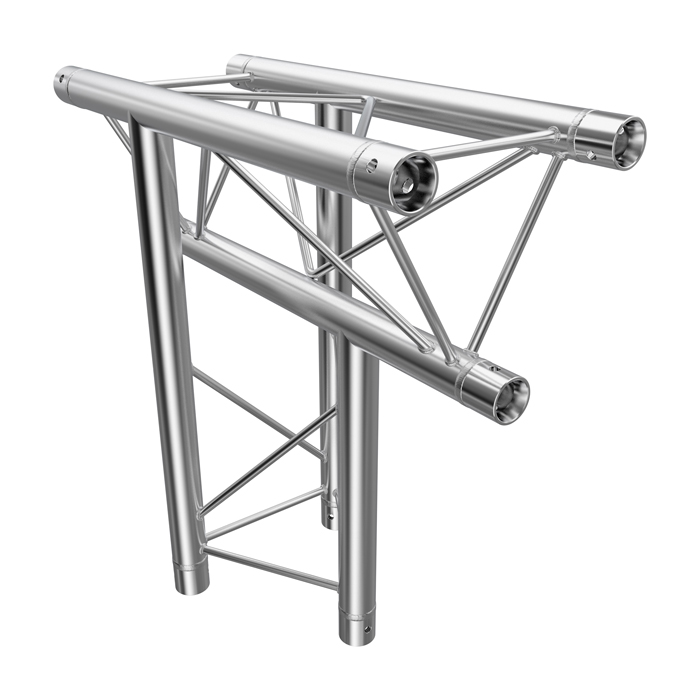

F23 Tri Truss 3 Way Vertical T-Junction (Apex Down) with Spigots, Pins & R-Clips
SKU: GT-F23J38F23 Triangular Mini Truss is a light-duty truss with an outside dimension of 220mm and 35mmø chords. This Truss is appropriate where light-duty structural capacity is necessary, but space is limited.
F23 Tri Truss has a more subtle aesthetic than larger Trusses. It is ideal for retail displays, museum exhibits, trade fairs and exhibitions, signage and banners, pubs, clubs and restaurants. The availability of a wide range of straight lengths, radials and junctions gives you the ability to build an enormous range of shapes and forms using F23 Tri Truss.
A range of 35mmø clamping accessories complements the Truss components. Custom components can be designed by the DQ team and made to order.
Product: GT-F23J38
Categories: F23 Mini Tri Truss, F23 Mini Tri Truss Junctions, Global Truss
Tags: Alloy Truss, box truss design, stage design, Custom Truss Box Truss, global truss australia, theatre rigging, square truss, Tent Truss, lighting truss dj, Aluminium Truss, design quintessence, stage light trusses, 220 Tri Truss, Tri Truss, global truss catalog, titanav, global truss clamps, lighting truss parts, Steel Truss, dj city, stage lighting mounting bars, 220 Triangular Truss, Triangular Truss, global truss distributor, titanav truss, stage lighting truss systems, lighting truss system price list, Concert Truss, dq, stage lighting rig, FD23, Flat Truss, global truss f34 load data, truss coupler clamp, 50mm truss clamp, lighting truss with lights, AV Truss, entertainment lighting, stage lighting truss design, E20D, Ladder Truss, global truss f44, truss lighting systems, globaltruss, Clamps, lighting trusses, Truss Grid, entertainment production, stage lighting trusses, Tri Truss 220, lighting truss, Theatre Truss, global truss for sale, truss plate, Cosmic Truss, Couplers, phantos, Lighting Grid, entertainment rigging, stage truss design, truss, Space Frame, global truss pinnex, truss structures, Prolyte, DNA truss, pre-rig truss, Lighting Bar, entertainment rigging australia, stage truss manufacturers, global truss, Touring Truss, light truss, when is a rigger required, Bolt Truss, Stage clamps, production, Truss Tube, entertainment rigging companies, stage truss systems, GT F23J38, stage truss, PRT, lighting clamps, 300mm Truss, Truss Australia, rigger course, Lighting Tube, event rigging, stage trusses, F23 3 Way Vertical T-Junction -3 Way Vertical T-Junction, alutruss, Truss Circle, lighting trigger clamps, Plus Truss, audio brisbane, rigging, Circus Truss, global truss accessories, store dj, stage lighting truss, Truss Hinge, lighting truss australia
Description
SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|
2.0 | 129 | 65 |
3.0 | 127 | 42 |
4.0 | 124 | 31 |
5.0 | 121 | 24 |
6.0 | 118 | 20 |
7.0 | 100 | 17 |
8.0 | 86 | 14 |
9.0 | 74 | 12 |
10.0 | 65 | 11 |
Title | Type | Size | |
---|---|---|---|
F23-MINI-TRI-TRUSS_1 | application/pdf | 1,005 KB |
