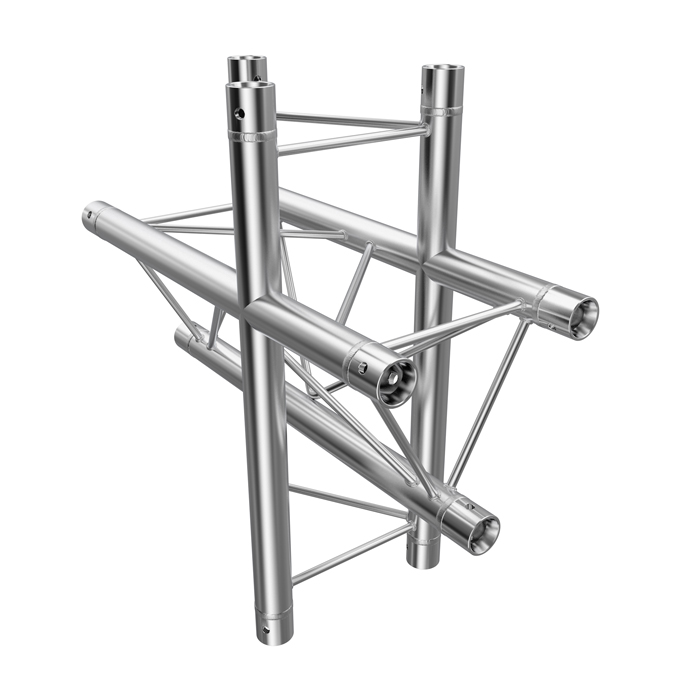

F23 Tri Truss 4 Way Vertical X-Junction with Spigots, Pins & R-Clips
SKU: GT-F23J47F23 Triangular Mini Truss is a light-duty truss with an outside dimension of 220mm and 35mmø chords. This Truss is appropriate where light-duty structural capacity is necessary, but space is limited.
F23 Tri Truss has a more subtle aesthetic than larger Trusses. It is ideal for retail displays, museum exhibits, trade fairs and exhibitions, signage and banners, pubs, clubs and restaurants. The availability of a wide range of straight lengths, radials and junctions gives you the ability to build an enormous range of shapes and forms using F23 Tri Truss.
A range of 35mmø clamping accessories complements the Truss components. Custom components can be designed by the DQ team and made to order.
Product: GT-F23J47
Categories: F23 Mini Tri Truss, F23 Mini Tri Truss Junctions, Global Truss
Tags: Flat Truss, global truss for sale, truss plate, Couplers, phantos, AV Truss, entertainment rigging, stage truss design, Ladder Truss, global truss pinnex, truss structures, globaltruss, DNA truss, pre-rig truss, 220 Tri Truss, Truss Grid, entertainment rigging australia, stage truss manufacturers, lighting truss, Theatre Truss, light truss, when is a rigger required, Cosmic Truss, Stage clamps, production, 220 Triangular Truss, Lighting Grid, entertainment rigging companies, stage truss systems, truss, Space Frame, lighting clamps, Prolyte, Truss Australia, rigger course, FD23, Lighting Bar, event rigging, stage trusses, global truss, Touring Truss, lighting trigger clamps, Bolt Truss, audio brisbane, rigging, E20D, Truss Tube, global truss accessories, store dj, stage truss, PRT, lighting truss australia, 300mm Truss, box truss design, stage design, Tri Truss 220, Lighting Tube, global truss australia, theatre rigging, alutruss, Truss Circle, lighting truss dj, Plus Truss, design quintessence, stage light trusses, GT F23J47, Circus Truss, global truss catalog, titanav, stage lighting truss, Truss Hinge, lighting truss parts, Alloy Truss, dj city, stage lighting mounting bars, F23-47 F, Custom Truss Box Truss, global truss distributor, titanav truss, square truss, Tent Truss, lighting truss system price list, Aluminium Truss, dq, stage lighting rig, Tri Truss, global truss f34 load data, truss coupler clamp, global truss clamps, 50mm truss clamp, lighting truss with lights, Steel Truss, entertainment lighting, stage lighting truss design, Triangular Truss, global truss f44, truss lighting systems, stage lighting truss systems, Clamps, lighting trusses, Concert Truss, entertainment production, stage lighting trusses
Description
SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|
2.0 | 129 | 65 |
3.0 | 127 | 42 |
4.0 | 124 | 31 |
5.0 | 121 | 24 |
6.0 | 118 | 20 |
7.0 | 100 | 17 |
8.0 | 86 | 14 |
9.0 | 74 | 12 |
10.0 | 65 | 11 |
Title | Type | Size | |
---|---|---|---|
