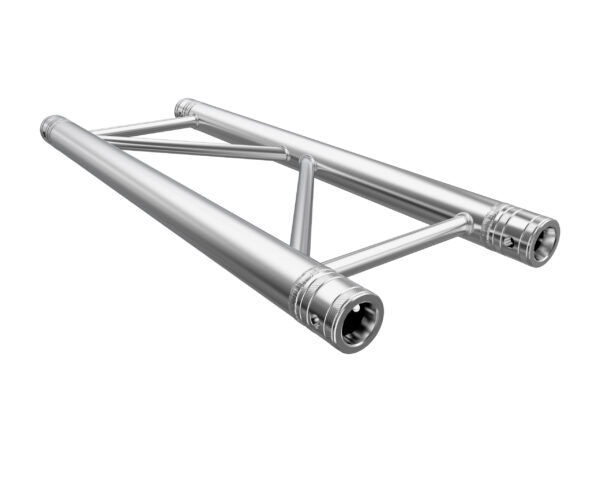

F32 Flat 0.75m Linear Truss with Spigots, Pins & R-Clips

SKU: GT-F32L075

Global Truss

• 290 mm wide ladder truss with 50 mmØ (2 mm wall) aluminium chords
• Excellent vertical load-bearing capacity; add bracing for lateral reinforcement
• TÜV certified for structural integrity and manufacturing quality
• Available in straights, junctions, and curved (circle) truss formats
• Works with standard 50 mmØ clamps and accessories; custom designs available

External Length (mm)

External Depth/Width (mm)

External Height (mm)

50

Finish

Raw

Load Capacity (kg)
Truss Style (mm)

290

Chord Style (mm)

Flat

Diameter (mm)
Pack Length (m)

520

Pack Depth (m)

310

Pack Height (m)

60

Pack Weight (kg)

3

Net Weight (kg)

2.8

Product Type

Linear

Bracing Dimensions (mm)

50mmØ x 2mm

Chord Dimensions

20mmØ x 2mm

SKU: GT-F32L075 Categories: , Brand:

Description

F32 Flat Truss, also referred to as ladder truss, is a medium-duty aluminium truss system with a 290 mm outer width and 50 mmØ (2 mm wall) main chords. Designed for applications where vertical strength and minimal weight are key, it’s ideal for use in theatres, clubs, houses of worship, schools, conference centres, and exhibition spaces. While it has limited lateral resistance due to its two-chord design, bracing solutions can be added to create strong and lightweight rigging grids. The F32 range includes straight truss lengths, junctions, and curved (circle) truss segments for versatile structure design. All truss is manufactured to the highest standards by Global Truss and comes TÜV certified for safety and quality assurance. Compatible with 50 mmØ clamps and accessories, with custom components available on request through Design Quintessence.
