F32 Flat Truss 3 Way T-Junction with Spigots, Pins & R-Clips – Vertical

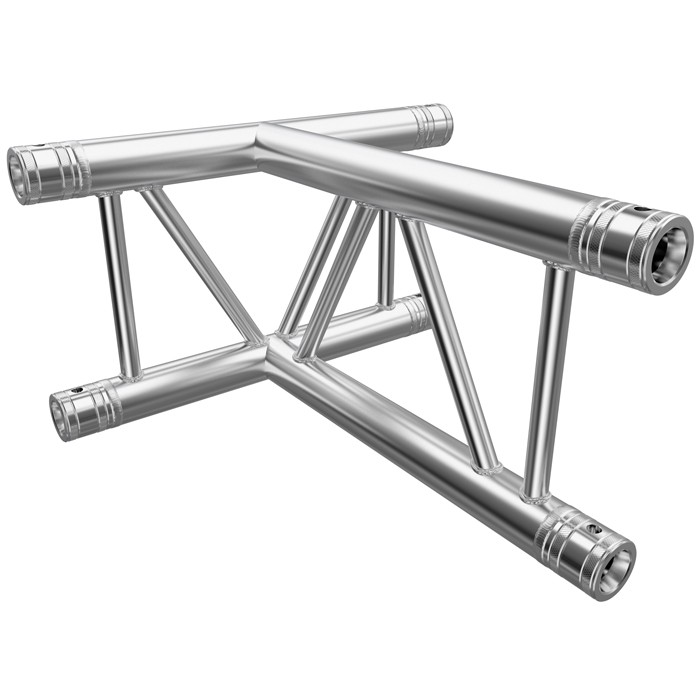

Name: F32 Flat Truss 3 Way T-Junction with Spigots, Pins &amp; R-Clips - Vertical
SKU: GT-F32J36-V
Availability: InStock

SKU: GT-F32J36-V

F32 Truss is a medium-duty flat or “ladder” style truss that is 290mm wide OD with 50mmø chords. Flat Truss is quite strong in the vertical plane but, with only two chords, it does not offer a lot of resistance in the lateral plane without amy bracing.

When bracing is used, however, F32 Flat Truss can provide a surprisingly strong yet lightweight grid solution. It is suited for use in theatres, clubs, houses of worship, conference centres, schools and other buildings such as suspending curtains/drapes, bracing, lighting and cable reticulation. Versatility is assured by the range of straight lengths, junctions and radials on hand.

A great number of 50mmø accessories are compatible with F32 Flat Truss. Custom components can be designed by the DQ team and made to order.

Product: GT-F32J36-V Categories: F32 Flat Truss, F32 Flat Truss Vertical Junctions, Global Truss Tags: Lighting Tube, event rigging, stage trusses, stage lighting truss, Truss Circle, lighting trigger clamps, Plus Truss, audio brisbane, rigging, Circus Truss, global truss accessories, store dj, square truss, Truss Hinge, lighting truss australia, Alloy Truss, box truss design, stage design, Custom Truss Box Truss, global truss australia, theatre rigging, global truss clamps, Tent Truss, lighting truss dj, Aluminium Truss, design quintessence, stage light trusses, 290 Flat Truss, Tri Truss, global truss catalog, titanav, stage lighting truss systems, lighting truss parts, Steel Truss, dj city, stage lighting mounting bars, 290 Ladder Truss, Triangular Truss, global truss distributor, titanav truss, lighting truss system price list, Concert Truss, dq, stage lighting rig, FD32, Flat Truss, global truss f34 load data, truss coupler clamp, 50mm truss clamp, lighting truss with lights, AV Truss, entertainment lighting, stage lighting truss design, HD32, lighting truss, Ladder Truss, global truss f44, truss lighting systems, globaltruss, Clamps, lighting trusses, Truss Grid, entertainment production, stage lighting trusses, Flat Truss 290, truss, Theatre Truss, global truss for sale, truss plate, Cosmic Truss, Couplers, phantos, Lighting Grid, entertainment rigging, stage truss design, F32 3 Way T-Junction -3 Way T, global truss, Space Frame, global truss pinnex, truss structures, Prolyte, DNA truss, pre-rig truss, Lighting Bar, entertainment rigging australia, stage truss manufacturers, stage truss, Touring Truss, light truss, when is a rigger required, Bolt Truss, Stage clamps, production, Truss Tube, entertainment rigging companies, stage truss systems, GT F32J36-V, alutruss, PRT, lighting clamps, 300mm Truss, Truss Australia, rigger course

F32 Flat Truss Information Sheet

Download

	Title	Type	Size
	F32-FLAT-TRUSS_1	application/pdf	1,004 KB

Additional information

Chord Material	EN AW 6082 T6
Endsocketmaterial	EN AW 6082 T6
Bracing Material	EN AW 6082 T6
Conical Spigot Material	EN AW 2011
Steelpinmaterial	8.8 Grade
Chord Dimension	50mmØ x 2mm
Bracing Dimensions	20mmØ x 2mm
Connectors Included	2 x Conical Spigots, Pins & R-Clips
External Length (mm)	500
External Depth (mm)	500
External Height (mm)	290
Pack Length	510
Pack Depth	520
Pack Height	310
Net weight of the product (kg)	4.3
Pack Weight	5.6
Cubic volume (m³)	0.0822
Product Type	Vertical Junctions
