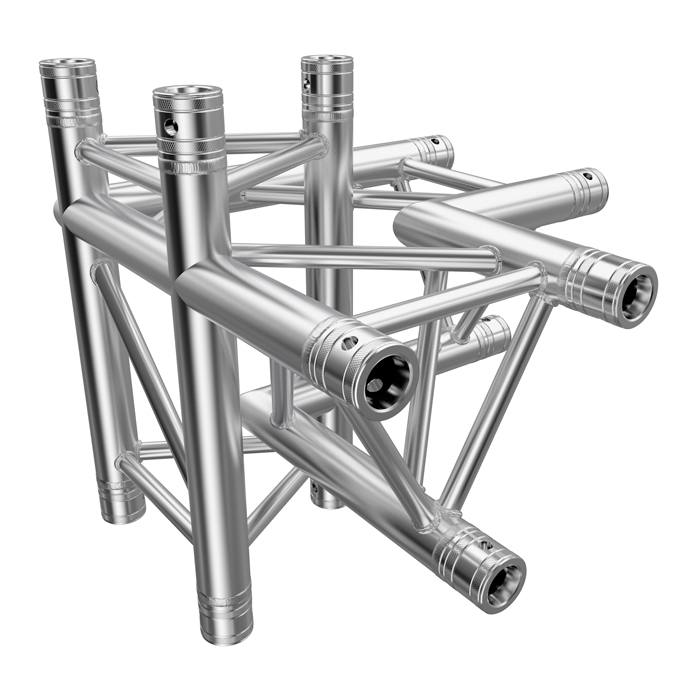

F33 Tri Truss 4 Way 90° Horizontal Truss Corner to Vertical Junction (Up & Down) with Spigots, Pins & R-Clips – Right
SKU: GT-F33J44F33 Triangular Truss is a medium-duty truss with an outside dimension of 290mm and 50mmø chords. With good strength and weight vs cost rations, F33 Truss offers significant bang for buck.
Ideally found in houses of worship, schools, clubs, theatres, pubs and clubs, conference centres, museums, exhibitions and retail centres. Application types include arches, entry structures, display stands, signage and banner frames, LED panel frames, suspend lighting and AV equipment, projection screen frames, suspend drapes, etc.
Versatility is assured by the range of straight lengths, junctions and radials on hand and, of course, all the 50mmø accessories at your fingertips.
Custom components can be designed by the DQ team and made to order.
Product: GT-F33J44
Categories: F33 Tri Truss Junctions, F33 Tri Truss, Global Truss
Tags: global truss clamps, Truss Hinge, lighting truss dj, Alloy Truss, design quintessence, stage light trusses, 290 Tri Truss, Custom Truss Box Truss, global truss catalog, titanav, stage lighting truss systems, Tent Truss, lighting truss parts, Aluminium Truss, dj city, stage lighting mounting bars, 290 Triangular Truss, Tri Truss, global truss distributor, titanav truss, lighting truss system price list, Steel Truss, dq, stage lighting rig, FD33, Triangular Truss, global truss f34 load data, truss coupler clamp, 50mm truss clamp, lighting truss with lights, Concert Truss, entertainment lighting, stage lighting truss design, HD33, lighting truss, Flat Truss, global truss f44, truss lighting systems, Clamps, lighting trusses, AV Truss, entertainment production, stage lighting trusses, X30D, truss, Ladder Truss, global truss for sale, truss plate, globaltruss, Couplers, phantos, Truss Grid, entertainment rigging, stage truss design, H30D, global truss, Theatre Truss, global truss pinnex, truss structures, Cosmic Truss, DNA truss, pre-rig truss, Lighting Grid, entertainment rigging australia, stage truss manufacturers, GT F33J44, stage truss, Space Frame, light truss, when is a rigger required, Prolyte, Stage clamps, production, Lighting Bar, entertainment rigging companies, stage truss systems, F33 4 Way 90° Hor Corner to Vert Junc -90° Hor Corner to Vert, alutruss, Touring Truss, lighting clamps, Bolt Truss, Truss Australia, rigger course, Truss Tube, event rigging, stage trusses, stage lighting truss, PRT, lighting trigger clamps, 300mm Truss, audio brisbane, rigging, Lighting Tube, global truss accessories, store dj, square truss, Truss Circle, lighting truss australia, Plus Truss, box truss design, stage design, Circus Truss, global truss australia, theatre rigging
Global Truss Manual
DownloadF33 Tri Truss Information Sheet
DownloadF33 Tri Truss Load Tables & TÜV Engineering Certificate
DownloadDescription
SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|
4.0 | 438 | 238 |
5.0 | 354 | 152 |
6.0 | 296 | 105 |
7.0 | 253 | 76 |
8.0 | 219 | 57 |
9.0 | 192 | 45 |
10.0 | 170 | 35 |
11.0 | 151 | 29 |
12.0 | 136 | 23 |
13.0 | 122 | 19 |
14.0 | 109 | 16 |
15.0 | 99 | 14 |
16.0 | 89 | 11 |
17.0 | 80 | 10 |
18.0 | 72 | 8 |
Title | Type | Size | |
---|---|---|---|
F33-TRI-TRUSS_1 | application/pdf | 1 MB |
Additional information
Chord Material | |
---|---|
Endsocketmaterial | |
Bracing Material | |
Conical Spigot Material | |
Steelpinmaterial | |
Chord Dimension | |
Bracing Dimensions | |
Connectors Included | |
External Length (mm) | |
External Depth (mm) | |
External Height (mm) | |
Pack Length | |
Pack Depth | |
Pack Height | |
Net weight of the product (kg) | |
Pack Weight | |
Cubic volume (m³) | |
Product Type | Junctions |
