F34 DNA 1.0m Linear Truss with Spigots, Pins & R-Clips

Description
F34 DNA 1.0m Linear Truss with Spigots, Pins & R-Clips - Made to order

Global Truss has developed the completely unique truss system. The new DNA Truss is designed to bring truss to the forefront of scenic designs, creating a stunning contrast to the traditional box truss. The DNA Truss is currently available to match the existing F34 truss range. Adaptor pieces can be attached which bring the DNA’s twist into a square ensuring the DNA truss can fit seamlessly into any F34 box truss designs. DNA Truss retains the standard tube 50mm diameter allowing them to fit together using a conical spigot and locking pin. The DNA truss system can be used for a variety of applications, such as exhibitions, corporate events, retail environments, and live productions.
Tube Material

EN AW 6082 T6

End Socket Material

EN AW 6082 T6

Conical Spigot Material

EN AW 2011

Steel Pin Material

8.8 Grade

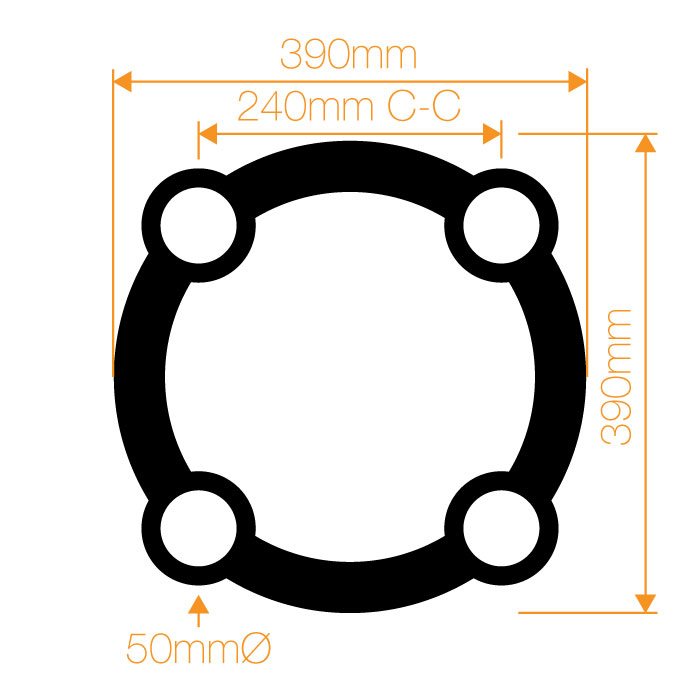

Chord Dimension

50mmØ x 2mm

Bracing Dimension

20mmØ x 2mm

Connectors Included

External length (mm)

External depth (mm)

External height (mm)

Cubic volume (m³)

Description

SPAN (m)CPL (kg)UDL (kg/m)
2.0328228
3.0198104
4.013854
5.010234
6.07821
7.06114
8.04810
9.0366.5
Full engineering report available upon request.
