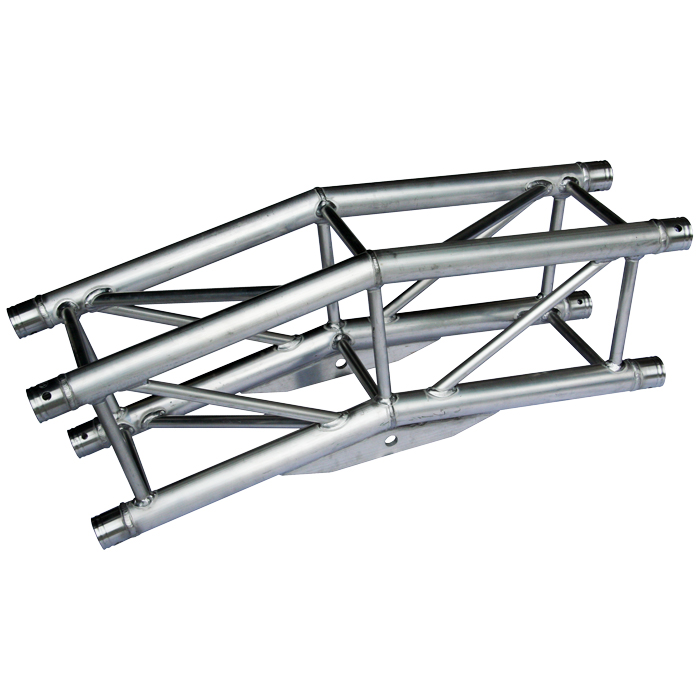

F34P Reinforced 162° Hoecker Flat Roof Pitch Corner with Spigots, Pins & R-Clips

Name: F34P Reinforced 162° Hoecker Flat Roof Pitch Corner with Spigots, Pins &amp; R-Clips
SKU: GT-F34PJ162
Availability: InStock

SKU: GT-F34PJ162

F34P Square Truss is the staple of the Global Truss diet. It is 290mm x 290mm Truss with 50mmø (x 2mm/3mm) chords and is easily the most commonly used Truss across all applications.

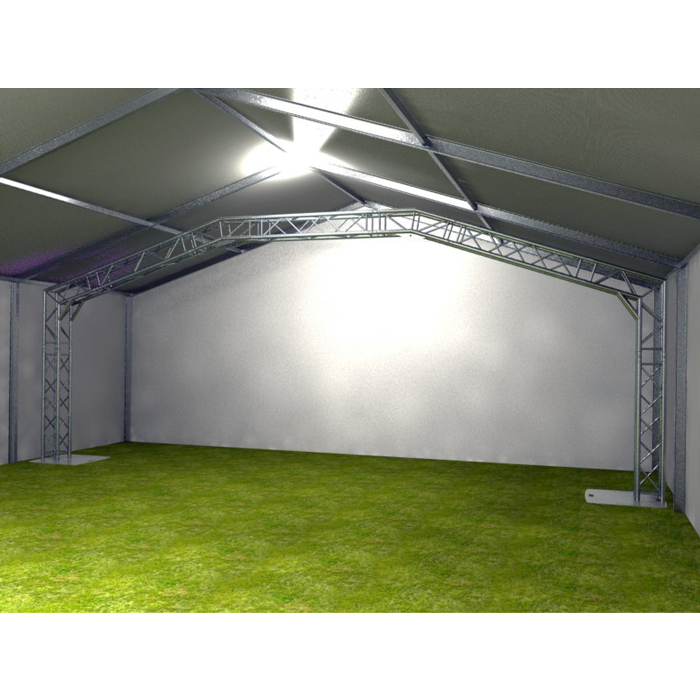

Extremely popular to the professional lighting and audiovisual production industries thanks to its extraordinary versatility and broad modularity, F34P Truss is put to use in a wide variety of permanent and temporary installations in schools, theatres, exhibition halls, conference centres, houses of worship, universities, museums, retail centres and sporting centres etc. applications vary from stage structures, LED screen frames, outdoor signage, virtual reality structures, fitness course structures, film & television sets and studios, brand reinforcement structures, display stand structures, art and museum exhibit structures, and suspending lighting, sound and video gear.

F34P Truss has the widest range of standard lengths, radials and junctions of the entire Global Truss range, but custom components can be designed by the DQ team and made to order.

Product: GT-F34PJ162 Categories: F34P Square Truss Junctions, F34P Square Truss, Global Truss Tags: Lighting Grid, entertainment rigging australia, stage truss manufacturers, scaffolding, gorilla scaffold, aluminium scaffold for sale sydney, cost to buy scaffolding, mtnemergencyservices, truss, Space Frame, light truss, when is a rigger required, kwikstage scaffolding, scaffolding for sale melbourne, cheap scaffolding hire, buy aluminium scaffold, medical marquee, Prolyte, Stage clamps, production, Box Truss 290, trestle scaffolding, scaffolding clamp, cost of scaffolding, how much does scaffolding cost to buy, Emergency Relief Structures, Lighting Bar, entertainment rigging companies, stage truss systems, scaffolding for sale, gumtree scaffolding, scaffold hire prices, aluminum scaffolding for sale, GT F34L025, modular hospitals, global truss, Touring Truss, lighting clamps, scaffold tower, scaffolding wheels, scaffolding for sale sydney, how much does scaffolding cost per week, Confined space equipment , Bolt Truss, Truss Australia, rigger course, box global truss, stair scaffold, scaffold hire perth, how much does a scaffold cost, mobile scaffold hire rates, Temporary Construction Solution, Truss Tube, event rigging, stage trusses, mobile scaffold, aluminium mobile scaffold, scaffolding hire cost, mobile aluminum scaffolding, alternative scaffolding, modular structures, stage truss, PRT, lighting trigger clamps, mobile scaffold for sale, acrow prop sizes, scaffold castor wheels, mobile scaffold hire sydney, Confined space rescue equipment , 300mm Truss, audio brisbane, rigging, box global, mini scaffold, scaffolding parts, portable scaffolding for sale, scaffolding cost calculator, modular hospital, Lighting Tube, global truss accessories, store dj, noise control, instant access scaffold, how much does scaffolding cost, average cost of scaffolding, isolation tents, emergency relief equipment, alutruss, Truss Circle, lighting truss australia, fd34, access scaffolding, scaffold hire sydney, scaffold beam clamp, brace scaffolding, Working at heights equipment , Plus Truss, box truss design, stage design, a frame scaffold, scaffolding erection, scaffolding cost per day, estimating scaffolding costs, emergency centres, Circus Truss, global truss australia, theatre rigging, aluminum scaffolding, temporary enclosures, scaffolding rental cost, mobile scaffold wheels for sale, isolation marquees, fold out shelters, stage lighting truss, Truss Hinge, lighting truss dj, sound proof fencing, mobile scaffold hire, how to price scaffolding, light duty scaffold, Vertical rescue equipment, Alloy Truss, design quintessence, stage light trusses, aluminium scaffolding for sale, scaffold hire adelaide, house scaffolding hire, double coupler, emergency centers, Custom Truss Box Truss, global truss catalog, titanav, scaffolding companies, construction scaffolding, scaffolding hire rates, how much does scaffolding cost per day, emergency tents, square truss, Tent Truss, lighting truss parts, global truss f34, noise barrier, scaffolding melbourne, mobile scaffold platform, buy mobile scaffold, Industrial & Emergency Response, Aluminium Truss, dj city, stage lighting mounting bars, painters scaffold, scaffolding components, scaffold castors, aluminium scaffold hire sydney, triage centers, Tri Truss, global truss distributor, titanav truss, portable scaffolding, active noise control, mobile scaffold wheels, cost for scaffolding rental, emergency marquee, global truss clamps, lighting truss system price list, scaffolding platform, scaffold hire melbourne, price for scaffolding rental, aluminium scaffold components, Gas detection equipment, Steel Truss, dq, stage lighting rig, modular scaffold, scaffolding for sale perth, adjustable scaffold wheels, mobile scaffold hire price, triage centres, Triangular Truss, global truss f34 load data, truss coupler clamp, scaffolding types, sound barrier fence, aluminium scaffold melbourne, folding scaffolding, marquee, stage lighting truss systems, 50mm truss clamp, lighting truss with lights, roof scaffolding, scaffold hire brisbane, mobile aluminium scaffolding for sale, mobile scaffolding safety, emergency response tent, Concert Truss, entertainment lighting, stage lighting truss design, acoustic fence panels, scaffolding rental, mobile scaffold sydney, hire painting scaffolding, emergency shelters, Flat Truss, global truss f44, truss lighting systems, acoustic fencing, scaffolding hire, scaffolding for sale brisbane, average price for scaffolding, isolation stretcher chamber, Clamps, lighting trusses, 290 Box Truss, scaffolding supplies, buy scaffolding, scaffold hire cost per week, aluminium scaffolding parts, emergency response marquee, AV Truss, entertainment production, stage lighting trusses, building scaffold, buy scaffolding sydney, how much does it cost for scaffolding, aluminium scaffolding brisbane, temporary shelters, Ladder Truss, global truss for sale, truss plate, scaffolding ladder, mr scaffold, aluminum mobile scaffolding, cost of scaffolding house, medical tents, globaltruss, Couplers, phantos, 290 Square Truss, quick stage scaffold, scaffolding sydney, scaffolding installation cost, mobile scaffolding parts, emergency relief, Truss Grid, entertainment rigging, stage truss design, acrow scaffolding, mr scaffold sydney, scaffolding caster wheel, cost to scaffold a house, covid-19 shelters, lighting truss, Theatre Truss, global truss pinnex, truss structures, scaffolding ticket, aluminium scaffold hire, how much is it to hire scaffolding, aluminium folding scaffold, medical marquees, Cosmic Truss, DNA truss, pre-rig truss, X30V, cantilever scaffolding, scaffolding companies melbourne, scaffolding hire price list, cost of scaffolding per metre, disaster relief structures

F34P Square (3mm) Truss Load & TÜV Engineering Certificate

Download

Description

SPAN (m)	CPL (kg)	UDL (kg/m)
4.0	1,350	500
5.0	1,120	399
6.0	954	331
7.0	829	261
8.0	730	200
9.0	651	157
10.0	586	126
11.0	537	104
12.0	484	86
13.0	444	73
14.0	408	62
15.0	377	53
16.0	349	46
17.0	323	40
18.0	301	35

	Title	Type	Size
	F34P Truss Load Tables & TÜV Engineering Certificate F34P Truss Load Tables & TÜV Engineering Certificate	application/pdf	67 KB

Additional information

Chord Material	EN AW 6082 T6
Endsocketmaterial	EN AW 6082 T6
Bracing Material	EN AW 6082 T6
Conical Spigot Material	EN AW 2011
Steelpinmaterial	8.8 Grade
Chord Dimension	50mmØ x 3mm
Bracing Dimensions	20mmØ x 2mm
Connectors Included	4 x Conical Spigots, Pins & R-Clips
External Length (mm)	500
External Depth (mm)	290
External Height (mm)	500
Pack Length	1000
Pack Depth	450
Pack Height	320
Net weight of the product (kg)	9.1
Pack Weight	11.3
Cubic volume (m³)	0.144
Product Type	Junctions
