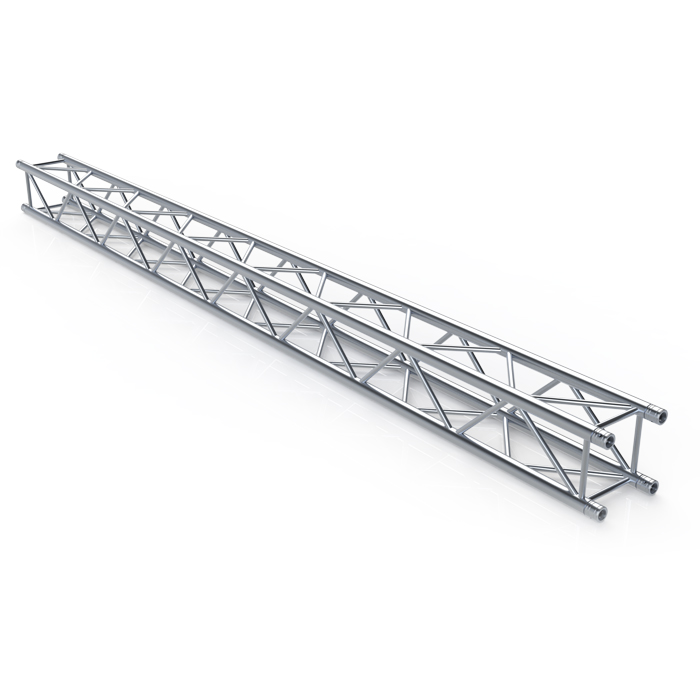

F34P Square 4.0m Linear Truss with Spigots, Pins & R-Clips

SKU: GT-F34PL400

Global Truss

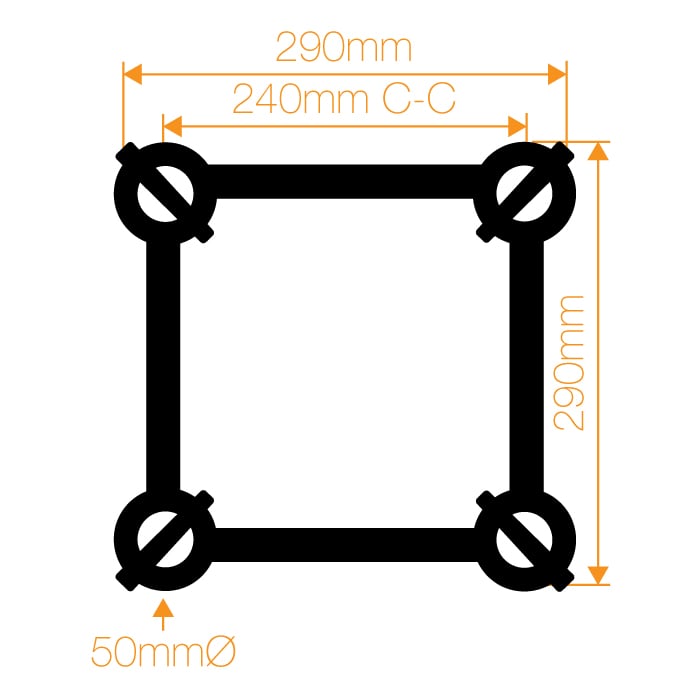

• 290 mm x 290 mm square truss with 50 mmØ x 3 mm wall aluminium chords
• Heavy-duty load capacity with excellent strength-to-weight ratio
• Fast, secure conical spigot connection system for rapid assembly
• Wide range of compatible corners, junctions, base plates, and accessories
• TÜV-certified for trusted safety, quality, and engineering performance

External Length (mm)

External Depth/Width (mm)

External Height (mm)

290

Finish

Raw

Load Capacity (kg)

1350

Truss Style (mm)

290

Chord Style (mm)

Square

Diameter (mm)
Pack Length (m)

4050

Pack Depth (m)

300

Pack Height (m)

300

Pack Weight (kg)



Net Weight (kg)
Product Type

Linear

Bracing Dimensions (mm)

50mmØ x 3mm

Chord Dimensions

20mmØ x 2mm

SKU: GT-F34PL400 Categories: , , Brand:

Description

F34P Square Truss is one of the most widely used aluminium truss systems in the industry, featuring a 290 mm x 290 mm profile with 50 mmØ main chords and a 3 mm wall thickness for enhanced strength and durability. Manufactured by Global Truss and TÜV-certified, F34P is the preferred choice for professionals across the entertainment, events, and architectural sectors thanks to its modularity, structural reliability, and broad compatibility with accessories and components.

Its clean aesthetic and load-bearing capacity make it ideal for both temporary and permanent installations, including stage structures, lighting rigs, LED screen frames, outdoor signage, virtual production environments, brand activations, exhibition stands, and museum or retail displays. F34P truss is trusted for use in schools, theatres, houses of worship, event venues, sporting arenas, and more.

SPAN (m)CPL (kg)UDL (kg/m)
4.01,350500
5.01,120399
6.0954331
7.0829261
8.0730200
9.0651157
10.0586126
11.0537104
12.048486
13.044473
14.040862
15.037753
16.034946
17.032340
18.030135
