F35 0.5m 5-Chord Square Linear Truss with Spigots, Pins & R-Clips

F35 5.0m 5-Chord Square Linear Truss with Spigots, Pins & R-Clips

Name: F35 5.0m 5-Chord Square Linear Truss with Spigots, Pins &amp; R-Clips
SKU: GT-F35L500
Availability: InStock

SKU: GT-F35L500

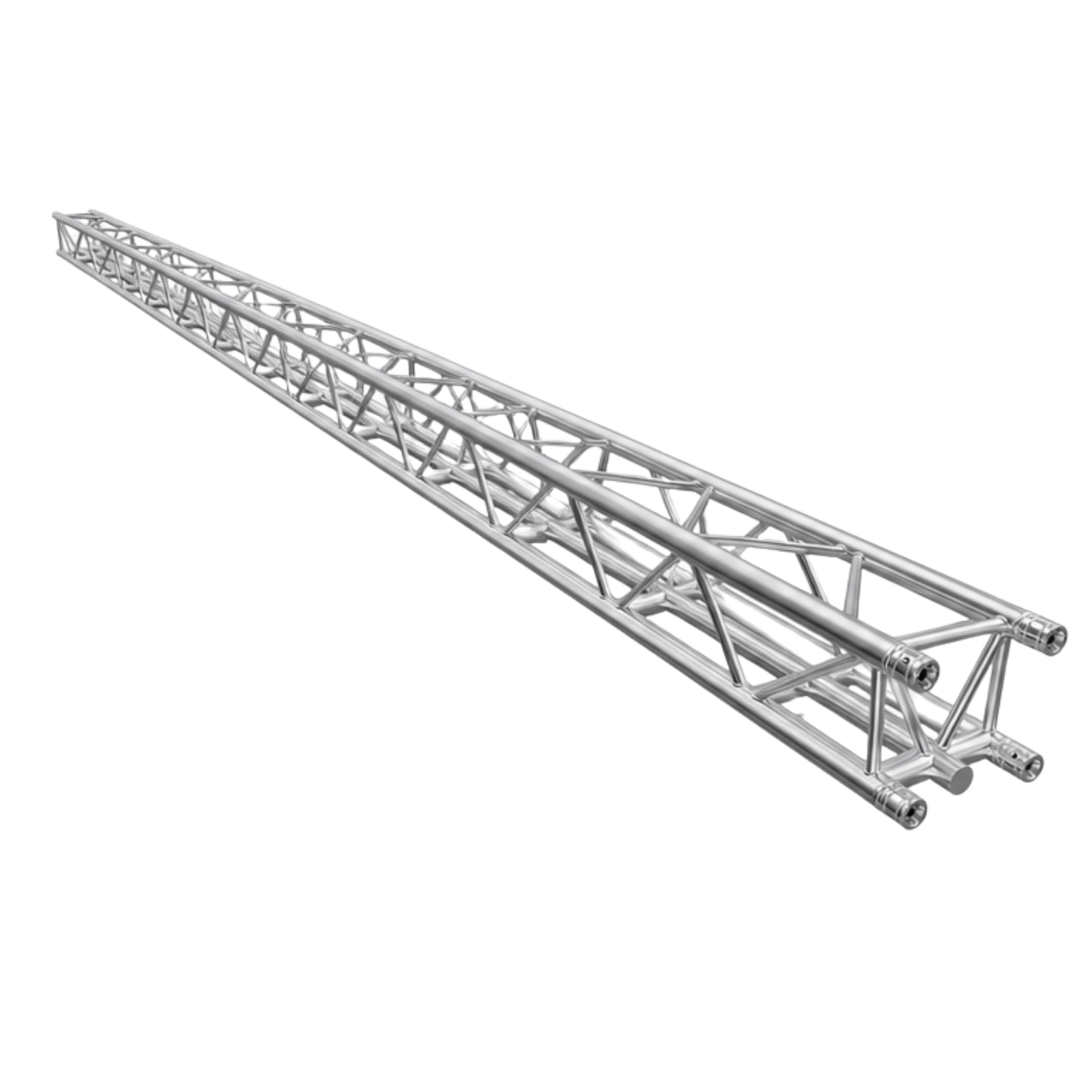

F35 Truss is the smallest of the 5-Chord Truss family at 290mm x 290mm with 50mmø chords. The fifth chord addition was specially designed to assist in the centring of the suspended load, always a challenge on Square Truss with two bottom chords.

It is particularly focused on the suspension of smaller LED screens where a long, continuous load must be centred with very little or no deflection. F35 Truss uses a thicker wall at 4mm to provide a stronger solution with lower deflection. The fifth chord is also ideal for suspension of drapes or set pieces. Of course, F35 5-Chord Truss can also be used for more general truss applications where you can make use of all three bottom chords.

Two engineering load tables are provided with all Global Truss 5-Chord Trusses. One table has a standard deflection limitation of 1:100, and the second a 1:300 deflection limitation, which is more applicable for the suspension of LED screens.

Product: GT-F35L500 Categories: F35 5-Chord Truss, Global Truss Tags: scaffold hire melbourne, aluminium scaffold melbourne, mobile scaffold wheels for sale, LED Truss, Aluminium Truss, lighting truss parts, box global, quick stage scaffold, scaffolding for sale perth, price for scaffolding rental, light duty scaffold, dj city, stage lighting mounting bars, acrow scaffolding, scaffolding rental cost, adjustable scaffold wheels, double coupler, global truss distributor, titanav truss, scaffolding ticket, sound barrier fence, scaffold hire brisbane, scaffolding for sale brisbane, how much does scaffolding cost per day, Universal Truss, Screen Truss, lighting truss system price list, Truss Structure, cantilever scaffolding, scaffolding rental, mobile aluminium scaffolding for sale, buy mobile scaffold, dq, stage lighting rig, scaffolding, gorilla scaffold, scaffolding hire rates, mobile scaffold sydney, aluminium scaffold hire sydney, led screen, global truss f34 load data, truss coupler clamp, kwikstage scaffolding, scaffolding hire, buy scaffolding, scaffolding wheels for sale, cost for scaffolding rental, F35-50 F, 50mm truss clamp, lighting truss with lights, 5 Chord Truss, trestle scaffolding, buy scaffolding sydney, scaffold hire cost per week, aluminium scaffold components, entertainment lighting, stage lighting truss design, scaffolding for sale, gumtree scaffolding, how much to hire scaffolding, how much does it cost for scaffolding, mobile scaffold hire price, lighting truss, global truss f44, truss lighting systems, scaffold tower, mr scaffold, scaffolding sydney, aluminum mobile scaffolding, folding scaffolding, GT F35L500, Clamps, lighting trusses, 5 Chord, stair scaffold, mr scaffold sydney, scaffolding installation cost, mobile scaffolding safety, entertainment production, stage lighting trusses, mobile scaffold, db scaffolding, how much to rent scaffolding, scaffolding caster wheel, hire painting scaffolding, global truss, global truss for sale, truss plate, mobile scaffold for sale, aluminium scaffold hire, scaffolding companies melbourne, how much is it to hire scaffolding, average price for scaffolding, Couplers, phantos, mini scaffold, aluminium scaffold for sale sydney, scaffolding hire price list, aluminium scaffolding parts, entertainment rigging, stage truss design, noise control, linc scaffolding, how much does it cost to hire scaffolding, cost to buy scaffolding, aluminium scaffolding brisbane, stage truss, global truss pinnex, truss structures, access scaffolding, scaffolding for sale melbourne, scaffolding clamp, cheap scaffolding hire, cost of scaffolding house, DNA truss, pre-rig truss, a frame scaffold, mr scaffold melbourne, cost of scaffolding, mobile scaffolding parts, entertainment rigging australia, stage truss manufacturers, aluminum scaffolding, bayside scaffolding, size 0 acrow props, 6 meter scaffold tower, cost to scaffold a house, stage lighting truss, light truss, when is a rigger required, sound proof fencing, scaffolding wheels, scaffold hire perth, scaffolding for sale sydney, aluminium folding scaffold, Stage clamps, production, aluminium scaffolding for sale, mr scaffold wetherill park, how much does a scaffold cost, cost of scaffolding per metre, entertainment rigging companies, stage truss systems, scaffolding companies, aluminium mobile scaffold, how much scaffolding cost, acrow size 0, global truss clamps, lighting clamps, noise barrier, acrow prop sizes, scaffolding parts, scaffold castor wheels, buy aluminium scaffold, Truss Australia, rigger course, painters scaffold, mr scaffold wetherill park nsw, portable scaffolding for sale, how much does scaffolding cost to buy, event rigging, stage trusses, portable scaffolding, instant access scaffold, how much scaffolding hire cost, aluminum scaffolding for sale, Screen Structure, stage lighting truss systems, lighting trigger clamps, scaffolding platform, scaffold hire sydney, scaffolding erection, scaffold beam clamp, how much does scaffolding cost per week, audio brisbane, rigging, modular scaffold, scaffold hire prices, scaffolding cost per day, mobile scaffold hire rates, global truss accessories, store dj, scaffolding types, temporary enclosures, how much does scaffolding cost to hire, mobile aluminum scaffolding, LED Structure, lighting truss australia, roof scaffolding, mobile scaffold hire, scaffold hire adelaide, how to price scaffolding, mobile scaffold hire sydney, box truss design, stage design, acoustic fence panels, scaffolding hire cost, house scaffolding hire, scaffolding cost calculator, global truss australia, theatre rigging, acoustic fencing, construction scaffolding, mobile scaffold wheels, average cost of scaffolding, Ground Support, Cosmic Truss, lighting truss dj, box global truss, scaffolding supplies, scaffolding melbourne, scaffolding components, mobile scaffold platform, brace scaffolding, design quintessence, stage light trusses, building scaffold, how much does scaffolding cost, scaffold castors, estimating scaffolding costs, global truss catalog, titanav, scaffolding ladder, active noise control

Description

LOAD TABLE (Bottom Centre Chord 1:100 Deflection*)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4.0	511	800	800	681	511
5.0	407	800	800	678	508
6.0	337	800	800	653	506
7.0	288	800	737	562	446
8.0	250	800	656	493	393
9.0	202	800	589	437	350
10.0	162	745	533	391	314
11.0	126	674	485	353	284
12.0	94	614	416	298	234
13.0	72	561	343	246	193
14.0	55	484	284	204	160
15.0	43	402	236	169	133
16.0	33	334	196	141	110
17.0	26	276	162	116	91
18.0	20	227	133	95	75
19.0	15	184	108	77	61
20.0	12	146	86	61	48
*Bottom Centre Chord Loading Only with Acceptable Deflection ≤ 1 : 100 (i.e. standard acceptable truss deflection for general use applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

LOAD TABLE (Bottom Centre Chord 1:300 Deflection**)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4.0	511	800	800	681	511
5.0	407	800	800	625	491
6.0	270	800	595	427	335
7.0	166	726	426	306	240
8.0	108	538	316	226	178
9.0	72	406	239	171	134
10.0	50	310	182	131	103
11.0	35	237	139	100	79
12.0	24	180	106	76	60
13.0	17	134	79	57	44
14.0	11	97	57	41	32
15.0	7	65	38	27	21
16.0	4	37	22	16	12
**Bottom Centre Chord Loading Only with Acceptable Deflection ≤ 1 : 300 (i.e. very low deflection if critical for suspension of LED screen applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

LOAD TABLE (Bottom Outer Chords 1:100 Deflection*)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4	511	1,694	1,021	681	511
5	407	1,416	960	678	508
6	337	1,210	836	653	506
7	288	1,053	737	562	446
8	250	929	656	493	393
9	202	828	589	437	350
10	162	745	533	391	314
11	126	674	485	353	284
12	94	614	416	298	234
13	72	561	343	246	193
14	55	484	284	204	160
15	43	402	236	169	133
16	33	334	196	141	110
17	26	276	162	116	91
18	20	227	133	95	75
19	15	184	108	77	61
20	12	146	86	61	48
***Bottom Outer Chords Loading with Acceptable Deflection ≤ 1 : 100 (i.e. standard acceptable truss deflection for general use applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

Additional information

Chord Material	EN AW 6082 T6
Endsocketmaterial	EN AW 6082 T6
Bracing Material	EN AW 6082 T6
Conical Spigot Material	EN AW 2011
Steelpinmaterial	8.8 Grade
Chord Dimension	50mmØ x 4mm
Bracing Dimensions	20mmØ x 2mm
Connectors Included	4 x Conical Spigots, Pins & R-Clips
External Length (mm)	5000
External Depth (mm)	290
External Height (mm)	290
Cubic volume (m³)	0.4509
