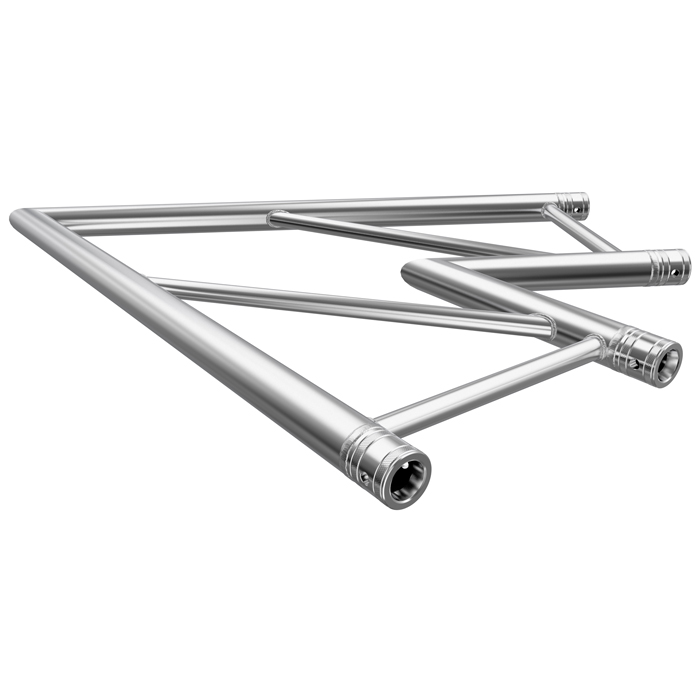

F42P Flat Truss 2 Way 60° Corner with Spigots, Pins & R-Clips – Horizontal

SKU: GT-F42PJ20-H

Global Truss

• Constructed with reinforced 3mm wall thickness chords for superior durability and strength
• Designed for the 400mm OD F42P truss system with 50mmØ chords
• Compatible with circle truss, arc truss, and curved truss configurations
• Available in multiple configurations including T-junctions, cross-junctions, and corner pieces
• Equipped with conical spigot, pins, and R-clips for quick, secure assembly
• TÜV certified for safety and quality assurance

External Length (mm)

External Depth/Width (mm)

External Height (mm)

50

Finish

Raw

Load Capacity (kg)
Truss Style (mm)

400

Chord Style (mm)

Flat

Diameter (mm)
Pack Length (m)

1020

Pack Depth (m)

886

Pack Height (m)

60

Pack Weight (kg)



Net Weight (kg)

5.3

Product Type

Junction

Bracing Dimensions (mm)

50mmØ x 3mm

Chord Dimensions

25mmØ x 2mm

SKU: GT-F42PJ20-H Categories: , , Brand:

Description

The F42P Junctions are precision-engineered connectors designed for the robust 400mm outer diameter F42P Flat Truss system, featuring 50mmØ main chords with reinforced 3mm wall thickness for enhanced strength and load capacity. These junctions are essential components to create complex and versatile truss structures, including multi-directional grid systems and support frameworks.

Widely used in professional lighting, audiovisual, staging, and rigging applications, F42P Junctions support permanent and temporary installations in theatres, conference centres, exhibition halls, houses of worship, retail environments, and broadcast studios.

Compatible with the full range of F42P straight trusses, radials (also known as circle truss, curved truss, or arc truss), and accessories, these junctions enable seamless assembly of intricate structures with reliable spigot and pin connections.

SPAN (m)CPL (kg)UDL (kg/m)
1.01,1041,101
2.01,102550
3.0718367
4.0404172
5.021170
6.09333
