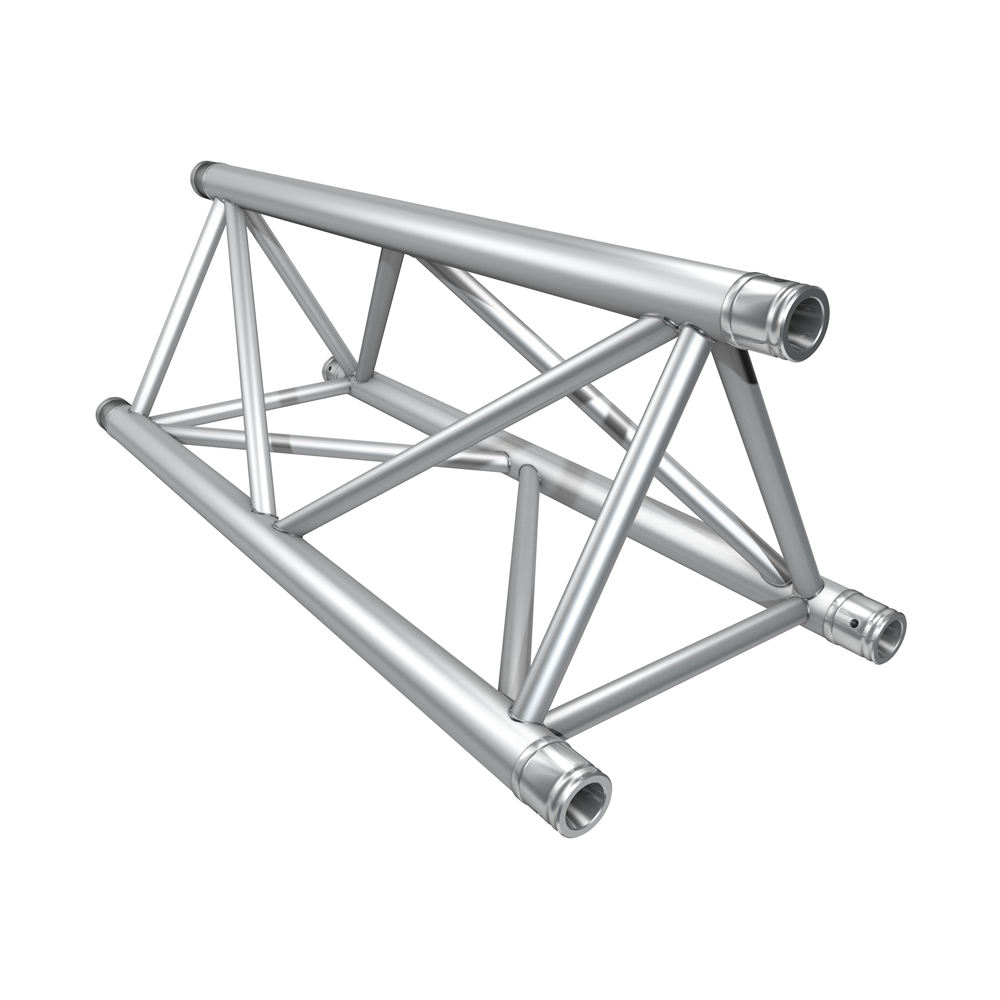

F43P Tri 1.0m Linear Truss with Spigots, Pins & R-Clips
SKU: GT-F43PL100
• Heavy-duty 400mm OD triangular truss with reinforced 3mm wall thickness 50mmØ chords
• Balanced weight distribution via central apex chord for safer suspension loads
• Ideal for indoor and outdoor use across theatres, schools, houses of worship, pubs, clubs, and conference centres
• Comprehensive range of straight lengths, junctions, and radials (circle/curved truss) for flexible structure design
• Compatible with a wide range of 50mmØ accessories and clamps
• Custom component design and manufacturing available
• TÜV certified for quality and safety assurance
Description
The F43P Triangular Truss is a heavier-duty aluminium truss system featuring a 400mm outer dimension with 50mmØ main chords engineered with reinforced 3mm wall thickness for superior strength and durability. Its distinctive triangular shape provides a significant advantage over square truss designs by enabling balanced weight distribution when suspending loads directly from the central apex chord, making it ideal for demanding rigging applications.
Widely utilized in a variety of venues such as houses of worship, schools, theatres, pubs and clubs, and conference centres, the F43P Triangular Truss is well-suited for both indoor and outdoor installations. Common applications include stage structures, display stands, signage and banner frames, suspending lighting, audiovisual equipment, LED panels, and draping systems.
The F43P range offers extensive versatility with a comprehensive selection of straight lengths, junctions, and radials (also referred to as circle truss or curved truss) available as standard. It is fully compatible with a wide array of 50mmØ clamps and accessories.
| SPAN (m) | CPL (kg) | UDL (kg/m) |
|---|---|---|
| 4.0 | 877 | 410 |
| 5.0 | 721 | 322 |
| 6.0 | 609 | 224 |
| 7.0 | 525 | 164 |
| 8.0 | 459 | 124 |
| 9.0 | 407 | 97 |
| 10.0 | 363 | 77 |
| 11.0 | 326 | 63 |
| 12.0 | 294 | 52 |
| 13.0 | 267 | 43 |
| 14.0 | 243 | 36 |
| 15.0 | 221 | 31 |
| 16.0 | 202 | 26 |
| 17.0 | 184 | 23 |
| 18.0 | 168 | 19 |
| 19.0 | 153 | 17 |
| 20.0 | 139 | 14 |
