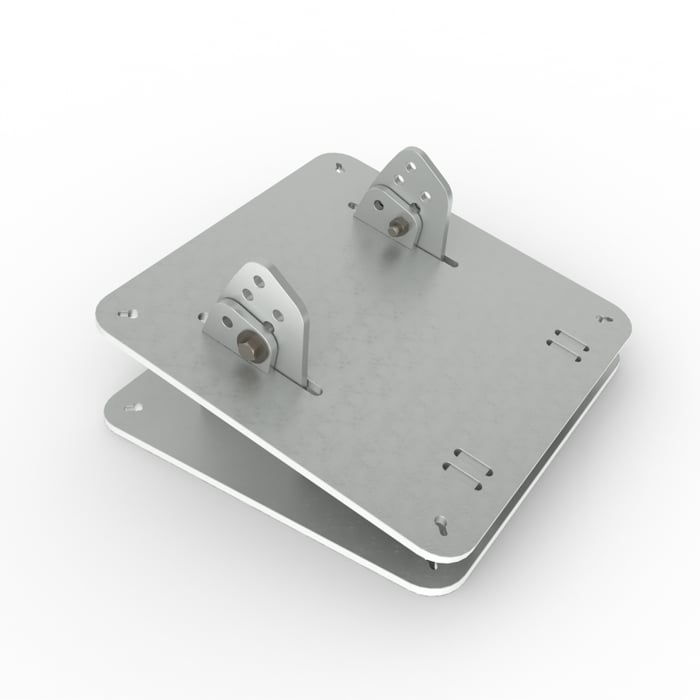

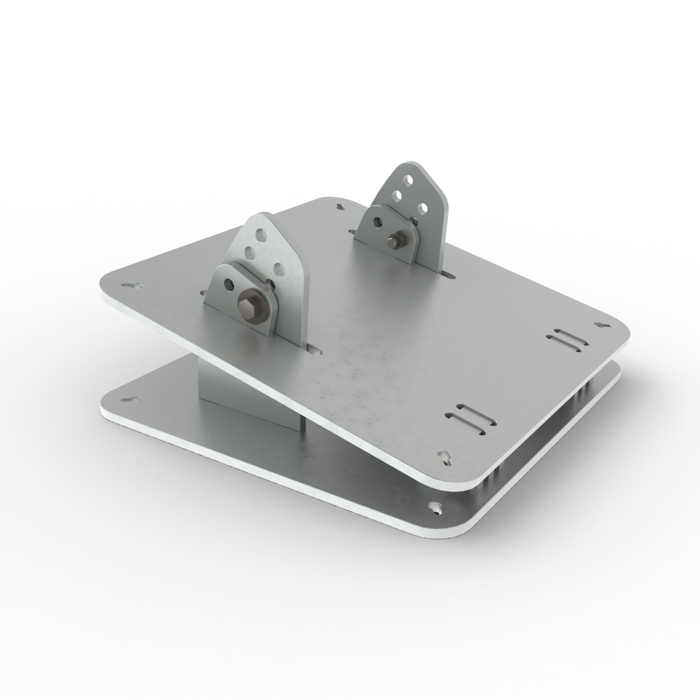

F44P 0-25° Square Truss Variable Hinged Junction (2.5° Incremental Settings) with Half-Spigots, Screws, Pins & R-Clips
F44P 0-25° Square Truss Variable Hinged Junction (2.5° Incremental Settings) with Half-Spigots, Screws, Pins & R-Clips - Image 2
F44P 0-25° Square Truss Variable Hinged Junction (2.5° Incremental Settings) with Half-Spigots, Screws, Pins & R-Clips - Image 3

F44P 0-25° Square Truss Variable Hinged Junction (2.5° Incremental Settings) with Half-Spigots, Screws, Pins & R-Clips

SKU: GT-F44PJV0-25

Global Truss

• Enables angular connections from 0° to 25° in 2.5° increments
• Designed for use with F44P square truss (50mmØ chords, 3mm wall thickness)
• Includes half-spigots, screws, pins & R-clips for secure installation
• Ideal for curved truss roofs, arched spans, or custom angled truss structures
• Durable aluminium construction for strength, precision, and professional use

Add to Quote Request
External Length (mm)

External Depth/Width (mm)

External Height (mm)

400
Finish

Raw
Load Capacity (kg)
Truss Style (mm)

400
Chord Style (mm)

Square
Diameter (mm)
Pack Length (m)

420
Pack Depth (m)

187
Pack Height (m)

420
Pack Weight (kg)


Net Weight (kg)
Product Type

Junction
Bracing Dimensions (mm)


Chord Dimensions


SKU: GT-F44PJV0-25 Categories: , , Brand:

Description

Our most versatile truss junction yet, the Variable Hinged Junction is designed with functionality and aesthetics in mind. The minimal profile perfectly blends into any truss structure while the pre-positioned holes on adjustment blades allow for angles up to 25 degrees. Modifying the angle on your variable hinge is as easy as undoing a pair of high tensile bolts and re-positioning them on 2.5 degrees incremental angles for a new setup.
