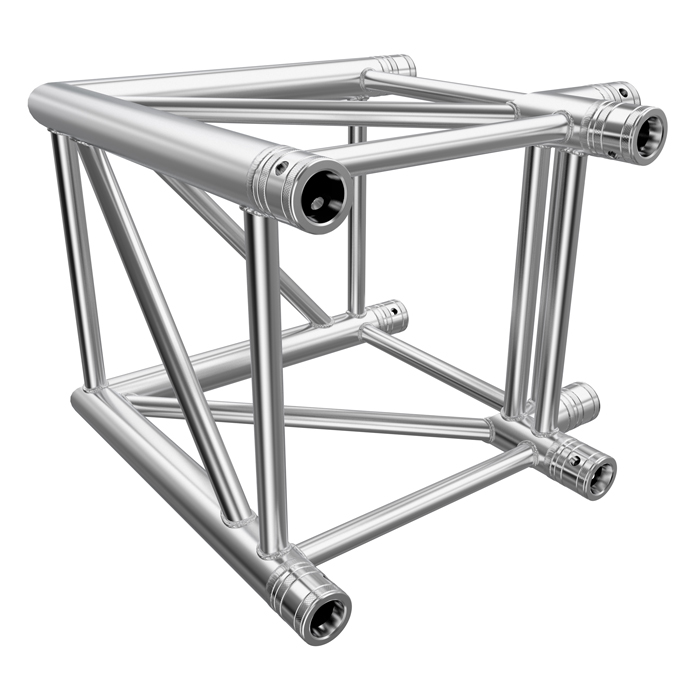

F44P Square Truss 2 Way 90° Corner with Spigots, Pins & R-Clips

F44P Square Truss 2 Way 90° Corner with Spigots, Pins & R-Clips

Name: F44P Square Truss 2 Way 90° Corner with Spigots, Pins &amp; R-Clips
SKU: GT-F44PJ21
Availability: InStock

SKU: GT-F44PJ21

F44P Square Truss is the second most popular truss type in the Global Truss range. One of our larger Trusses, it measure 400mm x 400mm Truss with 50mmø chords. F44 is a commonly used Truss for the professional lighting and audiovisual production industries as it does have great versatility and broad modularity, as well as high load capacity. You will find it installed in similar venues to other Trusses like F34/34P including schools, theatres, exhibition halls, conference centres, houses of worship, universities, museums, and sporting centres. The difference is F44P will be the Truss of choice due to greater spans and/or higher load requirements. Applications vary from outdoor stage structures, LED wall structures, fitness course structures, finish line structures, film & television sets and studios, motorsport structures, interactive stand structures, and suspending lighting, sound and video gear. F44P Truss has a large range of standard lengths, radials and junctions with an even larger range of 50mmø accessories. As usual, custom components can be designed by the DQ team and made to order.

Product: GT-F44PJ21 Categories: F44P Square Truss Junctions, Global Truss, F44P Square Truss Tags: Circus Truss, global truss accessories, store dj, access scaffolding, scaffold hire sydney, scaffold beam clamp, brace scaffolding, Industrial & Emergency Response, emergency light, disaster relief operations, stage lighting truss, Truss Hinge, lighting truss australia, box global, a frame scaffold, scaffolding erection, scaffolding cost per day, estimating scaffolding costs, triage centers, emergency shelter, Alloy Truss, box truss design, stage design, aluminum scaffolding, temporary enclosures, scaffolding rental cost, mobile scaffold wheels for sale, emergency marquee, roof structure, Custom Truss Box Truss, global truss australia, theatre rigging, sound proof fencing, mobile scaffold hire, how to price scaffolding, light duty scaffold, Gas detection equipment, emergency housing, portable field hospitals, square truss, Tent Truss, lighting truss dj, security fencing, aluminium scaffolding for sale, scaffold hire adelaide, house scaffolding hire, double coupler, triage centres, emergency equipment, Aluminium Truss, design quintessence, stage light trusses, scaffolding companies, construction scaffolding, scaffolding hire rates, how much does scaffolding cost per day, marquee, modular construction, Tri Truss, global truss catalog, titanav, noise barrier, scaffolding melbourne, mobile scaffold platform, buy mobile scaffold, emergency response tent, shelter, field hospitals, global truss clamps, hospital equipment, lighting truss parts, painters scaffold, scaffolding components, scaffold castors, aluminium scaffold hire sydney, emergency shelters, lighting solutions, Steel Truss, dj city, stage lighting mounting bars, portable scaffolding, active noise control, mobile scaffold wheels, cost for scaffolding rental, isolation stretcher chamber, 400 Box Truss, modular design, Triangular Truss, global truss distributor, titanav truss, scaffolding platform, scaffold hire melbourne, price for scaffolding rental, aluminium scaffold components, emergency response marquee, emergency accommodation, stage lighting truss systems, medical equipment, lighting truss system price list, modular scaffold, scaffolding for sale perth, adjustable scaffold wheels, mobile scaffold hire price, temporary shelters, modular fencing, Concert Truss, dq, stage lighting rig, scaffolding types, sound barrier fence, aluminium scaffold melbourne, folding scaffolding, medical tents, 400 Square Truss, building structure, Flat Truss, global truss f34 load data, truss coupler clamp, roof scaffolding, scaffold hire brisbane, mobile aluminium scaffolding for sale, mobile scaffolding safety, emergency relief, emergency hospital, 50mm truss clamp, lighting truss with lights, acoustic fence panels, scaffolding rental, mobile scaffold sydney, hire painting scaffolding, covid-19 shelters, shelters near me, AV Truss, entertainment lighting, stage lighting truss design, acoustic fencing, scaffolding hire, scaffolding for sale brisbane, average price for scaffolding, medical marquees, HD44, hospital emergency room, Ladder Truss, global truss f44, truss lighting systems, scaffolding supplies, buy scaffolding, scaffold hire cost per week, aluminium scaffolding parts, disaster relief structures, portable fence, globaltruss, Clamps, lighting trusses, building scaffold, buy scaffolding sydney, how much does it cost for scaffolding, aluminium scaffolding brisbane, mtnemergencyservices, mobile company, Truss Grid, entertainment production, stage lighting trusses, scaffolding ladder, mr scaffold, aluminum mobile scaffolding, cost of scaffolding house, medical marquee, H40V, Mobile Clinics, lighting truss, Theatre Truss, global truss for sale, truss plate, quick stage scaffold, scaffolding sydney, scaffolding installation cost, mobile scaffolding parts, Emergency Relief Structures, construction fence, Cosmic Truss, Couplers, phantos, acrow scaffolding, mr scaffold sydney, scaffolding caster wheel, cost to scaffold a house, modular hospitals, modular building, Lighting Grid, entertainment rigging, stage truss design, scaffolding ticket, aluminium scaffold hire, how much is it to hire scaffolding, aluminium folding scaffold, Confined space equipment , Box Truss 400, Small Field Hospitals, truss, Space Frame, global truss pinnex, truss structures, cantilever scaffolding, scaffolding companies melbourne, scaffolding hire price list, cost of scaffolding per metre, Temporary Construction Solution, barrier fencing, Prolyte, DNA truss, pre-rig truss, scaffolding, gorilla scaffold, aluminium scaffold for sale sydney, cost to buy scaffolding, alternative scaffolding, modular structures, structure deck, Lighting Bar, entertainment rigging australia, stage truss manufacturers, kwikstage scaffolding, scaffolding for sale melbourne, cheap scaffolding hire, buy aluminium scaffold, Confined space rescue equipment , GT F44PJ21, Large Field Hospitals, global truss, Touring Truss, light truss, when is a rigger required, trestle scaffolding, scaffolding clamp, cost of scaffolding, how much does scaffolding cost to buy, modular hospital, temporary flooring, Bolt Truss, Stage clamps, production, scaffolding for sale, gumtree scaffolding, scaffold hire prices, aluminum scaffolding for sale, isolation tents, emergency relief equipment, crisis house, Truss Tube, entertainment rigging companies, stage truss systems, scaffold tower, scaffolding wheels, scaffolding for sale sydney, how much does scaffolding cost per week, Working at heights equipment , F44-25, Military Field Hospitals, stage truss, PRT, lighting clamps, stair scaffold, scaffold hire perth, how much does a scaffold cost, mobile scaffold hire rates, emergency centres, temporary fencing prices, 300mm Truss, Truss Australia, rigger course, mobile scaffold, aluminium mobile scaffold, scaffolding hire cost, mobile aluminum scaffolding, isolation marquees, fold out shelters, mobile home, Lighting Tube, event rigging, stage trusses, mobile scaffold for sale, acrow prop sizes, scaffold castor wheels, mobile scaffold hire sydney, Vertical rescue equipment, temporary fencing, Shelter System, alutruss, Truss Circle, lighting trigger clamps, box global truss, mini scaffold, scaffolding parts, portable scaffolding for sale, scaffolding cost calculator, emergency centers, temp fence hire, Plus Truss, audio brisbane, rigging, noise control, instant access scaffold, how much does scaffolding cost, average cost of scaffolding, emergency tents, company structure

F44P Square Truss Information Sheet

Download

F44P Square Truss Load Tables & TÜV Engineering Certificate

Download

Description

SPAN (m)	CPL (kg)	UDL (kg/m)
4.0	1,801	942
5.0	1,520	706
6.0	1,311	503
7.0	1,151	374
8.0	1,023	288
9.0	919	228
10.0	832	185
11.0	759	152
12.0	697	127
13.0	642	108
14.0	594	92
15.0	552	79
16.0	514	69
17.0	480	60
18.0	449	53
19.0	420	47
20.0	395	42

	Title	Type	Size
	F44P-SQUARE-TRUSS_1	application/pdf	1 MB

Additional information

Chord Material	EN AW 6082 T6
Endsocketmaterial	EN AW 6082 T6
Bracing Material	EN AW 6082 T6
Conical Spigot Material	EN AW 2011
Steelpinmaterial	8.8 Grade
Chord Dimension	50mmØ x 3mm
Bracing Dimensions	25mmØ x 3mm
Connectors Included	4 x Conical Spigots, Pins & R-Clips
Product Type	Junctions
