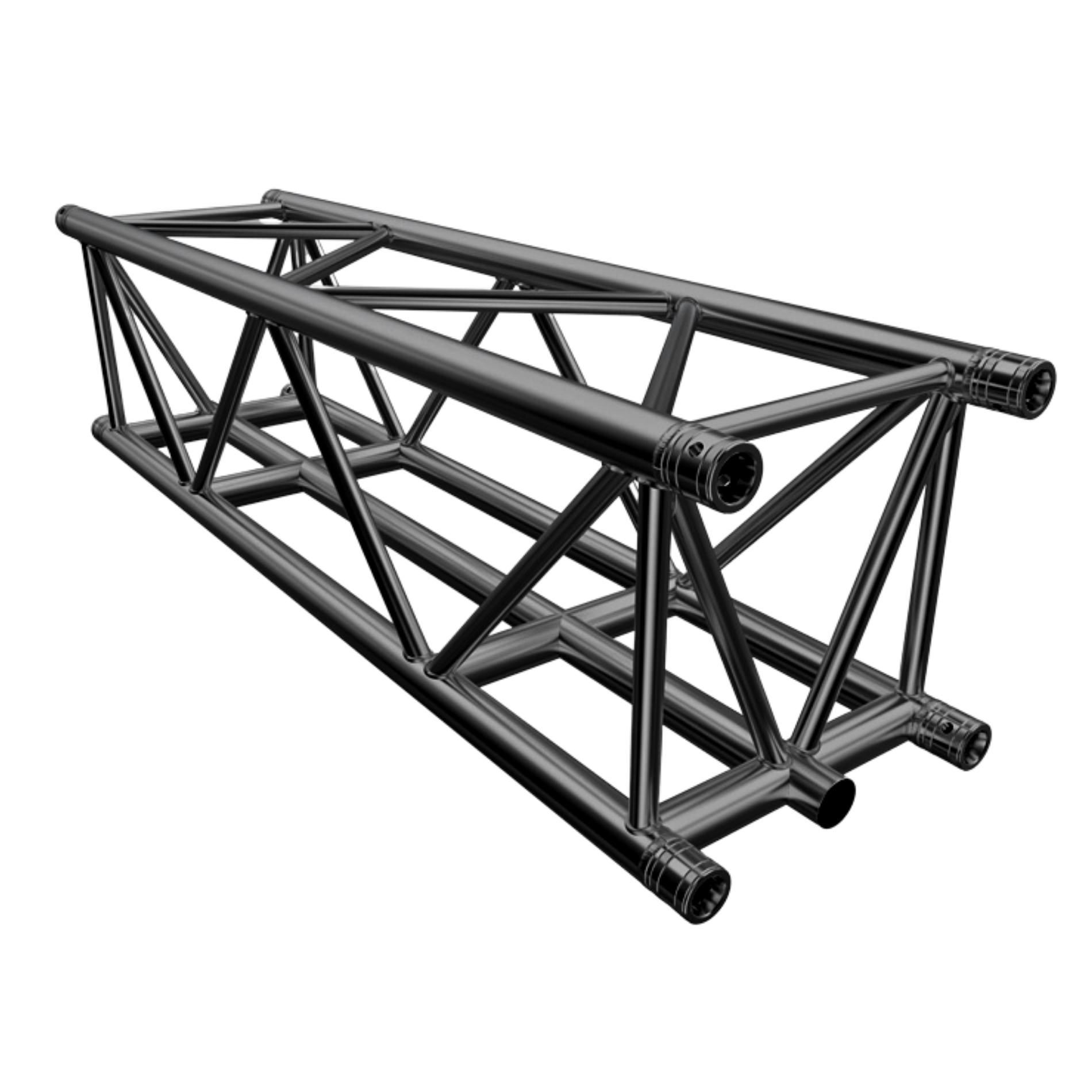

F45 5-Chord Square 1.5m Linear Truss with Spigots, Pins & R-Clips – Black

SKU: GT-F45L150-B

Global Truss

• Designed with a fifth, central bottom chord to help precisely centre and evenly distribute suspended loads.
• Minimises deflection, making it ideal for long, continuous spans such as large LED screens.
• 1.5m black F45 5-chord square truss. Matte black finish for a refined, discreet aesthetic
• Constructed from EN AW-6082 T6 aluminium. TÜV-certified quality and safety
• Suitable for a wide range of general truss applications using all three bottom chords.
• Comes with two engineering load tables for standard (1:100) and low-deflection (1:300) requirements, supporting both typical and LED screen-specific needs.

External Length (mm)

External Depth/Width (mm)

External Height (mm)

400

Finish

Black

Truss Style (mm)

400mm

Chord Style (mm)

5 Chord Square

Pack Length (m)

1520

Pack Depth (m)

420

Pack Height (m)

420

Net Weight (kg)

20.2

Product Type

Linear

Bracing Dimensions (mm)

50mmØ x 4mm

Chord Dimensions

25mmØ x 3mm

SKU: GT-F45L150-B Categories: , , Brand:

Description

The F45 5-Chord Square 1.5m Linear Truss in black is built for advanced structural performance. With its 5-chord design and 400 mm square profile, this truss offers increased load distribution and rigidity—ideal for larger spans and more demanding rigging environments.

Crafted from high-strength EN AW-6082 T6 aluminium, it includes spigots, pins, and R-clips for fast and secure connection. The black powder-coated finish provides a clean, low-visibility appearance that integrates well into stage and exhibition designs. TÜV-certified for safety and reliability.
