Name: F45 5-Chord Square 5.0m Linear Truss with Spigots, Pins &amp; R-Clips
SKU: GT-F45L500
Availability: InStock

SKU: GT-F45L500

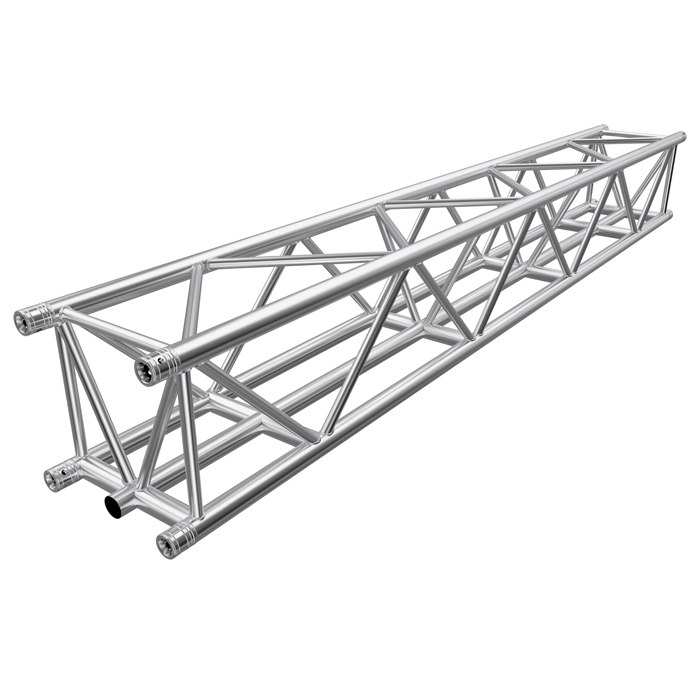

F45 Truss is the most popular size of the 5-Chord Truss family at 400mm x 400mm with 50mmø x 4mm chords. The fifth chord addition was specially designed to assist in the centring of the suspended load, always a challenge on Square Truss with two bottom chords. IT is particularly focused on the suspension of larger LED screens where a long, continuous load must be centred with very little or no deflection. The fifth chord is also ideal for suspension of drapes, dividing walls or set pieces. Of course, F45 5-Chord Truss can also be used for more general truss applications where you can make use of all three bottom chords. Two engineering load tables are provided with all Global Truss 5-Chord Trusses. One table has a standard deflection limitation of 1:100, and the second a 1:300 deflection limitation, which is more applicable for the suspension of LED screens.

Product: GT-F45L500 Categories: Global Truss, F45 5 Chord Truss Tags: entertainment rigging, stage truss design, stage truss, global truss pinnex, truss structures, DNA truss, pre-rig truss, entertainment rigging australia, stage truss manufacturers, stage lighting truss, light truss, when is a rigger required, Stage clamps, production, Screen Structure, entertainment rigging companies, stage truss systems, global truss clamps, lighting clamps, Truss Australia, rigger course, LED Structure, event rigging, stage trusses, stage lighting truss systems, lighting trigger clamps, Truss Structure, audio brisbane, rigging, Ground Support, global truss accessories, store dj, lighting truss australia, 5 Chord Truss, box truss design, stage design, LED Truss, global truss australia, theatre rigging, Cosmic Truss, lighting truss dj, 5 Chord, design quintessence, stage light trusses, Universal Truss, global truss catalog, titanav, Aluminium Truss, lighting truss parts, dj city, stage lighting mounting bars, global truss distributor, titanav truss, Screen Truss, lighting truss system price list, dq, stage lighting rig, led screen, global truss f34 load data, truss coupler clamp, 50mm truss clamp, lighting truss with lights, entertainment lighting, stage lighting truss design, F45-50 F, lighting truss, global truss f44, truss lighting systems, Clamps, lighting trusses, entertainment production, stage lighting trusses, GT F45L500, global truss, global truss for sale, truss plate, Couplers, phantos

F45 5 Chord Square Truss Load Table & Engineering Report

Download

Description

LOAD TABLE (Bottom Centre Chord 1:100 Deflection*)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4.0	600	500	500	500	500
5.0	600	500	500	500	500
6.0	600	500	500	500	500
7.0	473	500	500	500	500
8.0	365	500	500	500	500
9.0	289	500	500	500	480
10.0	234	500	500	500	434
11.0	192	500	500	500	395
12.0	160	500	500	456	361
13.0	135	500	500	418	332
14.0	115	500	500	384	306
15.0	99	500	476	354	283
16.0	79	500	443	327	261
17.0	63	500	395	283	223
18.0	51	500	337	242	190
19.0	41	489	287	206	162
20.0	33	415	243	175	137
21.0	27	350	205	147	116
22.0	21	292	171	123	97
23.0	17	241	141	101	80
24.0	13	194	114	82	64
*Bottom Centre Chord Loading Only with Acceptable Deflection ≤ 1 : 100 (i.e. standard acceptable truss deflection for general use applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

LOAD TABLE (Bottom Centre Chord 1:300 Deflection**)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4.0	600	500	500	500	500
5.0	600	500	500	500	500
6.0	578	500	500	500	500
7.0	358	500	500	500	500
8.0	235	500	500	495	389
9.0	161	500	500	381	299
10.0	113	500	415	298	234
11.0	81	500	328	235	185
12.0	59	444	261	187	147
13.0	43	353	207	149	117
14.0	32	279	163	117	92
15.0	23	217	127	91	72
16.0	16	164	96	69	54
17.0	11	119	70	50	39
18.0	7	80	47	34	27
19.0	4	46	27	19	15
20.0	1	15	9	6	5
**Bottom Centre Chord Loading Only with Acceptable Deflection ≤ 1 : 300 (i.e. very low deflection if critical for suspension of LED screen applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

LOAD TABLE (Bottom Outer Chords 1:100 Deflection***)
SPAN (m)	UDL (kg/m)	CPL (kg)	THIRD POINT	FOURTH POINT	FIFTH POINT
4.0	953	2,209	1,358	1,042	859
5.0	760	1,879	1,193	931	778
6.0	631	1,629	1,057	837	684
7.0	473	1,434	945	757	601
8.0	365	1,276	853	689	534
9.0	289	1,146	774	614	480
10.0	234	1,037	707	553	434
11.0	192	944	649	501	395
12.0	160	864	598	456	361
13.0	135	793	552	418	332
14.0	115	731	512	384	306
15.0	99	675	476	354	283
16.0	79	625	443	327	261
17.0	63	580	395	283	223
18.0	51	539	337	242	190
19.0	41	489	287	206	162
20.0	33	415	243	175	137
21.0	27	350	205	147	116
22.0	21	292	171	123	97
23.0	17	241	141	101	80
24.0	13	194	114	82	64
***Bottom Outer Chords Loading with Acceptable Deflection ≤ 1 : 100 (i.e. standard acceptable truss deflection for general use applications) Load tables indicate load capacities only and need to be considered in the context of complete engineering certification available. Full engineering report available upon request.

Additional information

Chord Material	EN AW 6082 T6
Endsocketmaterial	EN AW 6082 T6
Bracing Material	EN AW 6082 T6
Conical Spigot Material	EN AW 2011
Steelpinmaterial	8.8 Grade
Chord Dimension	50mmØ x 4mm
Bracing Dimensions	25mmØ x 3mm
Connectors Included	4 x Conical Spigots, Pins & R-Clips
Product Type	Linear
