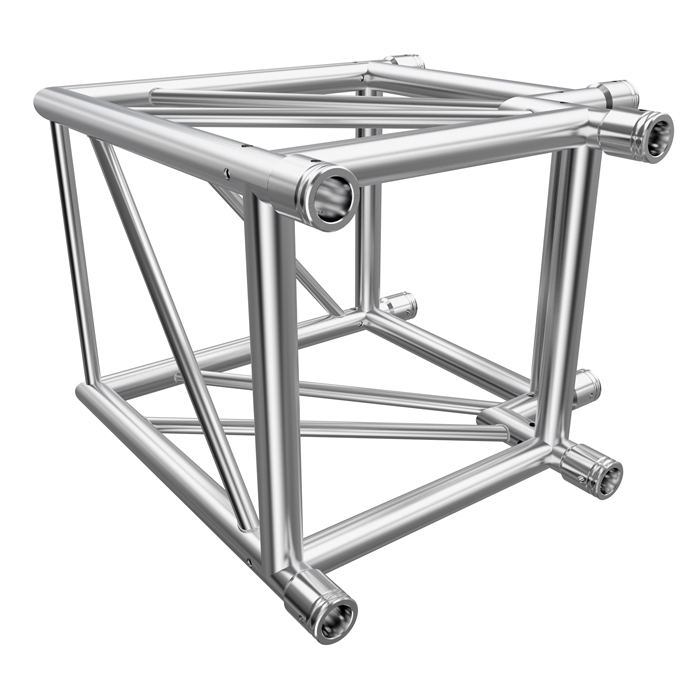

F54 Square Truss 2 Way 90° Corner with Spigots, Pins & R-Clips
SKU: GT-F54J21F54 Spare Truss at 520mmx 520mm is of a size long referred to as Concert Truss in Australia. And yes, it is a truss that is commonly used in concert stages but it has its applications wherever large spaces are prescribed. These include large format signage, race finish line aches and exhibition rigging to name a few. Capable of spans up to 24m, F54 Truss offers high capacity for shorter spans and quite reasonable capacity for large spans.
F54 Square Truss comes in two formats – one with 30mmø x 3mm diagonal braces on all four faces and the other, with 30mmø x 3mm diagonal braces on two opposing faces and 50mmø x 4mm “ladder” style cross-brace on the other two.
Product: GT-F54J21
Categories: F54 Square Truss Junctions, Global Truss, F54 Square Truss
Tags: Circus Truss, global truss catalog, titanav, stage lighting truss, Truss Hinge, lighting truss parts, Alloy Truss, dj city, stage lighting mounting bars, GT F54J21, Custom Truss Box Truss, global truss distributor, titanav truss, square truss, Tent Truss, lighting truss system price list, Aluminium Truss, dq, stage lighting rig, F54-90, Tri Truss, global truss f34 load data, truss coupler clamp, global truss clamps, 50mm truss clamp, lighting truss with lights, Steel Truss, entertainment lighting, stage lighting truss design, Triangular Truss, global truss f44, truss lighting systems, stage lighting truss systems, Clamps, lighting trusses, Concert Truss, entertainment production, stage lighting trusses, Flat Truss, global truss for sale, truss plate, Couplers, phantos, AV Truss, entertainment rigging, stage truss design, Ladder Truss, global truss pinnex, truss structures, globaltruss, DNA truss, pre-rig truss, Truss Grid, entertainment rigging australia, stage truss manufacturers, lighting truss, Theatre Truss, light truss, when is a rigger required, Cosmic Truss, Stage clamps, production, Lighting Grid, entertainment rigging companies, stage truss systems, truss, Space Frame, lighting clamps, Prolyte, Truss Australia, rigger course, 500 Box Truss, Lighting Bar, event rigging, stage trusses, global truss, Touring Truss, lighting trigger clamps, Bolt Truss, audio brisbane, rigging, ST Square Truss, Truss Tube, global truss accessories, store dj, stage truss, PRT, lighting truss australia, 300mm Truss, box truss design, stage design, H52V, Lighting Tube, global truss australia, theatre rigging, alutruss, Truss Circle, lighting truss dj, Plus Truss, design quintessence, stage light trusses, 54 500ml truss
F54 Square Truss Load Tables & TÜV Engineering Certificate
DownloadDescription
SPAN (m) | UDL (kg/m) | CPL (kg) | THIRD POINT | FOURTH POINT | FIFTH POINT |
---|---|---|---|---|---|
4.0 | 1,255 | 2,630 | 1,652 | 1,214 | 996 |
5.0 | 1,001 | 2,278 | 1,463 | 1,109 | 917 |
6.0 | 742 | 2,003 | 1,313 | 1,020 | 852 |
7.0 | 541 | 1,783 | 1,188 | 941 | 789 |
8.0 | 411 | 1,602 | 1,083 | 838 | 699 |
9.0 | 322 | 1,448 | 993 | 738 | 615 |
10.0 | 258 | 1,290 | 916 | 658 | 548 |
11.0 | 211 | 1,159 | 846 | 590 | 493 |
12.0 | 175 | 1,048 | 786 | 534 | 446 |
13.0 | 147 | 954 | 729 | 486 | 405 |
14.0 | 125 | 872 | 667 | 445 | 370 |
15.0 | 107 | 800 | 612 | 408 | 340 |
16.0 | 92 | 736 | 563 | 375 | 313 |
17.0 | 80 | 679 | 519 | 346 | 289 |
18.0 | 70 | 627 | 479 | 319 | 266 |
19.0 | 61 | 580 | 444 | 296 | 247 |
20.0 | 54 | 537 | 411 | 273 | 228 |
21.0 | 47 | 497 | 380 | 254 | 211 |
22.0 | 42 | 461 | 352 | 235 | 196 |
23.0 | 37 | 427 | 326 | 217 | 182 |
24.0 | 33 | 395 | 302 | 201 | 167 |
Title | Type | Size | |
---|---|---|---|
F54-SQUARE-DIAGONAL-TRUSS_1 | application/pdf | 1 MB |
Additional information
Chord Material | |
---|---|
Endsocketmaterial | |
Bracing Material | |
Conical Spigot Material | |
Steelpinmaterial | |
Chord Dimension | |
Bracing Dimensions | |
Endsocket | |
Connectors Included | |
Pack Weight | |
Product Type | Junctions |
