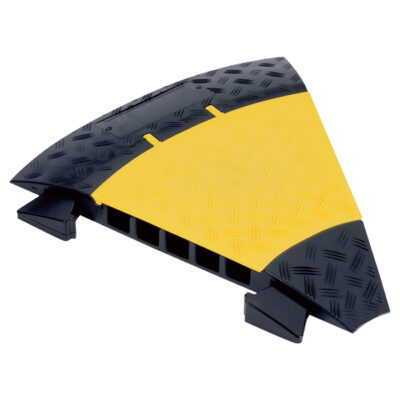

Midi 5 Channel Heavy Duty 45° Corner (Indent Only 3-5 Months)

SKU: SD-M85310

Sentinel

• 45° corner piece for Defender Midi 5-channel cable protection system
• Five channels (each 34 x 36 mm) for consistent cable routing
• Made from unbreakable, high-strength TPU (thermoplastic polyurethane)
• Patented self-cleaning hinge and secure Easy Lock System
• Fire resistance class B2 (DIN 4102)
• Resistant to oils, acids, petrol, and solvents
• Operating temperature: approx. -30°C to +60°C
• Shore A hardness: 88 ± 4
• Modular connection system for stable multi-unit configurations
• Designed for heavy-duty use in demanding environments
• Indent only – lead time approx. 12–16 weeks from order

External Length (mm)

External Depth/Width (mm)

External Height (mm)

52

Finish (Raw/Black/White)

Yellow/Black

No. of Channels

5

Pack Weight (kg)

3.4

Product Type

Cable Covers

SKU: SD-M85310 Category: Brand:

Description

✔ HIGH TECH RAW MATERIAL
All Sentinel cable crossovers are made of extremely sturdy, unbreakable TPU (thermoplastic polyurethane), produced from recycled and new plastic materials. They feature a B2 fire resistance rating and are resistant to oil, acids and petrol. The operating temperature range is approximately -30°C to +60°C. The Shore A hardness range is 88 ± 4.

✔ PATENTED SELF CLEANING HINGE
All Sentinel cable crossovers are made of extremely sturdy, unbreakable TPU (thermoplastic polyurethane), produced from recycled and new plastic materials. They feature a B2 fire resistance rating and are resistant to oil, acids and petrol. The operating temperature range is approximately -30°C to +60°C. The Shore A hardness range is 88 ± 4.

✔ EASY LOCK SYSTEM
Sentinel cable protectors feature a very easy and efficient opening and locking system, allowing you to open and close the lid without tooling or special efforts. This exclusive feature also guarantees that the lid remains closed at all times, even when cars or trucks cross over it.

✔ EASY HANDLING
The heaviest Sentinel cable protection systems are equipped with transport handles (Defender XXL, Defender III and Defender Midi). The Defender Box provides safe and practical storage but also a logistically efficient solution for the transport of many protectors at once (euro-pallet dimensions).

✔ MODULAR SYSTEM
The Sentinel cable protection systems also offer high quality accessories to adapt your configuration to each new location, such as end ramps, 90° and 45° bends. Each cable protector has connectors and corresponding sockets that enable you to connect cable protectors in the same series endlessly with one another with maximum stability.

Please note these items are INDENT ONLY. Lead times are approximately 12-16 weeks from order.
