Straight Crowd Barrier

SKU: GT-CB-S100

Global Truss

• Heavy-duty aluminium construction: Strong yet lightweight for efficient handling

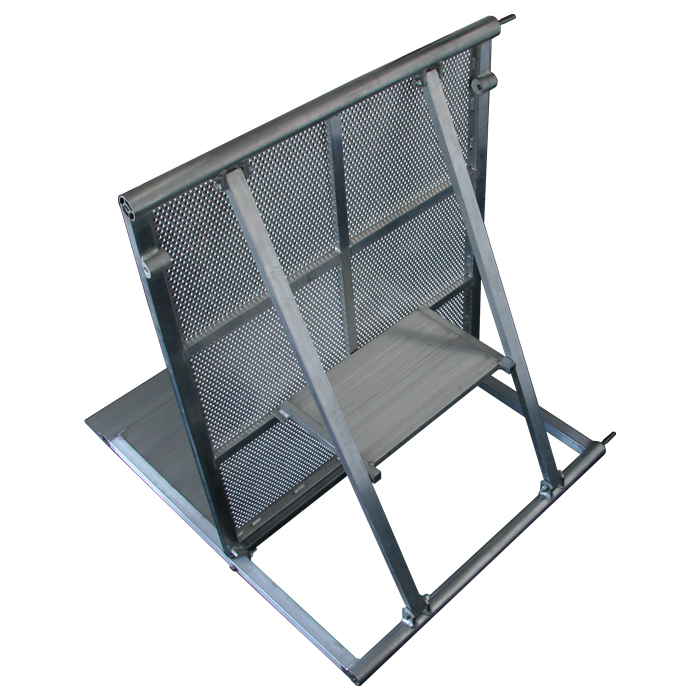

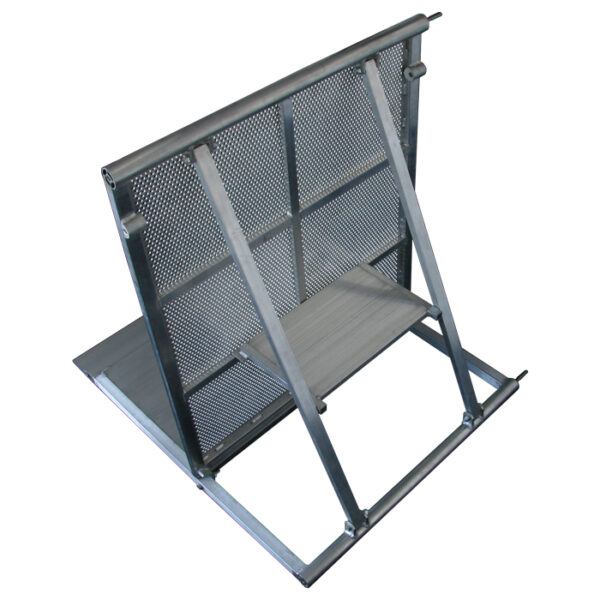

• Rear security step: Provides security personnel quick access to the crowd for emergency intervention

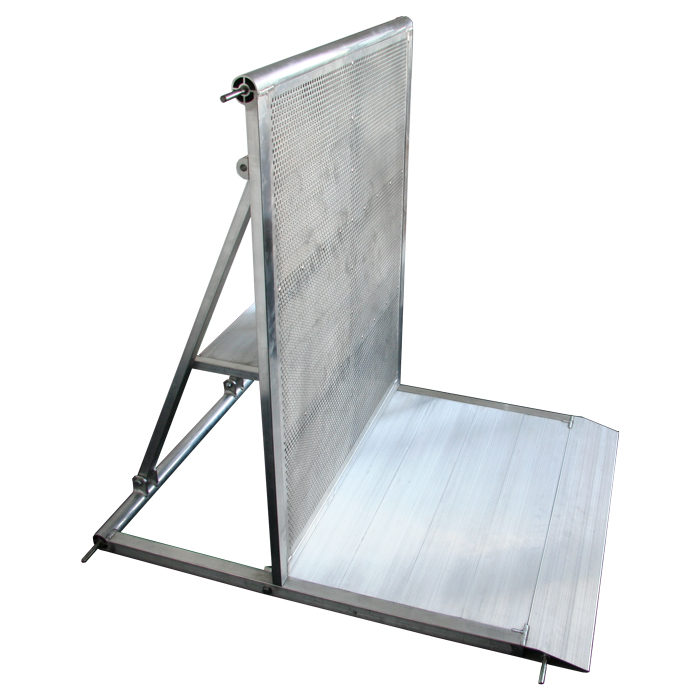

• Integrated steel footplate: Prevents tipping; stabilised further by the audience’s own weight

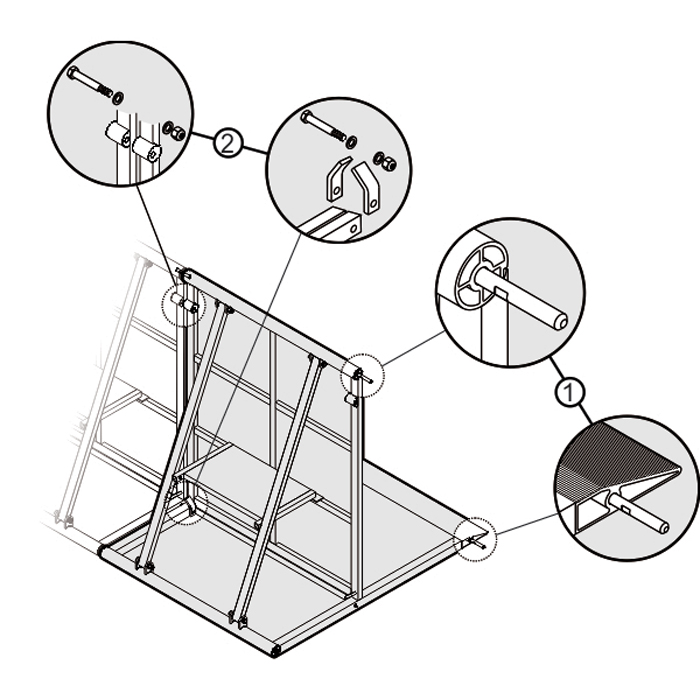

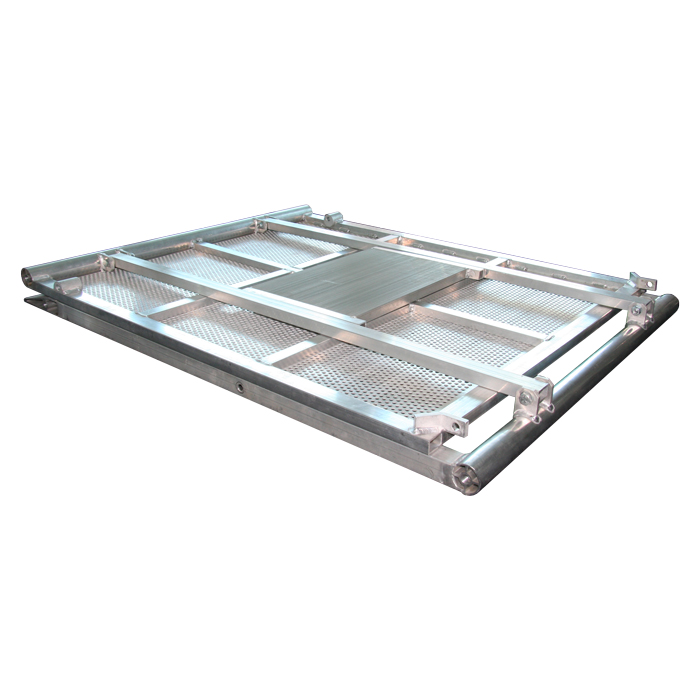

• Modular and foldable: Panels fold flat and bolt together for easy transport, storage, and flexible configurations
• Certified for Australian use: Fully engineered to comply with local event safety regulations
• Compatible with additional units including corner panels, cable access barriers, and gate modules

External Length (mm)

External Depth/Width (mm)

External Height (mm)

100

Finish

Raw

Truss Style (mm)



Pack Length (m)

1015

Pack Depth (m)

110

Pack Height (m)

1280

Pack Weight (kg)

40.5

Net Weight (kg)

39

Product Type

Barrier

Bracing Dimensions (mm)



Chord Dimensions



SKU: GT-CB-S100 Categories: , Brand:

Description

Known variously as a crowd barrier, punter barrier, security barrier, stage barrier, or front-of-house barrier, this equipment is essential for crowd control and performer protection at live events. The Straight Crowd Barrier is specifically designed to create a secure front-of-stage safety zone, helping prevent crowd surges, enabling fast access for security teams, and deterring unwanted stage invasions.

Each panel features a rear step to allow security personnel to reach over and assist patrons quickly and safely. These barriers also help segment large audiences into bays, a critical function at festivals and large-scale concerts.

The Global Truss aluminium barrier system is a proven design, originally developed for a major European production company nearly two decades ago and now trusted worldwide—including across Australia. These barriers fold flat for transport, bolt together to form a continuous wall, and include a footplate that uses the audience’s own weight for stability. Best of all, the system carries engineering certification for use in Australia.

TECHNICAL SPECIFICATIONS
MaterialEN AW 6082 T6 Alloy Plate and Tube
Barrier ConnectorM12 x 120 Zinc Plated 8.8 Grade Bolt, Nut & Washer
Locating Pin11.5mmØ 118mmL C45 Steel
FinishMilled
Weight38.0kg
