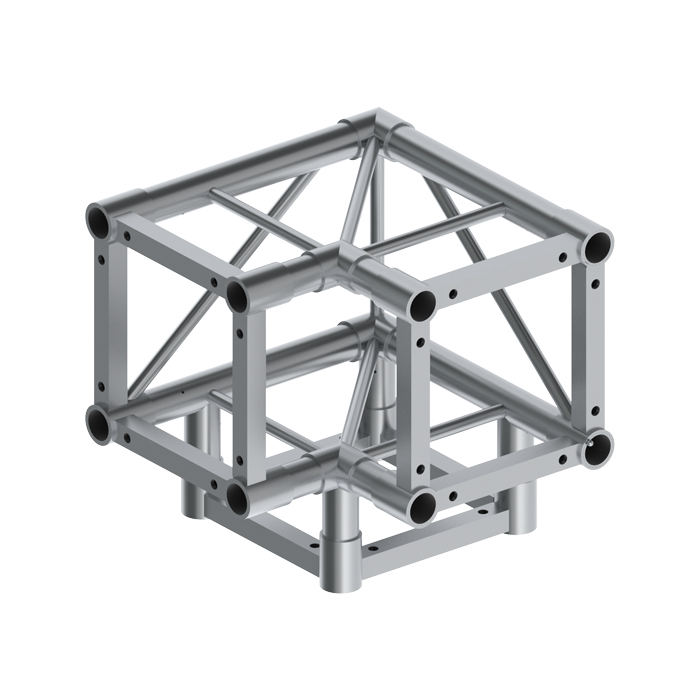

A34 Square Truss 3 Way 90° Corner to Vertical Junction (including bolts & spigots sets)
SKU: GT-A34J30A34 Square Truss is a bolt-together truss measuring 350mmx 350mm OD. This truss is a great “all-rounder” that can be used in many applications such as schools, theatres, touring, exhibitions, corporate AV etc. With diagonal braces on two faces and horizontal braces on the other two, A34 Square Truss has very good hanging space to size ratio, allowing plenty of unobstructed space to attach a fixture. It is a very popular truss design in Australia.
Product: GT-A34J30
Categories: A34 300mm Truss Junctions, Global Truss, A34 300mm Truss
Tags: 300mm Truss, box truss design, stage design, GT A34J30, Lighting Tube, global truss australia, theatre rigging, ground support truss system, stage lighting truss, Truss Circle, lighting truss dj, stage roof systems, Plus Truss, design quintessence, stage light trusses, A34-90° Corner to, Circus Truss, global truss catalog, titanav, stage roof, square truss, Truss Hinge, lighting truss parts, ground support truss, Alloy Truss, dj city, stage lighting mounting bars, 300 Triangular Truss, Custom Truss Box Truss, global truss distributor, titanav truss, fd34, global truss clamps, Tent Truss, lighting truss system price list, pre rig moving light truss, Aluminium Truss, dq, stage lighting rig, Pub Truss, Tri Truss, global truss f34 load data, truss coupler clamp, stage with roof, truss rigging, 50mm truss clamp, lighting truss with lights, ground support stage, Steel Truss, entertainment lighting, stage lighting truss design, ground support systems, lighting truss, Triangular Truss, global truss f44, truss lighting systems, truss stage roof, stage lighting truss systems, Clamps, lighting trusses, mini beam truss, Concert Truss, entertainment production, stage lighting trusses, stage scaffolding, truss, Flat Truss, global truss for sale, truss plate, prt truss, Couplers, phantos, AV Truss, entertainment rigging, stage truss design, truss roof system, global truss, Ladder Truss, global truss pinnex, truss structures, stage roof truss, globaltruss, DNA truss, pre-rig truss, Truss Grid, entertainment rigging australia, stage truss manufacturers, truss suppliers, stage truss, Theatre Truss, light truss, when is a rigger required, slick truss, Cosmic Truss, Stage clamps, production, Lighting Grid, entertainment rigging companies, stage truss systems, truss fd34, alutruss, Space Frame, lighting clamps, Scaffold Truss, layher beams, Prolyte, Truss Australia, rigger course, Lighting Bar, event rigging, stage trusses, fd34 truss, triangle truss, Touring Truss, lighting trigger clamps, scaffolding for stage, Bolt Truss, audio brisbane, rigging, 300 Box truss, Truss Tube, global truss accessories, store dj, pre rig, truss tower, PRT, lighting truss australia, rectangular truss
A34 Square Truss Load Table
DownloadDescription
SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|
3.0 | 1,045 | 1,223 |
4.0 | 1,045 | 776 |
5.0 | 1,045 | 491 |
6.0 | 1,010 | 337 |
7.0 | 852 | 244 |
8.0 | 732 | 183 |
9.0 | 637 | 142 |
10.0 | 560 | 112 |
11.0 | 495 | 90 |
12.0 | 440 | 73 |
13.0 | 393 | 60 |
14.0 | 351 | 50 |
15.0 | 313 | 42 |
Title | Type | Size | |
---|---|---|---|
A34-SQUARE-TRUSS_1 | application/pdf | 115 KB |
Additional information
Chord Material | |
---|---|
Endbracingmaterial | |
Diagonalbracingmaterial | |
Boltmaterial | |
Spigottubematerial | |
Endbracingrhs | |
Bolt | |
Bolt, nut & washer sets included | |
Spigots Included | |
External Length (mm) | |
External Depth (mm) | |
External Height (mm) | |
Pack Length | |
Pack Depth | |
Pack Height | |
Net weight of the product (kg) | |
Pack Weight | |
Cubic volume (m³) |
