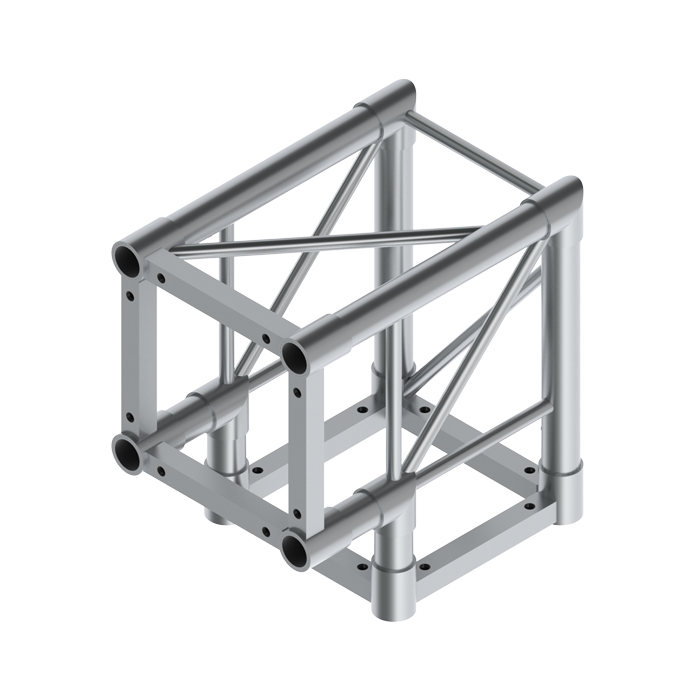

A34 Square Truss 90° Corner (including bolts & spigots sets)

Name: A34 Square Truss 90° Corner (including bolts &amp; spigots sets)
SKU: GT-A34J21
Availability: InStock

SKU: GT-A34J21

A34 Square Truss is a bolt-together truss measuring 350mmx 350mm OD. This truss is a great “all-rounder” that can be used in many applications such as schools, theatres, touring, exhibitions, corporate AV etc. With diagonal braces on two faces and horizontal braces on the other two, A34 Square Truss has very good hanging space to size ratio, allowing plenty of unobstructed space to attach a fixture. It is a very popular truss design in Australia.

Product: GT-A34J21 Categories: A34 300mm Truss Junctions, Global Truss, A34 300mm Truss Tags: truss tower, Touring Truss, lighting trigger clamps, stage roof systems, Bolt Truss, audio brisbane, rigging, 300 Box truss, Truss Tube, global truss accessories, store dj, stage roof, stage lighting truss, PRT, lighting truss australia, ground support truss, 300mm Truss, box truss design, stage design, 300 Triangular Truss, GT A34J21, Lighting Tube, global truss australia, theatre rigging, fd34, square truss, Truss Circle, lighting truss dj, pre rig moving light truss, Plus Truss, design quintessence, stage light trusses, Pub Truss, A34-2 Way, Circus Truss, global truss catalog, titanav, stage with roof, global truss clamps, Truss Hinge, lighting truss parts, ground support stage, Alloy Truss, dj city, stage lighting mounting bars, ground support systems, Custom Truss Box Truss, global truss distributor, titanav truss, truss stage roof, truss rigging, Tent Truss, lighting truss system price list, mini beam truss, Aluminium Truss, dq, stage lighting rig, stage scaffolding, lighting truss, Tri Truss, global truss f34 load data, truss coupler clamp, prt truss, stage lighting truss systems, 50mm truss clamp, lighting truss with lights, Steel Truss, entertainment lighting, stage lighting truss design, truss roof system, truss, Triangular Truss, global truss f44, truss lighting systems, stage roof truss, Clamps, lighting trusses, Concert Truss, entertainment production, stage lighting trusses, truss suppliers, global truss, Flat Truss, global truss for sale, truss plate, slick truss, Couplers, phantos, AV Truss, entertainment rigging, stage truss design, truss fd34, stage truss, Ladder Truss, global truss pinnex, truss structures, layher beams, globaltruss, DNA truss, pre-rig truss, Truss Grid, entertainment rigging australia, stage truss manufacturers, fd34 truss, alutruss, Theatre Truss, light truss, when is a rigger required, scaffolding for stage, Cosmic Truss, Stage clamps, production, Lighting Grid, entertainment rigging companies, stage truss systems, pre rig, triangle truss, Space Frame, lighting clamps, Scaffold Truss, rectangular truss, Prolyte, Truss Australia, rigger course, Lighting Bar, event rigging, stage trusses, ground support truss system

A34 Square Truss Load Table

Download

Description

SPAN (m)	CPL (kg)	UDL (kg/m)
3.0	1,045	1,223
4.0	1,045	776
5.0	1,045	491
6.0	1,010	337
7.0	852	244
8.0	732	183
9.0	637	142
10.0	560	112
11.0	495	90
12.0	440	73
13.0	393	60
14.0	351	50
15.0	313	42

	Title	Type	Size
	A34-SQUARE-TRUSS_1	application/pdf	115 KB

Additional information

Chord Material	EN AW 6082 T6
Endbracingmaterial	EN AW 6082 T6
Diagonalbracingmaterial	EN AW 6082 T6
Boltmaterial	8.8 Grade
Spigottubematerial	EN AW 6082 T6
Endbracingrhs	32mmØ x 32mmØ x 6mm
Bolt	4" x ½" Hexagonal
Bolt, nut & washer sets included	4 x ½ x 4 Bolts, Nuts & Washers
Spigots Included	4 x 42mmØ
External Length (mm)	505
External Depth (mm)	505
External Height (mm)	355
Pack Length	510
Pack Depth	510
Pack Height	375
Net weight of the product (kg)	10.3
Pack Weight	13
Cubic volume (m³)	0.0975
