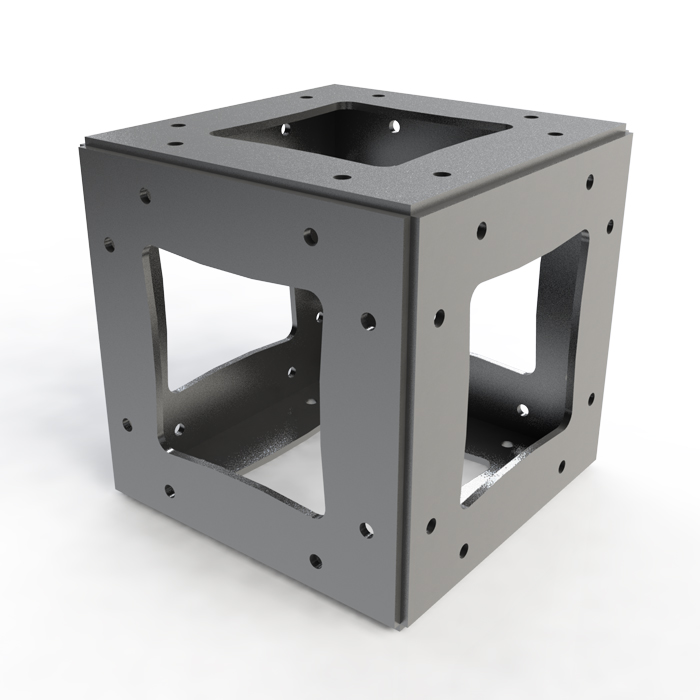

A34 Square Truss Cube Junction with Bolt & Nut Sets for 2 Faces

A34 Square Truss Cube Junction with Bolt & Nut Sets for 2 Faces

SKU: GT-A34JBOX

A34 Square Truss is a bolt-together truss measuring 350mmx 350mm OD. This truss is a great “all-rounder” that can be used in many applications such as schools, theatres, touring, exhibitions, corporate AV etc. With diagonal braces on two faces and horizontal braces on the other two, A34 Square Truss has very good hanging space to size ratio, allowing plenty of unobstructed space to attach a fixture. It is a very popular truss design in Australia.

Product: GT-A34JBOX Categories: A34 300mm Truss Junctions, Global Truss, A34 300mm Truss Tags: Cosmic Truss, DNA truss, pre-rig truss, truss fd34, Lighting Grid, entertainment rigging australia, stage truss manufacturers, layher beams, alutruss, Space Frame, light truss, when is a rigger required, 300 Box truss, Prolyte, Stage clamps, production, fd34 truss, Lighting Bar, entertainment rigging companies, stage truss systems, scaffolding for stage, triangle truss, Touring Truss, lighting clamps, Scaffold Truss, Bolt Truss, Truss Australia, rigger course, pre rig, Truss Tube, event rigging, stage trusses, rectangular truss, truss tower, PRT, lighting trigger clamps, 300mm Truss, audio brisbane, rigging, ground support truss system, Lighting Tube, global truss accessories, store dj, stage roof systems, stage lighting truss, Truss Circle, lighting truss australia, Plus Truss, box truss design, stage design, stage roof, Circus Truss, global truss australia, theatre rigging, ground support truss, square truss, Truss Hinge, lighting truss dj, 300 Triangular Truss, GT A34JBOX, Alloy Truss, design quintessence, stage light trusses, fd34, Custom Truss Box Truss, global truss catalog, titanav, pre rig moving light truss, global truss clamps, Tent Truss, lighting truss parts, Pub Truss, A34-34X A, Aluminium Truss, dj city, stage lighting mounting bars, stage with roof, Tri Truss, global truss distributor, titanav truss, ground support stage, truss rigging, lighting truss system price list, ground support systems, Steel Truss, dq, stage lighting rig, truss stage roof, lighting truss, Triangular Truss, global truss f34 load data, truss coupler clamp, mini beam truss, stage lighting truss systems, 50mm truss clamp, lighting truss with lights, stage scaffolding, Concert Truss, entertainment lighting, stage lighting truss design, prt truss, truss, Flat Truss, global truss f44, truss lighting systems, Clamps, lighting trusses, truss roof system, AV Truss, entertainment production, stage lighting trusses, stage roof truss, global truss, Ladder Truss, global truss for sale, truss plate, Cube, globaltruss, Couplers, phantos, truss suppliers, Truss Grid, entertainment rigging, stage truss design, slick truss, stage truss, Theatre Truss, global truss pinnex, truss structures

A34 Square Truss Load Table

Description

SPAN (m)	CPL (kg)	UDL (kg/m)
3.0	1,045	1,223
4.0	1,045	776
5.0	1,045	491
6.0	1,010	337
7.0	852	244
8.0	732	183
9.0	637	142
10.0	560	112
11.0	495	90
12.0	440	73
13.0	393	60
14.0	351	50
15.0	313	42

	Title	Type	Size
	A34-SQUARE-TRUSS_1	application/pdf	115 KB

Additional information

External Length (mm)	375
External Depth (mm)	375
External Height (mm)	375
Pack Length	385
Pack Depth	385
Pack Height	385
Cubic volume (m³)	0.0571
