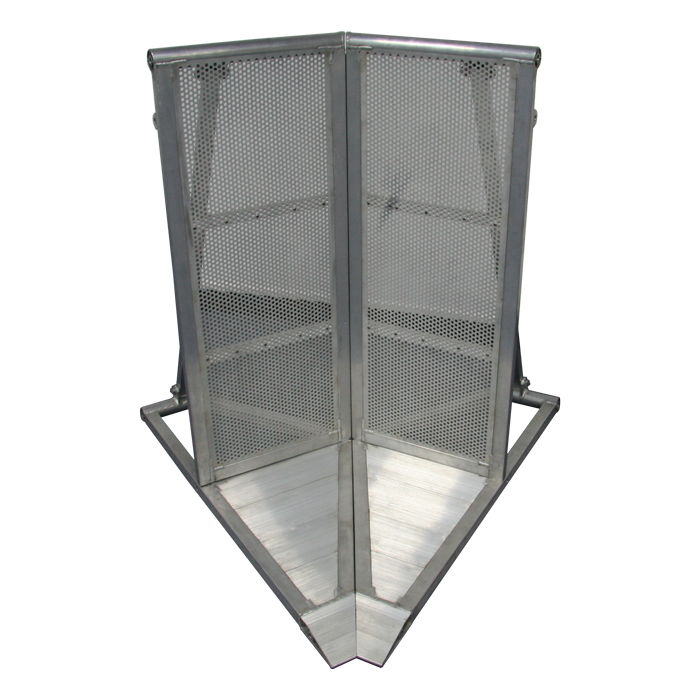

Crowd Barrier Corner Barrier (45°/135°)
SKU: GT-CB-C45/135

• Designed for 45° and 135° corner applications in barrier runs
• Compatible with Global Truss straight, gate, and cable access barriers
• Maintains structural strength and crowd safety at corners
• Durable aluminium construction with bolt-on connections
• Folds flat for efficient transport and storage
External Length (mm) | |
---|---|
External Depth/Width (mm) | |
External Height (mm) | |
Finish | Raw |
Load Capacity (kg) | |
Truss Style (mm) |
|
Chord Style (mm) |
|
Diameter (mm) | |
Pack Length (m) | 1300 |
Pack Depth (m) | 110 |
Pack Height (m) | 1050 |
Pack Weight (kg) | 33 |
Net Weight (kg) | |
Product Type | Barrier |
Bracing Dimensions (mm) |
|
Chord Dimensions |
|
Description
The Crowd Barrier Corner Barrier (45°/135°) offers a strong and adaptable solution for directing crowd control barriers around corners and bends. Designed to fit with Global Truss crowd barrier panels, these corner units maintain continuous safety and structural integrity at precise 45° or 135° angles. Ideal for complex venue layouts, festivals, and concerts, they enable effective audience flow management and support comprehensive event safety plans.
Also known by many names — including crowd barrier, punter barrier, security barrier, stage barrier, or front-of-house (FOH) barrier — this component is a reliable element of any professional event’s crowd control system.
TECHNICAL SPECIFICATIONS | |
---|---|
Material | EN AW 6082 T6 Alloy Plate and Tube |
Barrier Connector | M12 x 120 Zinc Plated 8.8 Grade Bolt, Nut & Washer |
Locating Pin | 11.5mmØ 118mmL C45 Steel |
Finish | Milled |
Weight | 38.0kg |
