Crowd Barrier Gate
SKU: GT-CB-S100-G

• Functions as part of a full crowd barrier (a.k.a. punter, stage, or FOH barrier) system
• Provides controlled access for crew or emergency services
• Compatible with Global Truss straight, corner, and cable access panels
• Secure latching mechanism ensures safety and stability
• Lightweight aluminium frame, foldable for transport and storage
External Length (mm) | |
---|---|
External Depth/Width (mm) | |
External Height (mm) | |
Finish | Raw |
Load Capacity (kg) | |
Truss Style (mm) |
|
Chord Style (mm) |
|
Diameter (mm) | |
Pack Length (m) | 1370 |
Pack Depth (m) | 110 |
Pack Height (m) | 1115 |
Pack Weight (kg) | 49 |
Net Weight (kg) | |
Product Type | Barrier |
Bracing Dimensions (mm) |
|
Chord Dimensions |
|
Description

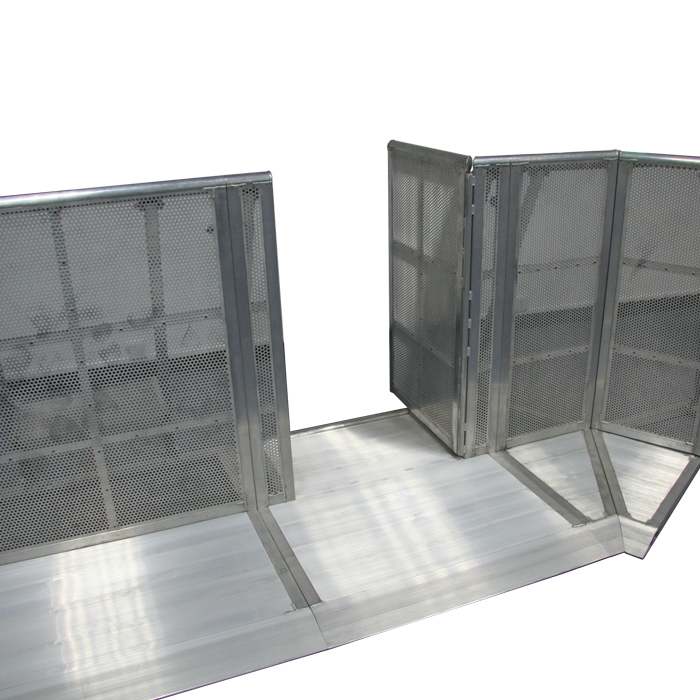

Also known as a crowd barrier, punter barrier, security barrier, stage barrier, or front-of-house (FOH) barrier, the Crowd Barrier Gate provides a controlled access point within your barrier system. It allows authorised personnel—such as crew, staff, or emergency responders—to move in and out of restricted areas without compromising crowd safety.
Designed to work with Global Truss straight, corner, and cable access panels, this gate features a secure locking mechanism and sturdy construction to maintain barrier integrity during live events, festivals, and public gatherings.
TECHNICAL SPECIFICATIONS | |
---|---|
Material | EN AW 6082 T6 Alloy Plate and Tube |
Barrier Connector | M12 x 120 Zinc Plated 8.8 Grade Bolt, Nut & Washer |
Locating Pin | 11.5mmØ 118mmL C45 Steel |
Finish | Milled |
Weight | 38.0kg |
