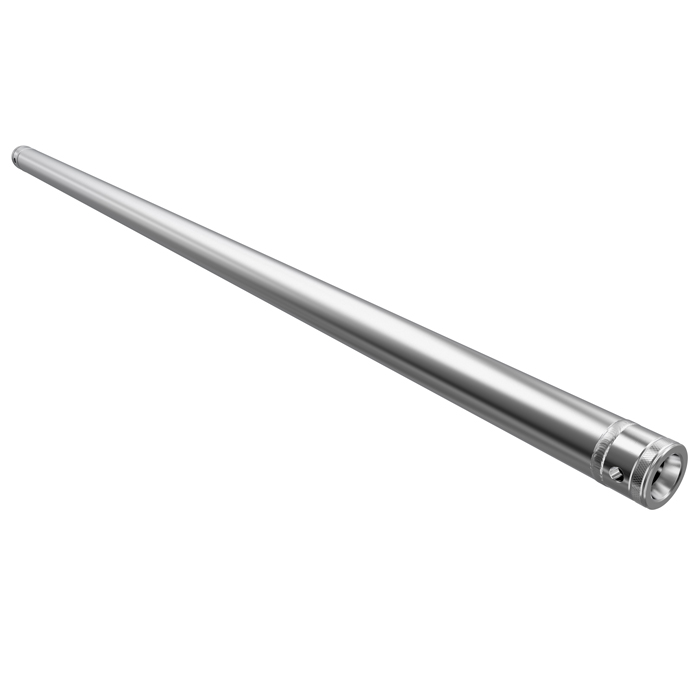

F01 1.5m 50mmØ Single Tube with Spigot, Pins & R-Clips
SKU: GT-F01L150Not truly Truss as such, F01 50mmø Tubes are suitable for building frames and 3D forms where modularity is required and can take advantage of the myriad of 50mmø accessories.
The F01 Tubes are available in straight lengths, curves, angles and the all-important 6 Way cube (“dice”) junction. Types of applications include sign frames, lighting suspension bars, bracing, suspension grids, lightweight 3D forms in retail display, theatres, schools, set-building, pubs and clubs, and building construction.
Custom components can be designed by the DQ team and made to order.
Product: GT-F01L150
Categories: F01 50mm Tubes Straight Lengths, F01 50mm Tubes, Global Truss
Tags: AV Truss, dq, stage lighting rig, Ladder Truss, global truss f34 load data, truss coupler clamp, globaltruss, 50mm truss clamp, lighting truss with lights, F31P, Truss Grid, entertainment lighting, stage lighting truss design, lighting truss, Theatre Truss, global truss f44, truss lighting systems, Cosmic Truss, Clamps, lighting trusses, Singular Tube, Lighting Grid, entertainment production, stage lighting trusses, truss, Space Frame, global truss for sale, truss plate, Prolyte, Couplers, phantos, Tubes, Lighting Bar, entertainment rigging, stage truss design, global truss, Touring Truss, global truss pinnex, truss structures, Bolt Truss, DNA truss, pre-rig truss, Scaffold Truss, Truss Tube, entertainment rigging australia, stage truss manufacturers, stage truss, PRT, light truss, when is a rigger required, 300mm Truss, Stage clamps, production, Scaff, Lighting Tube, entertainment rigging companies, stage truss systems, alutruss, Truss Circle, lighting clamps, 50mm Tube, Plus Truss, Truss Australia, rigger course, Scaffold, Circus Truss, event rigging, stage trusses, stage lighting truss, Truss Hinge, lighting trigger clamps, FD31, Alloy Truss, audio brisbane, rigging, Custom Truss Box Truss, global truss accessories, store dj, GT F01L190, square truss, Tent Truss, lighting truss australia, HD31, Aluminium Truss, box truss design, stage design, Tri Truss, global truss australia, theatre rigging, F01-50 1, global truss clamps, lighting truss dj, T-51-CC, Steel Truss, design quintessence, stage light trusses, Triangular Truss, global truss catalog, titanav, stage lighting truss systems, lighting truss parts, FO1, Concert Truss, dj city, stage lighting mounting bars, Flat Truss, global truss distributor, titanav truss, lighting truss system price list, F31
Global Truss Manual
DownloadF01 Single Tube Truss Information
DownloadF01 Truss Load Table & Engineering Report
DownloadDescription
SPAN (m) | CPL (kg) | UDL (kg/m) | SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|---|---|---|
Tubes with connection at any position | Single tube only | ||||
0.5 | 328 | 1,312 | 0.5 | 802 | 3,211 |
1.0 | 163 | 326 | 1.0 | 400 | 801 |
1.5 | 108 | 144 | 1.5 | 266 | 355 |
2.0 | 80 | 80 | 2.0 | 199 | 199 |
2.5 | 63 | 50 | 2.5 | 158 | 126 |
3.0 | 52 | 34 | 3.0 | 131 | 87 |
3.5 | 43 | 25 | 3.5 | 111 | 63 |
4.0 | 37 | 18 | 4.0 | 96 | 48 |
4.5 | 32 | 14 | 4.5 | 85 | 37 |
5.0 | 28 | 11 | 5.0 | 75 | 30 |
5.5 | 24 | 9 | |||
6.0 | 21 | 7 |
Title | Type | Size | |
---|---|---|---|
F01-TUBE_1 | application/pdf | 313 KB |
Additional information
Tube Material | |
---|---|
Endsocketmaterial | |
Conical Spigot Material | |
Steelpinmaterial | |
Tube Dimension | |
Connectors Included | |
External Length (mm) | |
External Depth (mm) | |
External Height (mm) | |
Pack Length | |
Pack Depth | |
Pack Height | |
Net weight of the product (kg) | |
Product Type | Linear |
