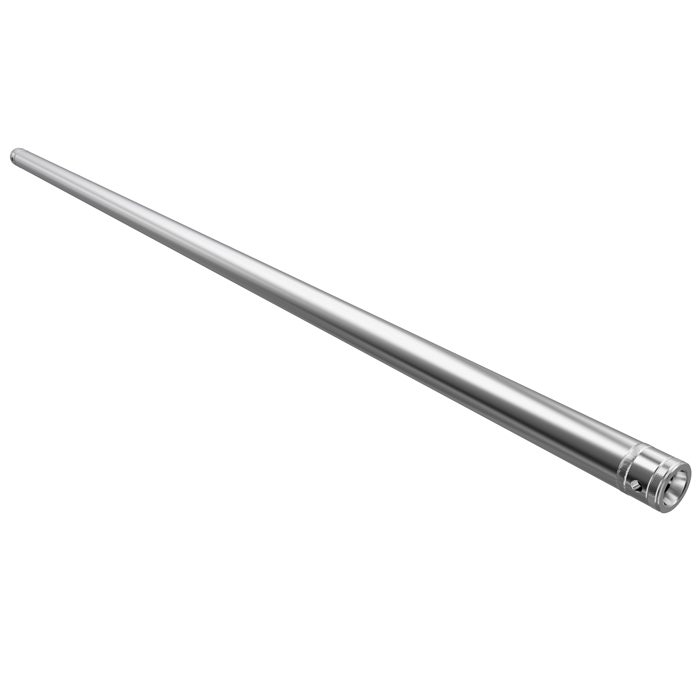

F01 2.0m 50mmØ Single Tube with Spigot, Pins & R-Clips
SKU: GT-F01L200Not truly Truss as such, F01 50mmø Tubes are suitable for building frames and 3D forms where modularity is required and can take advantage of the myriad of 50mmø accessories.
The F01 Tubes are available in straight lengths, curves, angles and the all-important 6 Way cube (“dice”) junction. Types of applications include sign frames, lighting suspension bars, bracing, suspension grids, lightweight 3D forms in retail display, theatres, schools, set-building, pubs and clubs, and building construction.
Custom components can be designed by the DQ team and made to order.
Product: GT-F01L200
Categories: F01 50mm Tubes Straight Lengths, F01 50mm Tubes, Global Truss
Tags: Tri Truss, global truss accessories, store dj, global truss clamps, lighting truss australia, HD31, Steel Truss, box truss design, stage design, Triangular Truss, global truss australia, theatre rigging, GT F01L200, stage lighting truss systems, lighting truss dj, T-51-CC, Concert Truss, design quintessence, stage light trusses, Flat Truss, global truss catalog, titanav, lighting truss parts, FO1, AV Truss, dj city, stage lighting mounting bars, Ladder Truss, global truss distributor, titanav truss, globaltruss, lighting truss system price list, F31, Truss Grid, dq, stage lighting rig, lighting truss, Theatre Truss, global truss f34 load data, truss coupler clamp, Cosmic Truss, 50mm truss clamp, lighting truss with lights, F31P, Lighting Grid, entertainment lighting, stage lighting truss design, truss, Space Frame, global truss f44, truss lighting systems, Prolyte, Clamps, lighting trusses, Singular Tube, Lighting Bar, entertainment production, stage lighting trusses, global truss, Touring Truss, global truss for sale, truss plate, Bolt Truss, Couplers, phantos, Tubes, Truss Tube, entertainment rigging, stage truss design, stage truss, PRT, global truss pinnex, truss structures, 300mm Truss, DNA truss, pre-rig truss, Scaffold Truss, Lighting Tube, entertainment rigging australia, stage truss manufacturers, alutruss, Truss Circle, light truss, when is a rigger required, Plus Truss, Stage clamps, production, Scaff, Circus Truss, entertainment rigging companies, stage truss systems, F01-0m, stage lighting truss, Truss Hinge, lighting clamps, 50mm Tube, Alloy Truss, Truss Australia, rigger course, Scaffold, Custom Truss Box Truss, event rigging, stage trusses, square truss, Tent Truss, lighting trigger clamps, FD31, Aluminium Truss, audio brisbane, rigging
Global Truss Manual
DownloadF01 Single Tube Truss Information
DownloadF01 Truss Load Table & Engineering Report
DownloadDescription
SPAN (m) | CPL (kg) | UDL (kg/m) | SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|---|---|---|
Tubes with connection at any position | Single tube only | ||||
0.5 | 328 | 1,312 | 0.5 | 802 | 3,211 |
1.0 | 163 | 326 | 1.0 | 400 | 801 |
1.5 | 108 | 144 | 1.5 | 266 | 355 |
2.0 | 80 | 80 | 2.0 | 199 | 199 |
2.5 | 63 | 50 | 2.5 | 158 | 126 |
3.0 | 52 | 34 | 3.0 | 131 | 87 |
3.5 | 43 | 25 | 3.5 | 111 | 63 |
4.0 | 37 | 18 | 4.0 | 96 | 48 |
4.5 | 32 | 14 | 4.5 | 85 | 37 |
5.0 | 28 | 11 | 5.0 | 75 | 30 |
5.5 | 24 | 9 | |||
6.0 | 21 | 7 |
Title | Type | Size | |
---|---|---|---|
F01-TUBE_1 | application/pdf | 313 KB |
Additional information
Tube Material | |
---|---|
Endsocketmaterial | |
Conical Spigot Material | |
Steelpinmaterial | |
Tube Dimension | |
Connectors Included | |
External Length (mm) | |
External Depth (mm) | |
External Height (mm) | |
Pack Length | |
Pack Depth | |
Pack Height | |
Net weight of the product (kg) | |
Pack Weight | |
Product Type | Linear |
