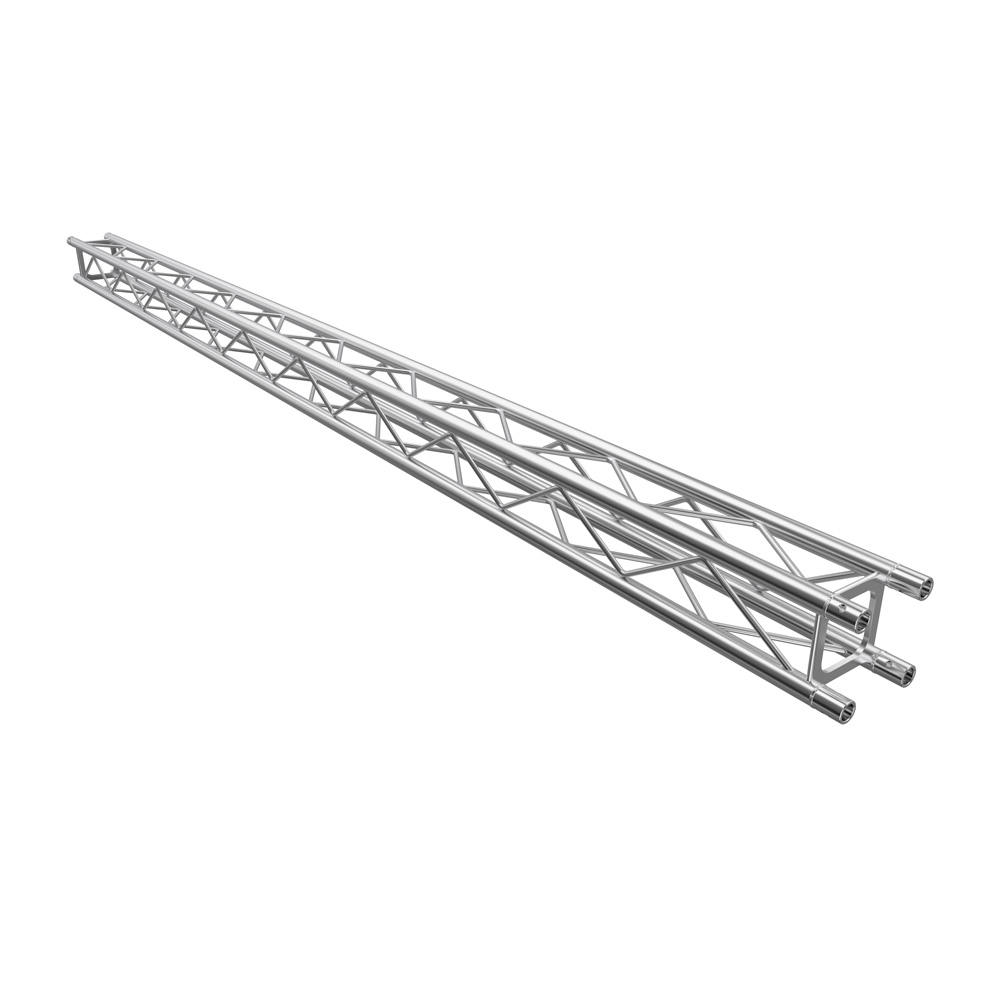

F14 Square 2.0m Linear Truss with Spigots, Pins & R-Clips
SKU: GT-F14L200F14 Tiny Truss is the smallest of the Global Truss family at only 100mm x 100mm with 20mmø chords.
Predominantly used for decorative purposes such as retail displays, museum exhibits, and wedding decoration displays, the “scaled-down” F14 Truss is dainty in appearance whilst still fulfilling a very light duty structural purpose. The square truss is available in straight lengths, circular components and a cube junction, enabling the construction of straight runs, rectangles, circles and arches.
In addition, tiny 20mmø couplers are available to attach items to the chords. Custom components can be designed by the DQ team and made to order.
Product: GT-F14L200
Categories: F14 Tiny Truss, F14 Tiny Truss Straight Lengths, Global Truss
Tags: box truss design, stage design, Plus Truss, Circus Truss, global truss australia, theatre rigging, GT F14L200, Truss Hinge, lighting truss dj, stage lighting truss, design quintessence, stage light trusses, Alloy Truss, Custom Truss Box Truss, global truss catalog, titanav, Tent Truss, lighting truss parts, box global truss, square truss, dj city, stage lighting mounting bars, Aluminium Truss, Tri Truss, global truss distributor, titanav truss, lighting truss system price list, box global, global truss clamps, dq, stage lighting rig, Tiny Truss, Steel Truss, Triangular Truss, global truss f34 load data, truss coupler clamp, 50mm truss clamp, lighting truss with lights, stage lighting truss systems, entertainment lighting, stage lighting truss design, Mini Box Truss, Concert Truss, Flat Truss, global truss f44, truss lighting systems, Clamps, lighting trusses, entertainment production, stage lighting trusses, Min Square Truss, AV Truss, Ladder Truss, global truss for sale, truss plate, Couplers, phantos, globaltruss, entertainment rigging, stage truss design, 100 Truss, Truss Grid, Theatre Truss, global truss pinnex, truss structures, lighting truss, DNA truss, pre-rig truss, Cosmic Truss, entertainment rigging australia, stage truss manufacturers, Box Truss 100 Mini, Lighting Grid, Space Frame, light truss, when is a rigger required, truss, Stage clamps, production, Prolyte, entertainment rigging companies, stage truss systems, Lighting Bar, Touring Truss, lighting clamps, global truss, Truss Australia, rigger course, Bolt Truss, event rigging, stage trusses, F14-0m, Truss Tube, PRT, lighting trigger clamps, stage truss, audio brisbane, rigging, 300mm Truss, global truss accessories, store dj, Lighting Tube, Truss Circle, lighting truss australia, alutruss
Global Truss Manual
DownloadF14 Tiny Square Truss Information Sheet
DownloadF14 Square Truss Load Table & TÜV Engineering Certificate
DownloadDescription
SPAN (m) | CPL (kg) | UDL (kg/m) |
---|---|---|
2.0 | 172 | 104 |
3.0 | 113 | 69 |
4.0 | 84 | 42 |
5.0 | 65 | 26 |
6.0 | 53 | 18 |
7.0 | 43 | 12 |
Title | Type | Size | |
---|---|---|---|
![]() |
F14-TINY-TRUSS_1 | application/pdf | 997 KB |
Additional information
Chord Material | |
---|---|
Endsocketmaterial | |
Bracing Material | |
Conical Spigot Material | |
Steelpinmaterial | |
Chord Dimension | |
Bracing Dimensions | |
Connectors Included | |
External Length (mm) | |
External Depth (mm) | |
External Height (mm) | |
Pack Length | |
Pack Depth | |
Pack Height | |
Net weight of the product (kg) | |
Pack Weight | |
Cubic volume (m³) | |
Product Type | Linear |
